TR1505 Tubing Rotator For Pile Foundation Construction With 8 - 15m Diameter

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: TR1505
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T
Detail Information
Model: TR1505 Drilling Diameter: 8-15m
Rotary Torque: 1500/975/600 Instantaneous 1800 KN.m Rotary Speed: 1.6/2.46/4.0 Rpm
Engine Model: ISUZU AA-6HK1XQP Weight: 7ton
High Light:

drilling equipment

,

foundation drilling equipment

,

foundation drilling


Product Description

Introduction to construction method



The casing rotator is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. It is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles ( underground obstructions ), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.

The successful research of this brand new process method has realized the possibilities for the construction workers to conduct the construction of casing pipe, displacement pile, and underground continuous wall, as well as the possibilities for the pipe-jacking and shield tunnel to pass through the various pile foundations without barriers, when the obstructions, such as the gravel and boulder formation, cave formation, thick quicksand stratum, strong necking down formation, various pile foundation and steel reinforced concrete structure, are not removed.

The construction method of casing rotator has successfully completed construction missions of more than 5000 projects at places of Singapore, Japan, Hongkong District, Shanghai, Hangzhou, Beijing and Tianjin. It certainly will play a bigger role in the future urban construction and other pile foundation construction fields.



The advantages of adopting the casing rotator for construction



1.  No noise, no vibration, and high safety;

2.  Without mud, clean working surface, good environmental friendliness, avoiding the possibility for mud to enter the concrete, high pile quality, enhancing the bond stress of concrete to the steel bar;

3. During construction drilling, the characteristics of stratum and rock can be directly distinguished;

4.  The drilling speed is fast and reaches about 14m/h for the general soil layer;

5. The drilling depth is large and reaches about 80m according to the situation of soil layer;

6.  The hole forming verticality is easy to master, which can be accurate to 1/500;

7. No hole collapse will be caused, and the hole forming quality is high.

8. The hole forming diameter is standard, with little filling factor. Being compared with other hole forming methods, it can save a lot of concrete usage;

9. The hole clearing is thorough and fast. The drilling mud at the hole bottom can be clear to about 3.0cm.



Technical parameters



TR1505
Working device Diameter of drill hole mm Φ800-Φ1500
Rotary torque KN.m 1500/975/600 Instantaneous 1800
Rotary speed rpm 1.6/2.46/4.0
Lower pressure of sleeve KN Max.360KN+Dead weight210KN
Pulling force of sleeve KN 2444 Instantaneous 2690
Pressure-pulling stroke mm 750
Weight ton 31+(selection and installation of track)7
Hydraulic power station Engine model   ISUZU AA-6HK1XQP
Engine Power Kw/rpm 183.9/2000
Full consumption of engine g/kwh 226.6(when the maximum power rate)
Weight ton 7
Control mode   Wired remote control

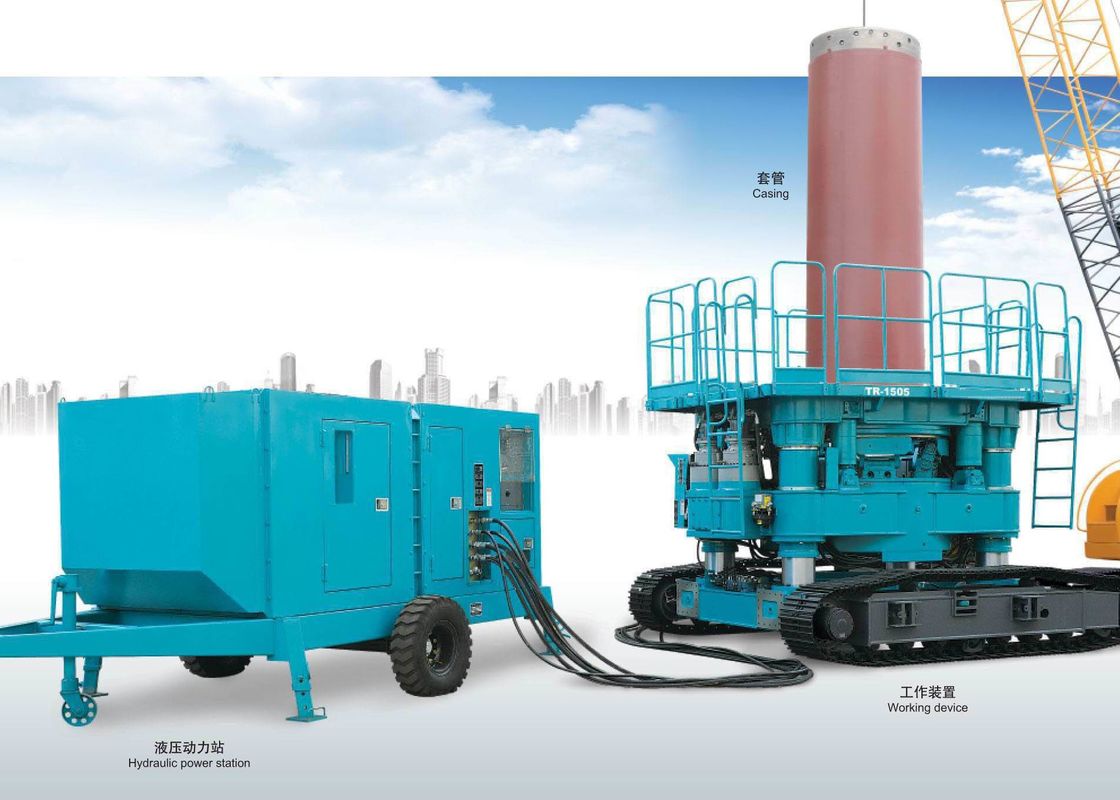

TR1505 Tubing Rotator For Pile Foundation Construction With 8 - 15m Diameter 0



Sinovo group as a leading Chinese foundation equipment supplier focus on foundation equipment technological innovonation, who own a strong Research and development team, and we are a professional high-tech enterprises that work on engineering machinery research and Specializing in construction machinery R & D,manufacturing, sales and services and to help customers to Construction Management.Relying on advantages of China construction machinery,Insist on the implementation of scientific and technological innovation, the use of international advanced manufacturing technology, top international and domestic parts, products reach the international advanced level.Adopt international advanced manufacturing technology and top a ccessories from international and domestic,So that the products have reached the international advanced level.



Sinovo Heavy Industry Manufacture is relying on innovation,The main theme is "Green energy", "Low carbon and environmental protection"for the development.towards a solid and strong pace in the enterprise development by leaps and bounds,To achieve a series of breakthrough in break foreign technology blockade ,core products nationalization, promote industry standardization sustainable Development of green products. Mature products has the TR1505,TR2005H, TR2005L, TR2605H, TR3505H casing rotator.



Sinovo Heavy Industry rely on rich intemnational experience of foundation engineering and complete solution of foundation equipment We will continue efforts to continue to create greater value for the community and customers,Strive to build a new situation for the construction machinery manufacturing.



Companies adhering to the development philosophy together with the users .To promote the development of China's construction machinery made outstanding contributions.
