Urban Subway Hydraulic Drilling Casing Rotator

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR2005H
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Exporting Standard
Delivery Time: 7-10 work days
Supply Ability: 30 set per month
Detail Information
Product Name: Casing Rotator Equipment Usage: Casing Drill
Type: Casing Drilling Transport Package: Wooden Case
Engine Model: Cummins QSM11-335 Weight: 8+(Walking Wheels Are Optional) 0.3 Ton
High Light:

Hydraulic Casing Rotator

,

Drilling Casing Rotator


Product Description

Good Quality Casing Rotator Equipment Max Diameter 2000 mm From China



Basic Information:



Casing rotator is a new type of drilling rig with full hydraulic power, transmission, electromechanical and hydraulic control.
This is a new, environmentally friendly and efficient drilling technology. In recent years, it has been widely used in urban subway, deep foundation pit retaining and occluding pile, waste pile (underground barrier) cleaning, high-speed railway, road and bridge, urban construction pile construction, reservoir dam reinforcement and other projects.
It is impossible for other machines to remove reinforced concrete piles by casing rotator. In this method, the casing is used to cover the pile for cutting operation. The strong rotary torque of the casing can twist the pile and take it out with a punching grab. According to the different construction conditions, it can be removed by segmented resection, overall extraction, heavy hammer breaking and multi claw smashing.





Advantages:


1. No noise, no vibration, no mud, high safety, good environmental protection;
2. The hole cleaning is complete and there will be no hole collapse. The hole diameter is standard and the filling coefficient is small. It can save the use of concrete and form pile
High quality;
3. During drilling, the stratum and rock characteristics can be identified directly, and the effective depth of bearing stratum can be determined accurately;
4. The drilling speed is fast, up to 14m / h for general soil layer;
5. The drilling depth is large, and the maximum operation depth can reach more than 100 meters according to the formation conditions;
6. The perpendicularity of hole forming is easy to master, and the perpendicularity can be accurate to 1 / 500.





Technical Parameter:



Working device

Diameter of drill hole mm Φ1000-Φ2000
  Rotary torque KN.m 2965/1752/990 Instantaneous 3391
  Rotary speed rpm 1.0/1.7/2.9
  Lower pressure of sleeve KN Max.600KN+Dead weight260KN
  Pulling force of sleeve KN 3760 Instantaneous 4300
  Pressure-pulling stroke mm 750
  Weight ton 45+(selection and installation of track)9
Hydraulic power station Engine model   Cummins QSM11-335
  Engine Power Kw/rpm 272/1800
  Full consumption of engine g/kwh 216(when the maximum power rate)
  Weight ton 8+(Walking wheels are optional) 0.3
  Control mode   Wired remote control

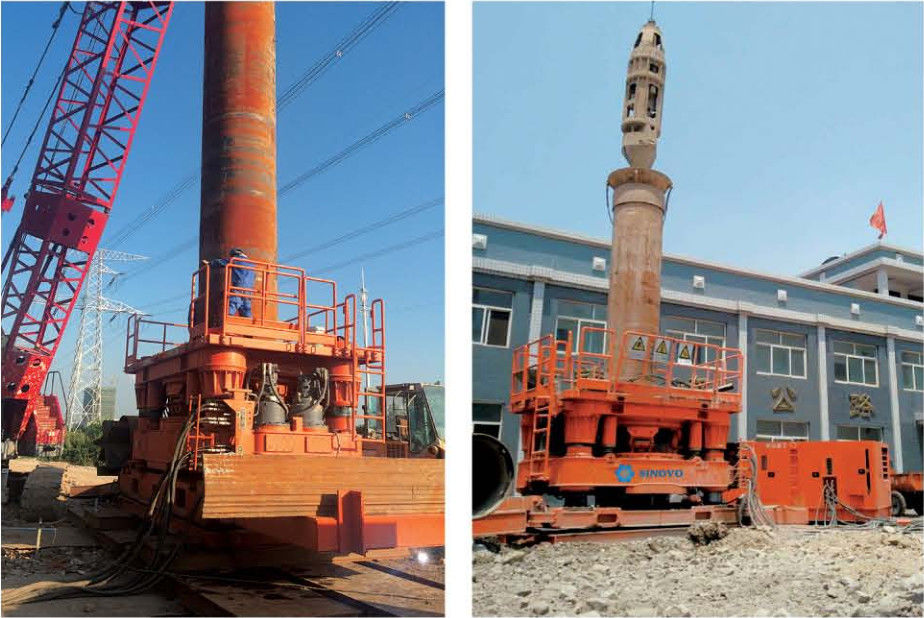

Urban Subway Hydraulic Drilling Casing Rotator 0

Urban Subway Hydraulic Drilling Casing Rotator 1
