Full Casing Bored 2000mm Diameter 1800Kw Piling Rotator

Basic Information
Place of Origin: China
Brand Name: SINOVO
Model Number: TR2005H
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 set per month
Detail Information
Certification: CE/GOST/ISO9001 Name: Full-Casing Method 2000mm Diameter Bored Piling Casing Rotator
Model: TR2005H Diameter: 1000-2000mm
Rotary Torque: 2965/1752/990 Instantaneous 3391 KN.m Rotary Speed: 1.0/1.7/2.9rpm
Engine Model: Cummins QSM11-335 Engine Power: 272/1800Kw/rpm
High Light:

2000mm piling rotator

,

2000mm full casing rotator

,

1800Kw piling rotator


Product Description

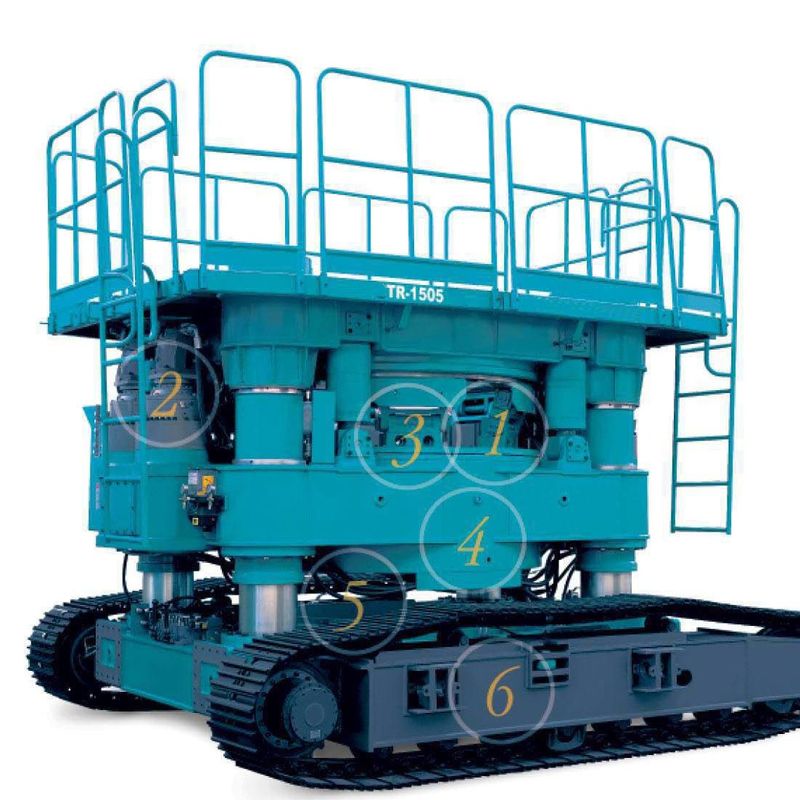

Introduction to construction method



The casing rotator is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. It is a new, environmentally-friendly and highly efficient drilling technology. In recent years, it is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles ( underground obstructions ), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.

The successful research of this brand new process method has realized the possibilities for the construction workers to conduct the construction of casing pipe, displacement pile, and underground continuous wall, as well as the possibilities for the pipe-jacking and shield tunnel to pass through the various pile foundations without barriers, when the obstructions, such as the gravel and boulder formation, cave formation, thick quicksand stratum, strong necking down formation, various pile foundation and steel reinforced concrete structure, are not removed.

The construction method of casing rotator has successfully completed construction missions of more than 5000 projects at places of Singapore, Japan, Hongkong District, Shanghai, Hangzhou, Beijing and Tianjin. It certainly will play a bigger role in the future urban construction and other pile foundation construction fields.



( 1 ) Foundation pile, continuous wall:

  • Foundation piles for high-speed rail, road and bridge and house building.
  • Articulation pile constructions which are required to be excavated, such as subway platforms, underground architectures, continuous walls
  • Water retaining wall of reservoir reinforcement.

( 2 ) Drilling gravels, boulders and karst caves

  • It is allowable to conduct the foundation pile construction at mountain lands with gravel and boulder formations.
  • It is allowable to conduct operation and cast the foundation piles at he thick quicksand formation and necking down stratum or the filling layer.
  • Conduct rock-socketed drilling to the rock stratum, cast the foundation pile.

( 3 ) Clear the underground obstructions

  • During the urban construction and bridge rebuilding, the obstructions such as the steel reinforced concrete pile, steel pipe pile, H steel pile, pc pile and wood pile can be cleared directly, and cast the foundation pile on the spot.

( 4 ) Cut the rock stratum

  • Conduct the rock-socketed drilling to the cast-in-place piles.
  • Drill through-holes on the rock bed (shafts and ventilation holes)

( 5 ) Deep excavation

  • Conduct the in-place casting or steel pipe pile inserting for the deep foundation improvement.
  • Excavate deep wells for construction use in the constructions of reservoir and tunnel.



Technical parameters



TR2005H
Working device Diameter of drill hole mm Φ1000-Φ2000
Rotary torque KN.m 2965/1752/990 Instantaneous 3391
Rotary speed rpm 1.0/1.7/2.9
Lower pressure of sleeve KN Max.600KN+Dead weight260KN
Pulling force of sleeve KN 3760 Instantaneous 4300
Pressure-pulling stroke mm 750
Weight ton 45+(selection and installation of track)9

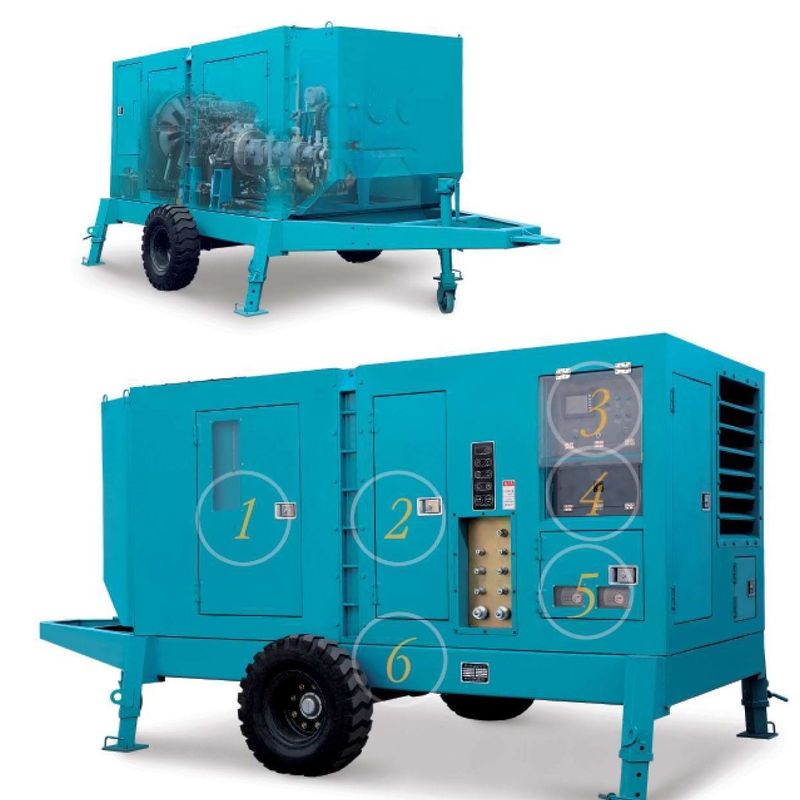

Hydraulic power station Engine model   Cummins QSM11-335
Engine Power Kw/rpm 272/1800
Full consumption of engine g/kwh 216(when the maximum power rate)
Weight ton 8+(Walking wheels are optional) 0.3
Control mode   Wired remote control



Packaging & Delivery
Packaging Details
Standard packing or as to clients requirements
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated
