TR1305L Hydraulic Casing Rotator For Urban Subway Construction

Basic Information
Place of Origin: China
Brand Name: SINOVO
Model Number: TR1305L
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 set per month
Detail Information
Certification: CE/GOST/ISO9001 Name: TR1305L Hydraulic Casing Rotator For Urban Subway Construction
Model: TR1305L Max. Casing Diameter: 1300mm
Torque: 1770/1050/590KN·M Engine Model: Y2-280M-4
Engine Power: 2*90/1480Kw/rpm Weight: 4ton
High Light:

Hydraulic Casing Rotator

,

Casing Rotator Hydraulic

,

Urban Subway Construction Casing Rotator


Product Description



TR1305L Hydraulic Casing Rotator For Urban Subway Construction



Introduction to construction method


The TR1305L hydraulic casing rotator is a new type drill with the integration of the full hydraulic power and transmission, and the combination control of machine, power and fluid. TR1305L hydraulic casing rotator is a new, environmentally-friendly and highly efficient drilling technology. In recent years, TR1305L hydraulic casing rotator is widely adopted in the projects such as the constructions of urban subway, articulation pile of deep foundation pit enclosure, clearance of waste piles ( underground obstructions ), high-speed rail, road and bridge, and urban construction piles, as well as the reinforcement of reservoir dam.
The successful research of this brand new process method has realized the possibilities for the construction workers to conduct the construction of casing pipe, displacement pile, and underground continuous wall, as well as the possibilities for the pipe-jacking and shield tunnel to pass through the various pile foundations without barriers, when the obstructions, such as the gravel and boulder formation, cave formation, thick quicksand stratum, strong necking down formation, various pile foundation and steel reinforced concrete structure, are not removed.
The construction method of casing rotator has successfully completed construction missions of more than 5000 projects at places of Singapore, Japan, Hongkong District, Shanghai, Hangzhou, Beijing and Tianjin. It certainly will play a bigger role in the future urban construction and other pile foundation construction fields.







Technical parameters



TR1305L
Working device Diameter of drill hole mm Φ600-Φ1300
Rotary torque KN.m 1770/1050/590
Rotary speed rpm 1.5/2.6/4.5
Lower pressure of sleeve KN Max.360KN+Dead weight190KN
Pulling force of sleeve KN 2690
Pressure-pulling stroke mm 500
Weight ton 25
Hydraulic power station Engine model   Y2-280M-4
Engine Power Kw/rpm 2*90/1480
Weight ton 4
Control mode   Wired remote control




The advantages of adopting the R1305L hydraulic casing rotator for construction


1. No noise, no vibration, and high safety;
2. Without mud, clean working surface, good environmental friendliness, avoiding the possibility for mud to enter the concrete, high pile quality, enhancing the bond stress of concrete to the steel bar;
3. During construction drilling, the characteristics of stratum and rock can be directly distinguished;
4. The drilling speed is fast and reaches about 14m/h for the general soil layer;
5. The drilling depth is large and reaches about 80m according to the situation of soil layer;
6. The hole forming verticality is easy to master, which can be accurate to 1/500;
7. No hole collapse will be caused, and the hole forming quality is high.
8. The hole forming diameter is standard, with little filling factor. Being compared with other hole forming methods, it can save a lot of concrete usage;
9. The hole clearing is thorough and fast. The drilling mud at the hole bottom can be clear to about 3.0cm.



Packaging & Delivery
Packaging Details
Standard packing or as to clients requirements
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 30 To be negotiated

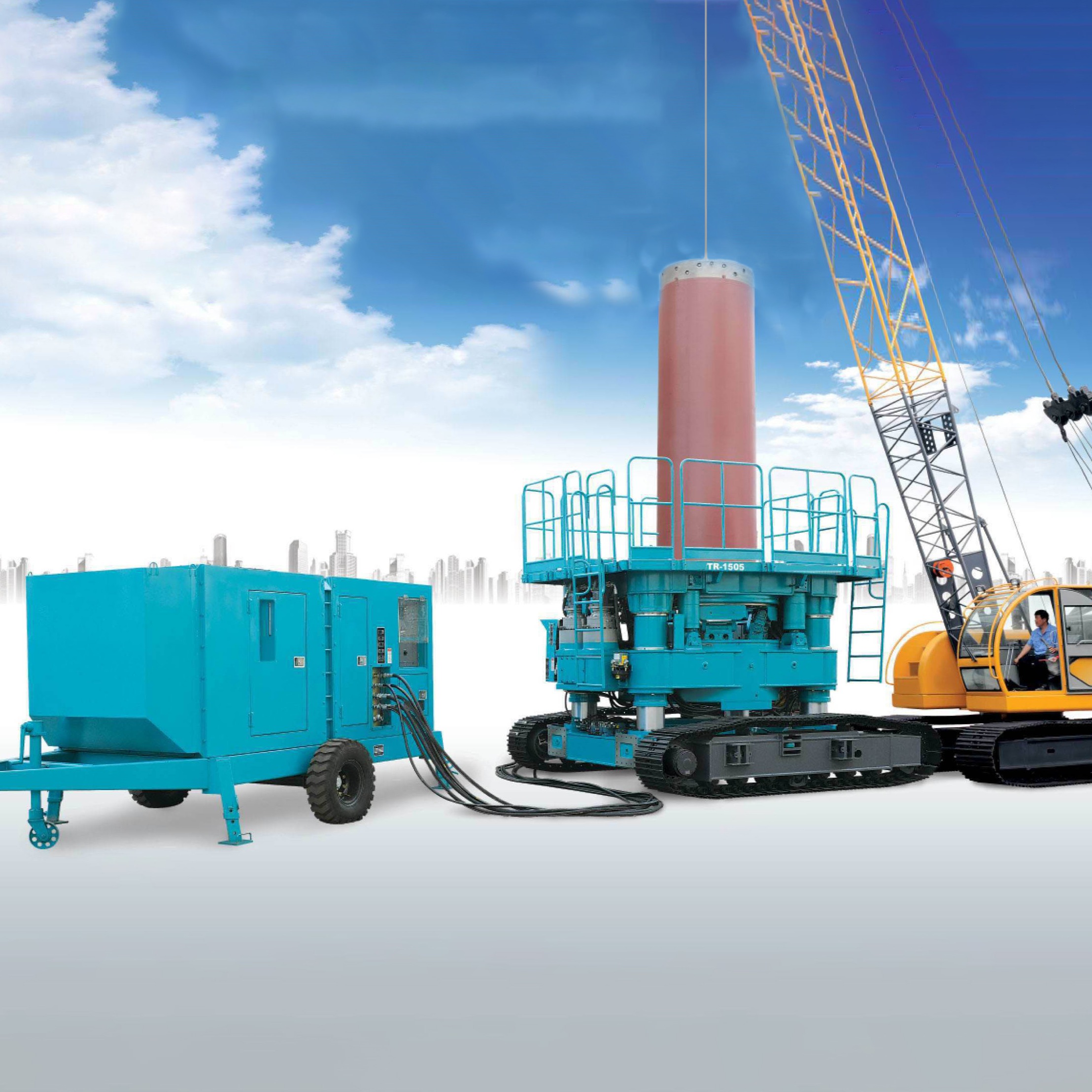

TR1305L Hydraulic Casing Rotator For Urban Subway Construction 0
