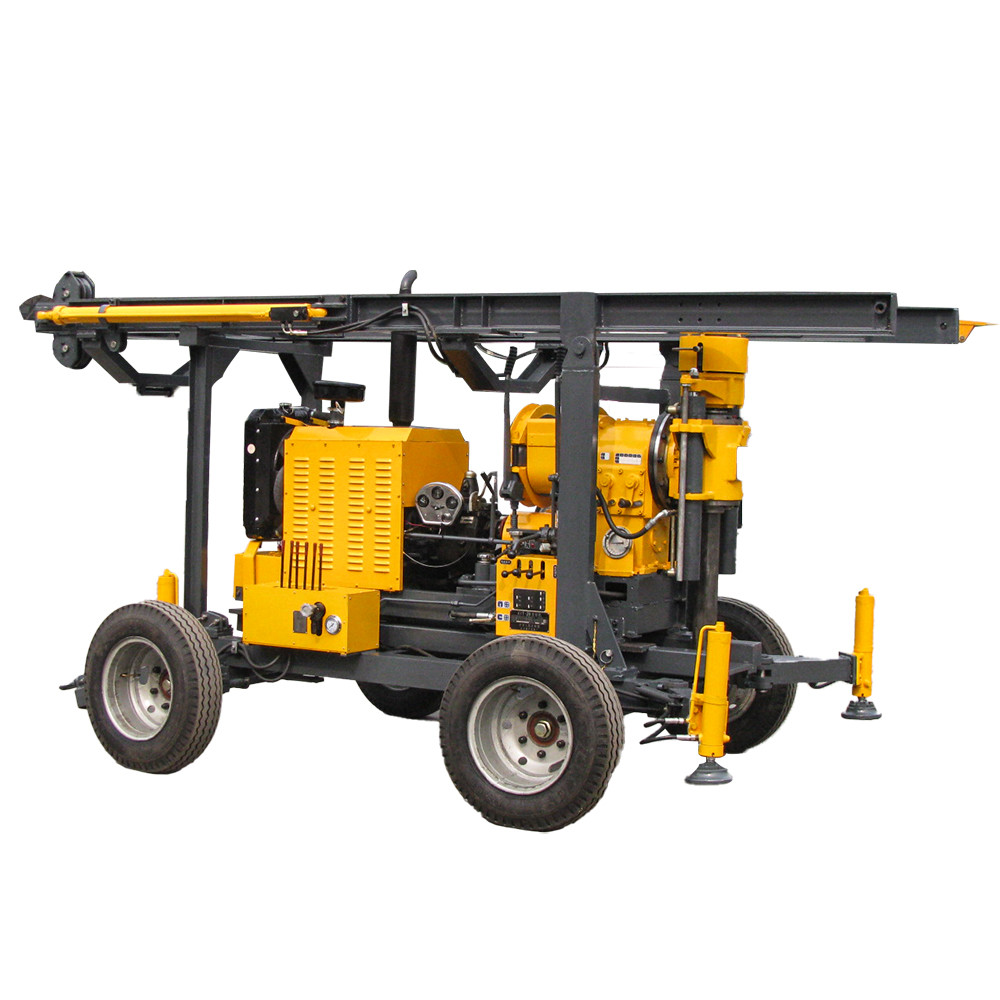

Drilling Depth 280m Diamond Core Rig XYT- 280 Trailer Type

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: XYT-280
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 per month
Detail Information
Name: XYT-280 Trailer Type Core Drilling Rig Model: XYT-280
Max Drilling Depth: 280m Drilling Diameter: 60-380mm
Rod Diameter: 50mm Overall Dimension: 5500x2200x2350mm
Maximum Output Torque: 1600Nm Rig Weight: 3320kg
High Light:

spindle stroke diamond core rig

,

280m diamond core rig

,

280m trailer drilling rig


Product Description

Diamond Core Rig Drilling Depth 280mm XYT- 280 Trailer Type Core Drilling Rig





Sinovo Group is mainly engaged in drilling equipment such as water well drilling rig, geological exploration drilling rig, portable sampling drilling rig, soil sampling drilling rig and metal mine exploration drilling rig. XYT-280 trailer type core drilling rig is mainly applicable to geological survey and exploration, foundation exploration of roads and high-rise buildings, inspection holes of various concrete structures, river dams, drilling and direct grouting of subgrade grouting holes, civil water wells and ground temperature central air conditioning, etc.





Technical parameter:



  Unit XYT-280
Drilling depth m 280
Drilling diameter mm 60-380
Rod diameter mm 50
Drilling angle ° 70-90
Overall dimension mm 5500x2200x2350
Rig weight kg 3320
Skid
Rotation unit
Spindle speed
Co-rotation r/min 93,207,306,399,680,888
Reverse rotation r/min 70, 155
Spindle stroke mm 510
Spindle pulling force KN 49
Spindle feeding force KN 29
Maximum output torque N.m 1600
Hoist
Lifting speed m/s 0.34,0.75,1.10
Lifting capacity KN 20
Cable diameter mm 12
Drum diameter mm 170
Brake diameter mm 296
Brake band width mm 60
Frame moving device
Frame moving stroke mm 410
Distance away from hole mm 250
Hydraulic oil pump
Type   YBC12-125 (left)
Rated flow L/min 18
Rated pressure Mpa 10
Rated rotation speed r/min 2500
Power unit
Diesel engine
Type   L28
Rated power KW 20
Rated speed r/min 2200





Main Features:



1. XYT-280 trailer type core drilling rig has oil pressure feeding mechanism to improve drilling efficiency.

2. XYT-280 trailer type core drilling rig is equipped with a hole bottom pressure gauge to indicate the pressure, so as to master the situation in the hole.

3. The XYT-280 trailer type core drilling rig is equipped with wheel traveling mechanism and hydraulic cylinder strut, which is convenient for the relocation of the whole machine and the horizontal adjustment of the drilling rig.

4. The drilling rig is equipped with a ball clamping mechanism to replace the chuck, which can reverse the rod without stopping, with high working efficiency, convenient, safe and reliable operation.

5. The lifting and lowering towers are operated hydraulically, which is convenient and reliable;

6. The XYT-280 trailer type core drilling rig has high optimal speed and can meet various requirements for small-diameter diamond drilling, large-diameter cemented carbide drilling and various engineering holes drilling.

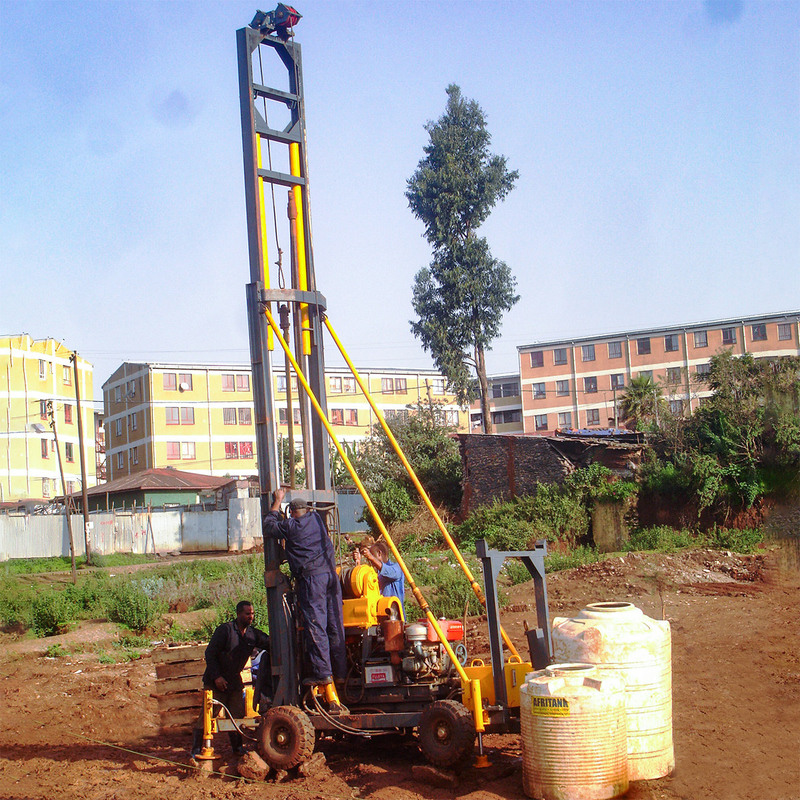

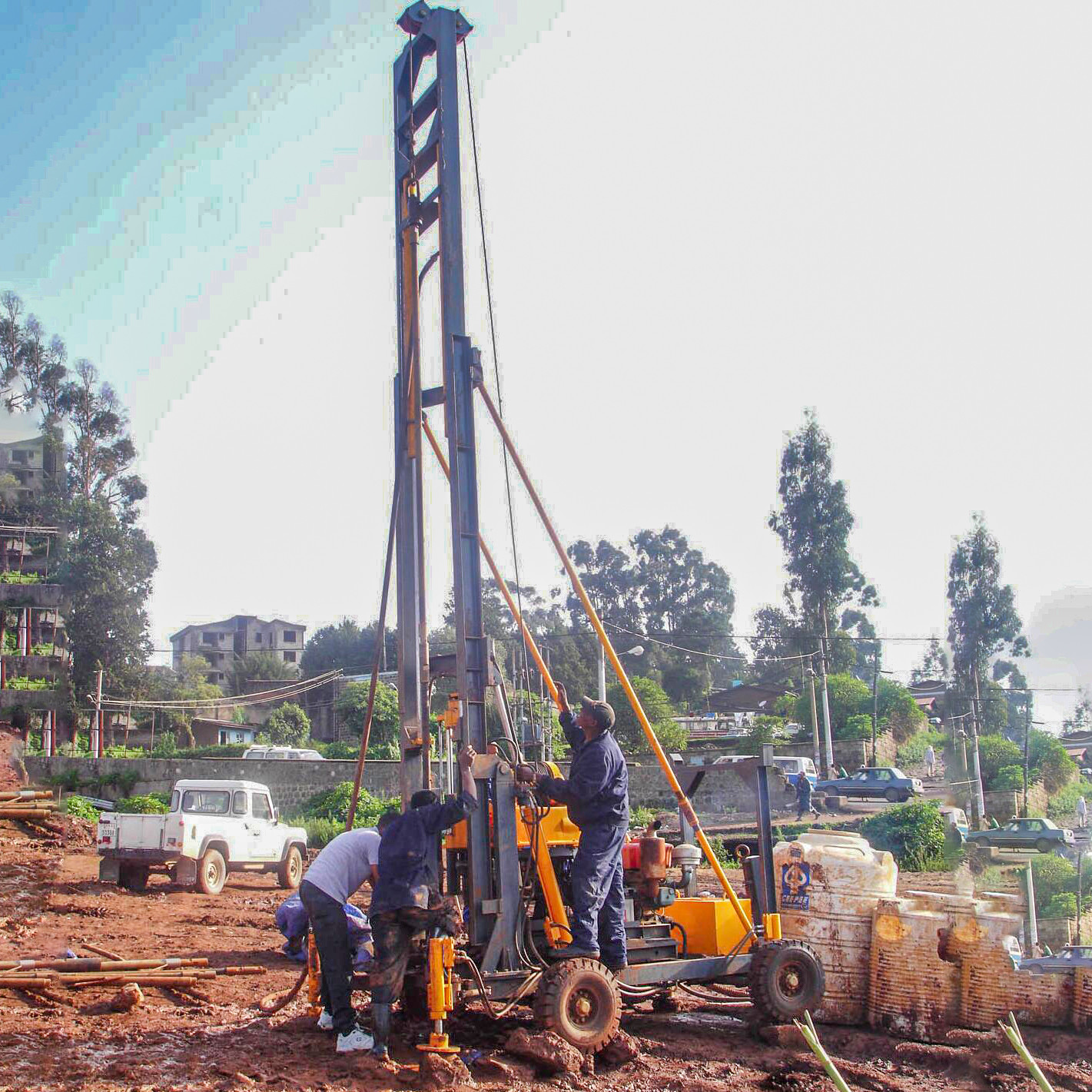

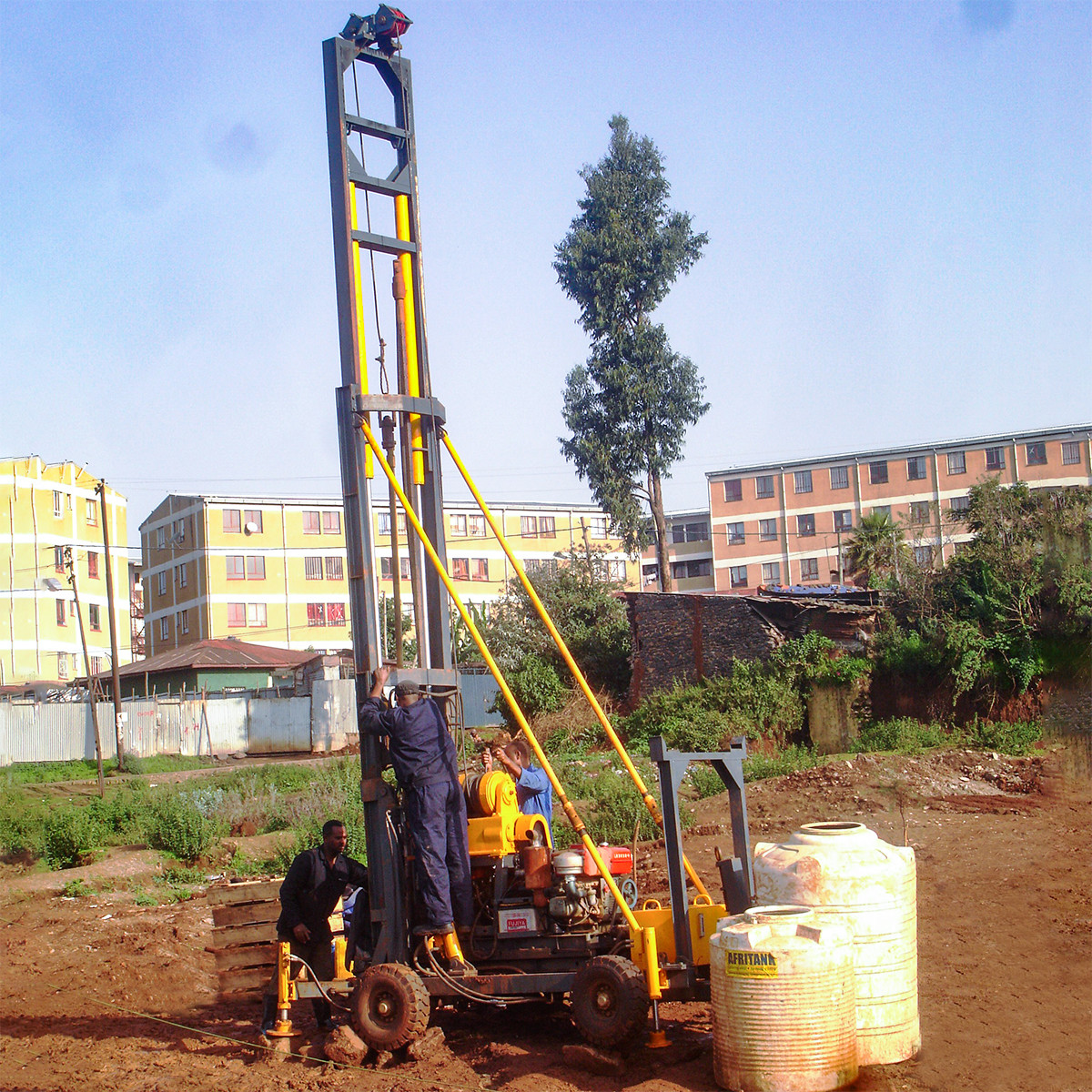

Drilling Depth 280m Diamond Core Rig XYT- 280 Trailer Type 0Drilling Depth 280m Diamond Core Rig XYT- 280 Trailer Type 1
