Water Well Drilling Rig With CE/ GOST/ ISO9001 Certification Max Drilling Diameter 711mm

Basic Information
Place of Origin: China
Brand Name: SINOVO
Model Number: SIN-600st/450st/200st/300st/1000st
Minimum Order Quantity: 1 set
Price: Negotiation
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 sets per month
Detail Information
Certification: CE/GOST/ISO9001 Model: SIN-600st/450st/200st/300st/1000st
Max Drilling Diameter: 711mm Rotation Speed: 0-130rpn
Max. Pull-up: 462KN Max. Feed: 226KN
Weight: 21-36T
High Light:

geothermal drilling rigs

,

portable water well drilling rig


Product Description

Basic Information Of Water Well Drilling Rig

 A water well drilling rig is a rig used for drilling water wells, installing underground pipes and cleaning wells. It is mainly composed of power unit, drill bit, drill rod,   core barrel, drill stand etc.Generally, there are three types of water well drilling rig, which are rotary drill, percussion drill and combination drill. We are a specialized water well drilling rig manufacturer and supplier in China. Our SIN series water well drilling rig mounted on truck or trailer uses air circulation, mud or foam system, equipped with rotary tri- cone and down the hole hammer. It is highly efficient under many geological conditions, such as clay, sandy soil layer, bedrock, etc. In order to satisfy all water well drilling requirements, our water well drilling rig can be fitted with many optional accessories such as line lubricator, kelly bar loader, various mud pumps, air compressors, and more.

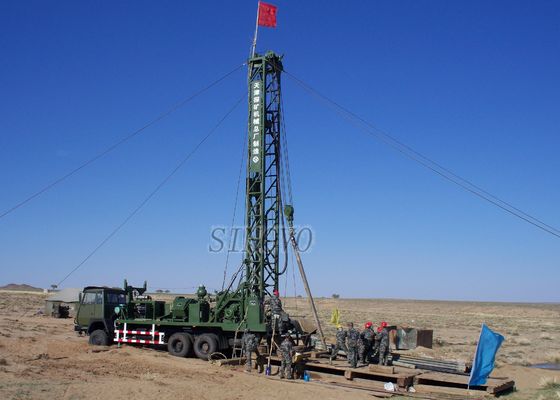

The water well Drilling rig model SIN300 Truck-mounted, is a truck mounted rig, with all itscomponents  (Including Diesel, gear box, transmission box, rotary table, hoist, dual hydraulic cylinder -feed mechanism of steel cable, mast, mud pump. Etc) are mounted on the “ STEYR ”brand truck. The drilling rig is mainly mechanical driven. Most of the operating mechanism is hydraulic driven and the other part is mechanical driven.





SIN-300st Water Well Drilling Rig







Technical Parameters



EURO standards

U.S.standards

Drilling power

74KW/2300rpm(Air cooling diesel engin);
100KW/1500rpm(water cold diesel engine)

99hp/2300rpm(Air cooling diesel engin);
134hp/1500rpm(water cold diesel engine)

Max. diameter of hole

Φ500mm

19.7inch

Mast height

11m

36feet

Main hoist single cable tension

30kn

6744lbf

Max .inside diameter of rotary table

Φ505mm

19.9inch

Rotation speeds of rotary table

Clockwise52, 78, 123rpm
Anti-clockwise 40rpm

Clockwise52, 78, 123rpm
Anti-clockwise 40rpm

Chassis

STEYR Truck

STEYR Truck

Mud pump

Max pressure

3Mpa

435psi

Max displacement

600L/min

132 UK gallon/min

Power

≧37KW

≧50hp

Weight

21T

46297lb



SIN-450st Water Well Drilling Rig



Technical Parameters



EURO standards

U.S. standards

Drill ing power

73.5KW/1500rpm
(water cooling diesel engine)

98.6hp/1500rpm
(water cooling diesel engine)

Max. drilling depth

450m

1476feet

Max. diameter of hole

Φ500mm

19.7inch

Mast height

10.5m

34feet

Main hoist single cable tension

40kn

8992lbf

Max. inside diameter of rotary table

Φ505mm

19.9inch

Rotation speeds of rotary table

Clockwise26, 47, 77, 126, 200rpm
Anti-clockwise 21, 38, 63, 103, 164rpm

Clockwise26, 47, 77, 126, 200rpm
Anti-clockwise 21, 38, 63, 103, 164rpm

Chassis

Trailer

Trailer

Mud pump

Power

≧55KW

≧73.8hp

Max pressure

2.5Mpa

363psi

Max displacement

900L/min

198 UK gallon/min

Weight

14.5T

31967lb



SIN-600st Water Well Drilling Rig



Technical Parameters



EURO standards

U.S. standards

Drilling power

141KW/2500rpm(Intercooling diesel engine);
100KW/1500rpm(water cooling diesel engine)

189hp/2500rpm(Intercooling diesel engine);
134hp/1500rpm(water cooling diesel engine)

Max. drilling depth

600m

1968feet

Max. diameter of hole

Φ500mm

19.7inch

Mast height

15/11m

49/36feet

Main hoist single cable tension

44kn

44kn(9892lbf)

Max. inside diameter of rotary table

Φ505mm

19.9inch

Rotation speeds of rotary table

Clockwise27, 49, 80, 131, 208rpm
Anti-clockwise 35rpm

Clockwise27, 49, 80, 131, 208rpm
Anti-clockwise 35rpm

Chassis

STEYR

STEYR

Mud pump

Max pressure

5Mpa

725psi

Max displacement

1100L/min

242 UK gallon/min

Power

≧75KW

≧100.6hp

Weight

27T

59525lb



SIN-1000st Water Well Drilling Rig



Technical Parameters



EURO standards

U.S. standards

Power of engine

213KW,  2200r/min

286hp,  2200r/min

Drilling capacity

1000m with Φ89mm standard drill rod

3281feet with Φ3.5inch standard drill rod

Max drilling diameter

Φ711mm

Φ28inch

Top drive head

Rotation speed

0-130rpm

0-130rpm

Torque

13000N.m

9588lbf.ft

Feed system

Stroke

11.8m

39feet

Max. pull-up

462KN

103862lbf

Max. feed

226KN

50807lbf

Main hoist

Single line

40KN

8992lbf

Secondary hoist

Single line

20KN

4496lbf

Height of mast

14.5m

48feet

Foam pump

0-80L/min

0-17.6UK gallon/min

Overall weight

36T

79366lb
