SHY - 5D Directional Diamond Core Drilling Rig Utilizes Low Noise

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: ISO9001:2015
Model Number: SHY - 5D
Minimum Order Quantity: 1 unit
Packaging Details: Export package
Delivery Time: 7-10 Work days
Payment Terms: L/C, T/T
Supply Ability: 30 units per month
Detail Information
High Light:

core drilling equipment

,

hydraulic system diamond core drilling rig

,

diamond core drilling rig


Product Description



SHY - 5D Directional Diamond Core Drilling Rig Utilizes Low Noise



SHY-5D diamond core drill utilizes an advance load sensing control system within it’s hydraulic system, which is currently being adopted by the major international producers. The rig features quality pedrail tracks that provides the rig with strong climbing capabilities that enhances it’s capabilities even in the toughest terrain.



This drilling rig is suitable for the following drilling applications;

  • Diamond core drilling
  • Directional drilling
  • Reverse circulation continuous coring
  • Percussion rotary
  • Geo-tech
  • Water bores
  • Anchorage



Product Features:

  1. The rig offers a smooth hydraulic transmission, operating at low noise levels. Whilst providing convenience to the operation is labor saving and focuses on promoting work safety on site.
  2. The whole hydraulic system of the drill is adopted international advanced load- sensitive control system, efficient and sumptuary, main hydraulic elements are all original imported, stable using and reliability.
  3. The predrail set has high driving force and powerful climbing ability.
  4. The rotation head is step-less speed transmission, offering a wide rang of speeds and torque(uo to 3 speeds), the rotation head can be side racked via hydraulic rams for added convenience and efficiency especially during rod trips.
  5. Hydraulic chuck jaws and foot clamps offers a fast clamping action, designed to be reliable, neutral. The foot clamps are designed to suit various different drill rod sized via the use of different size slip jaws.
  6. Feed stroke at 3.5meters, reduces operation time, improves drilling efficiency and reduces inner tube core blockages.
  7. Braden main winch (USA) features s stepless speed transmissions from Rexroth. Single rope hoist capacity up to 8.1 ton. Wireline winch is also equipped with a stepless speed transmission, offering a wide speed range.

The rig benefits from a tall mast, which allows for the operator to pull rods at up to 6m lengths, making rod trips faster and more efficient.

  1. The mast could be folded to decrease the transport size and fulfill the civil road transportation statuse. The drilling rig could be transported in container.
  2. Equipped with all the essential gaues including:
  • Rotation speed
  • Feed pressure
  • Ammeter
  • Voltmeter
  • Main pump/torque gauge
  • Water pressure gauge

Enabling the driller to oversee the entire operation of the drill rig at a simple glance.

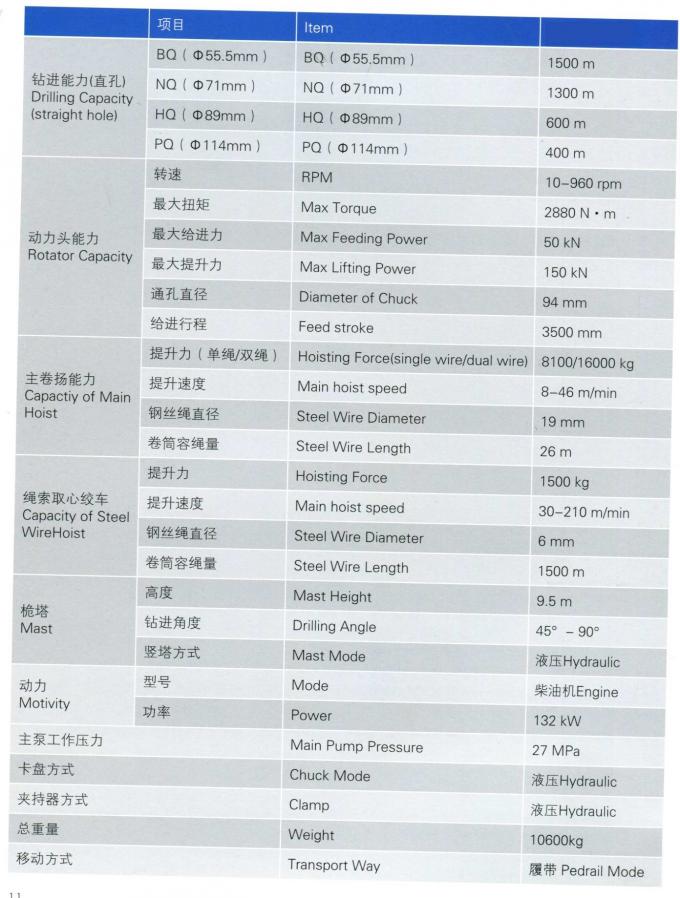

SHY - 5D Directional Diamond Core Drilling Rig Utilizes Low Noise 0

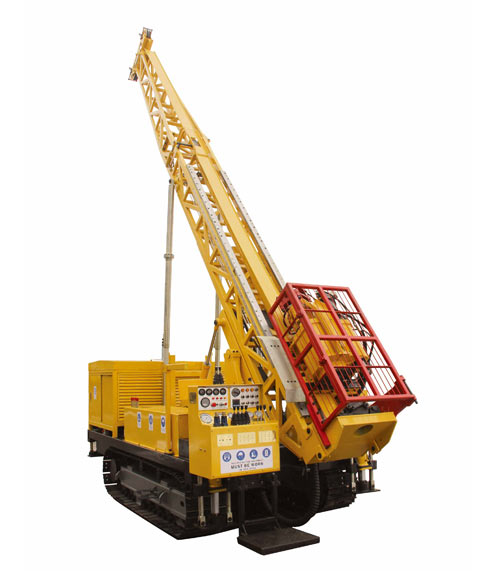

SHY - 5D Directional Diamond Core Drilling Rig Utilizes Low Noise 1
