|Max.Cylinder Required:||25L/min||Total Weight:||2.5t|
concrete pile breaker,
hydraulic pile cutter

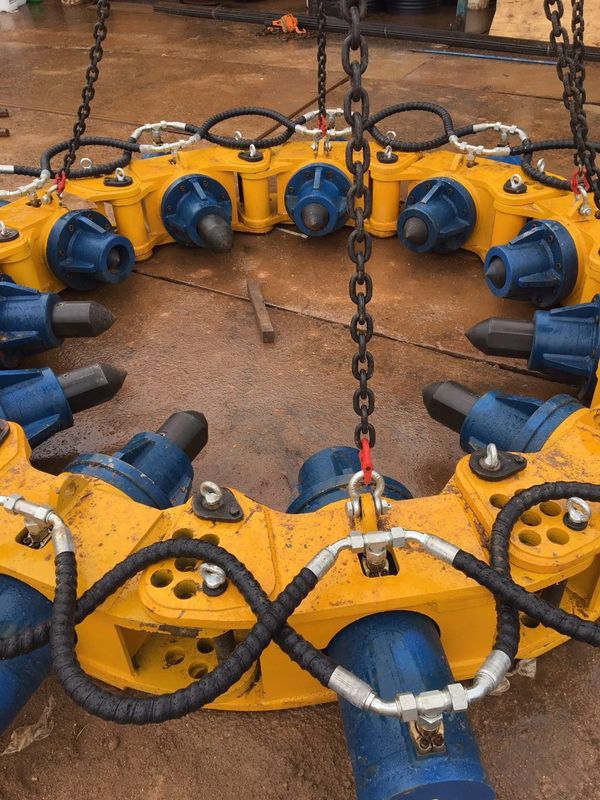

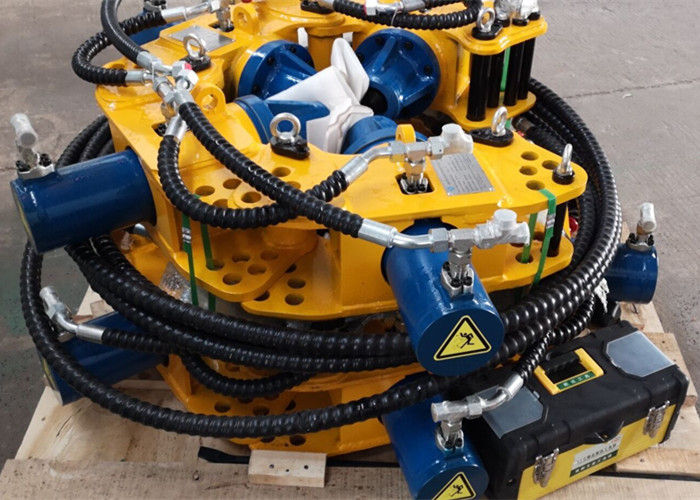

Quick Assembled Hydraulic Pile Breaker SPA 5 With Power pack
Benefits of the SPA5 pile breaker:
1. Highly efficient - it can operate continuously.
2. Low noise levels - the hydraulic pressure drive does not cause disturbances
3. Long life - the main unit is made from specical material using superior technology.
The work environment:
1. Because of the project machinery and pile basis may have something no indeterminacy,so break the pile depth at most 300mm at every turn.
2. Choose the hydraulic pressure oil tube and joint on the basis of the motive power's source oil tube before assembly.Check the hydraulic pressure oil tube is connected, then test press. Hold for one minute
to check whether there is any leakage. If not, proceed with using the unit.
SPA5 Hydraulic pile breakers
l The leading hydraulic pile breaker,with five patented technologies, is the most equipment to crushing
the foundation piles and fills the domestic gap;
l By modular design,the pile breaker can be used for crushing piles of different diameters;
l Can be hung to a large variety of equipment, realize the versatility.
Simply operated with less staff,reduce the cost of the construction;
Crushing the piles wholly,reduce the construction of energy;
Using adjustable chain,the pile breaker can apply to construct in different terrains;
Total hydraulic drived, almost silent in its operation;
Quick assembled,more convenient to transport an more reliably;
Modular design brings a high life and maintained easily;
Excellent design brings customs the most return.
|Range of Pile diameter (mm)||Ф1050-Ф1200|
|Maximum Drill rod pressure||485kN|
|Maximum stroke of hydraulic cylinder||150mm|
|Maximum pressure of hydraulic cylinder||31.5MPa|
|Maximum flow of single cylinder||25L/min|
|Cut the number of pile/8h||60|
|Height for cutting pile each time||≦ 300mm|
|Supporting the digging machine Tonnage (excavator)|
|One-piece module weight||210kg|
|One-piece module size||895x 715 x 400mm|
|Work status dimensions||Ф2670x 400|
|Total pile breaker weight||2.5t|
The operation steps of pile breaker
1. According construction pile diameter, referring to construction of reference parameters combines
corresponding amount modular, directly connect pile breaker to work platform by changing joint quickly.
2. Moving pile breaker to the working pile head section.
3. Adjust pile breaker to the suitable height part(please refer to construction parameter list when crush
one time,if not there is danger of chain breakage0, clamp the need cutting pile position.
4. Adjust the pressure by the pile with concrete intensity, don’t press hydro-cylinder, until concrete pile breaker in high pressure.
5. After the pile crushed, hoist the concrete by the power of terrace.
6. Move crushed pile to the appoint position.
Simple Operation process
n The design of pile breakers pursue the easy maintenance, through reasonable protection reduce
n Modular design, reduce the cost and spare parts;
n Quickly change connector and the work platform connecting is simple and fast, platform diversity,
ensure the construction convenience, reduce cost;
n Disassembling and assembling equipment simply, convenient and efficient transportation;
n Simple operation, reduce the difficulty of operation personnel
|Max working pressure||31.5Mpa|
|Pump flow||240 L/min|
|Motor power||37 kw|
