Cummins Engine Spindle Speed 76r/Min Hdd Machine

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SHD300
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: T/T&L/C
Supply Ability: 30 set per month
Detail Information
Mud Flow Rate: 3000L/min Mud Pressure: 200bar
Tubing Diameter: 127-140
High Light:

spindle speed 76r/min hdd machine


cummins engine hdd machine


cummins hdd rig machine

Product Description

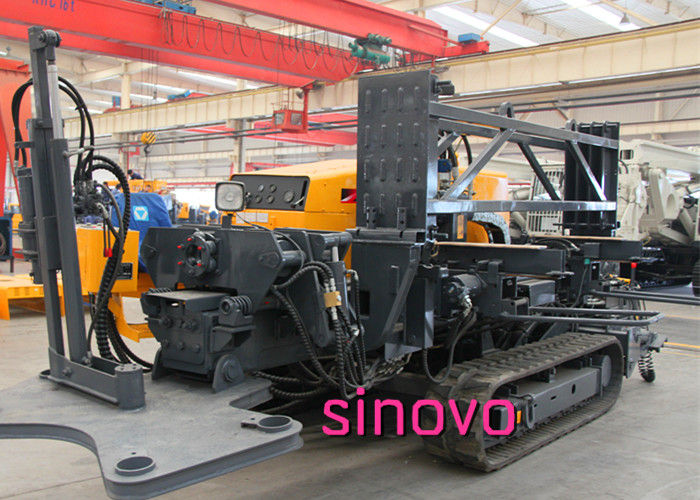

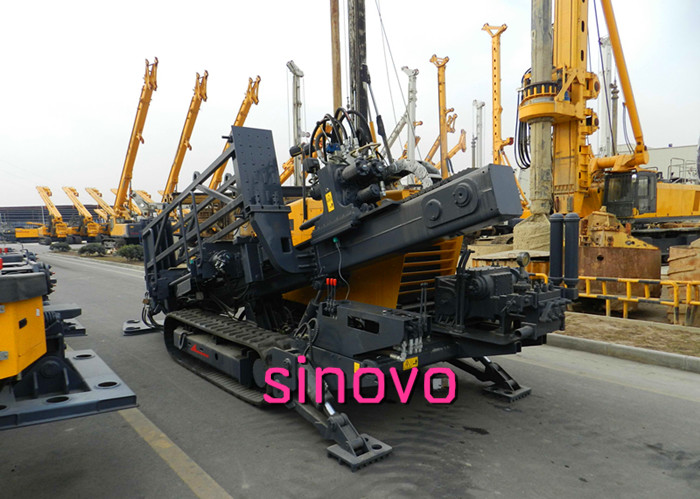

Cummins Engine Horizontal Directional Drilling Machine Spindle Speed 0 - 76 R/Min

We are a professional horizontal directional drill manufacturer in China.Our horizontal directional drilling rigs are primarily used in trenchless piping construction and replacement of the underground pipes.Having the advantages of advancedperformance, high efficiency and ease of operation.Our horizontal directional drills are increasingly used in the construction of the water piping, gas piping, electricity, telecommunication, heating systems, and crude oil industry

Horizontal Directional Drilling or directional boring is a method of installing undergroud pipes, conduits or cable by using a surface lauched drilling rig.This method results in little impact on the surrounding area and is mainly used when trenching or excavating is not practical.

In addition to horizontal directional drills, we at SINOVO International Company also manufacture others products, including piling rigs, desanders, hydraulic crawler drills, and more.The superior quality and full services we offer has resulted in our products finding markets in Singapore, Russia, India, Turkey, Ukraine, Austria, Nigeria, and more. Located in Beijing, we have easy access to convenient transportation by air and land. This greatly facilitates the transport of our products and effectively reduces customers' freight charge.



Features Introduction


Hydraulic system: the closed energy saving circuit, load sensing control, electro-hydraulic proportional control and other advanced control technologies as well as imported elements with reliable quality are


Rotation: low-speed and high-torque motor drive, two speeds, automatic high-pressure protection.

Push-pull: gear rack push-pull, continuous regulation of three speeds, high work efficiency.

Cab: all-weather double-person cab, in which the steering and operating devices are concentrated, and which is easy to operate.

Engine: turbine engine with high power reserve, ensuring the drilling power and emergency needs.

Drill tower: assembled high-strength drill tower suitable for drill stems of different length; cylinder driven sliding drill tower easy to adjust the angle.

Drill stem clamp: full-floating clamp and truck crane, making it easy to mount and dismount the drill stem

Crawler: self-propelled steel crawler with high moving strength .

Wired travel: it’s easy and fast to transport the machine between work sites.

Supervision: including the engine, hydraulic pressure and filtration are supervised and alarmed,

effectively to protect the machine.

Emergency operation: the manual operation system is installed to adapt for the emergency and ensure the construction safe.



Technical data:


Model SHD300
Engine power 298*2 KW
Max.pullback 3000 KN
Max. thrusting 3000KN
Spindle torque(max) 110000N.m
Spindle speed 0-76 r/min
Backreaming diameter 1600 mm
Tubing length(single) 9.6m
Tubing diame-ter 127,140 mm
Entry angle 8-18°
Mud flow rate (max) 200 L/min
Mud pressure (max) 3000 bar
Overall weight 45000 kg


Cummins Engine Spindle Speed 76r/Min Hdd Machine 0
If you have any questions, or if you'd like to order our drilling equipment, please contact us.
