680KN 102mm Tubing Dia Horizontal Directional Drilling Rig

Basic Information
Place of Origin: China
Brand Name: SINOVO
Model Number: SHD68
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A
Supply Ability: 30 set per month
Detail Information
Certification: CE/GOST/ISO9001 Name: Horizontal Directional Drilling Rig
Model: SHD68 Dimension (L* W* H): 11*2.8*3.3m
Max.pullback: 680KN Max. Thrusting: 680KN
Tubing Length (single): 6m Tubing Diameter: 102mm
High Light:

102mm Horizontal Directional Drilling Rig


6m Horizontal Directional Drilling Rig


680KN Horizontal Directional Drilling Rig

Product Description

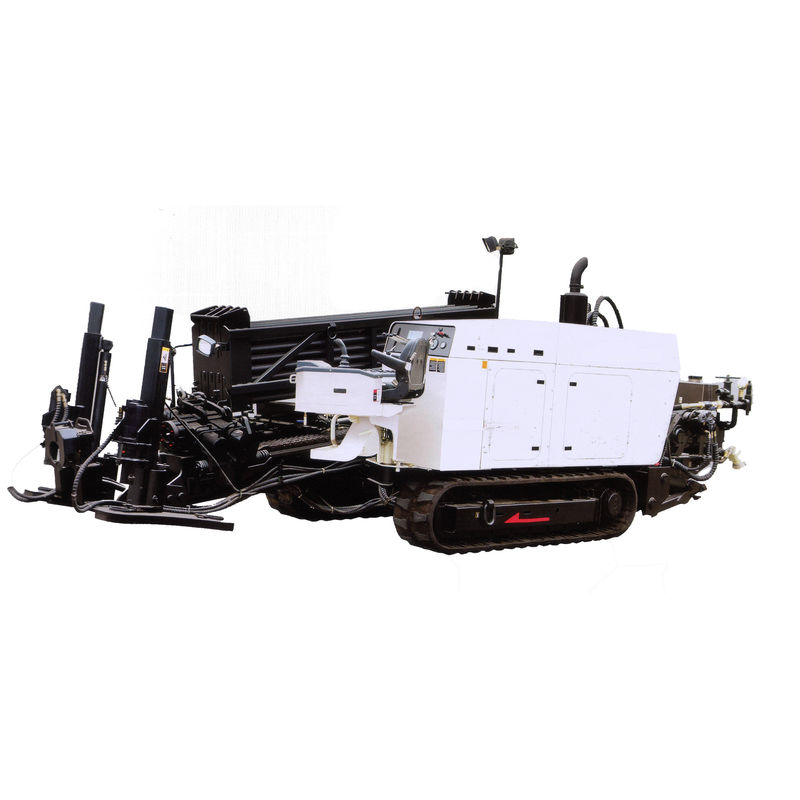

102mm Tubing Dia SHD68 Horizontal Directional Drilling Rig


​102mm Tubing Dia SHD68 Horizontal Directional Drilling Rig Application: Suitable for workers, civil drilling, geothermal drilling, with a large diameter drilling, deep drilling, mobile and flexible application of geographical advantages.


Technical Parameter:


Model Unit SHD68
Engine   CUMMINS
Rated power KW 250
Max.pullback KN 680
Max. thrusting KN 680
Spindle torque(max) N.m 27000
Spindle speed r/min 0-100
Backreaming diameter mm 1000
Tubing length (single) m 6
Tubing diameter mm 102
Entry angle ° 10-18
Mud pressure (max) bar 100
Mud flow rate (max) L/min 600
Dimension (L* W* H) m 11*2.8*3.3
Overall weight t 25




1. Pluralities of advanced control technologies are adopted,including the PLC control,electro-hydraulic proportion control,load sensitive control,etc.

2. The driling rod automatic disassembly and assembly device can improve the working efficiency,relieves the labor intensity and manual error operation of the operators, and reduces the construction personnel and the construction cost.

3. Automatic anchor: The down and the up of the anchor is driven by hydraulics.The anchor is great in force and is easy and convenient to operate.

4. The dual-speed power head is operated with low speed when drilling and dragging back to ensure smooth construction,and can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.

5. The engine has the turbine torque increment characteristic,which can instantly increase the power to ensure the drilling power when coming across the complex geology.



Packaging & Delivery
Packaging Details
Standard exported box
Lead Time :
Quantity(Sets) 1 - 5 >5
Est. Time(days) 5 To be negotiated
