Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: XY-1
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International standard packaging
Delivery Time: 7-10 days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 per month
Detail Information
Name: XY-1 100m Depth Portable Diesel Borehole Core Drilling Rig Machine Model: XY-1
Certification: CE/GOST/ISO9001 Max. Drilling Depth: 100m
Diameter Of The Initial Hole: 110mm Diameter Of The Final Hole: 75mm
Spindle Speed(3 Positions): 142,285,570rpm Spindle Stroke: 450mm
Overall Dimension: 1640*1030*1440mm Total Weight(not Include Power Unit): 500kg
High Light:

100m depth hydraulic core drilling machine

,

spindle type hydraulic core drilling machine

,

diesel borehole core sample drill rig


Product Description



XY-1 100m Depth Portable Spindle Type Diesel Borehole Core Drilling Rig Machine



The nominal drilling depth of XY-1 core drilling rig is 100 meters; the maximum depth is 120 meters. The nominal diameter of initial hole is 110mm, the maximum diameter of initial hole is 130 mm, and the diameter of final hole is 75 mm. The drilling depth depends on different conditions of stratum.

XY-1 core drilling rig can be used to geological exploration, physical geography exploration, road and building exploration, and blasting drilling holes etc. Diamond bits, hard alloy bits and steel-shot bits could be selected to meet different layers.
XY-1 core drilling rig is suitable for 2 to 9 stages siliceous skin clay and bedding course etc. layers.





Main performance parameters of XY-1 core drilling rig:



Fundamental
parameters

Max. Drilling Depth

100m

Diameter of the initial hole

110mm

Diameter of the final hole

75mm

Diameter of drilling rod

42mm

Angle of drilling

90°-75°

Rotation
unit

Spindle speed(3 positions)

142,285,570rpm

Spindle stroke

450mm

Max. feeding pressure

15KN

Max. lifting capacity

25KN

Max. lifting speed without load

3m/min

Hoisting

Max. lifting capacity(single wire)

10KN

Rotation speed of drum

55,110,220rpm

Diameter of the drum

145mm

Circumferential velocity of the drum

0.42,0.84,1.68m/s

Diameter of the wire rope

9.3mm

Drum capacity

27m

Brake diameter

230mm

Brake band width

50mm

Water pump

Max. displacement

With electrical motor

77L/min

With diesel engine

95L/min

Max. pressure

1.2Mpa

Diameter of liner

80mm

Stroke of piston

100mm

Hydraulic
oil pump

Model

YBC-12/80

Nominal pressure

8Mpa

Flow

12L/min

Nominal speed

1500rpm

Power unit

Type of diesel(ZS1100)

Rated power

10.3KW

Rated rotating speed

2000rpm

Type of electrical motor
(Y132M-4)

Rated power

7.5KW

Rated rotating speed

1440rpm

Overall dimension

1640*1030*1440mm

Total weight(not include power unit)

500kg





Features of XY-1 core drilling rig:



  1. XY-1 core drilling rig is hydraulic feed with simple operation and high efficiency.
  2. As the ball type chuck and the driving rod, XY-1 core drilling rig can complete no-stopping rotating while the spindle relit.
  3. The pressure indicator of bottom hole can be observed and the well conditions controlled easily.
  4. Close levers, convenient to operate, safe and reliable.
  5. Compact size and use same base for the installation of rig, water pump and diesel engine, just need small space.
  6.  Light in weight, easy to assemble, disassemble and transport, suitable for plains and mountain area.

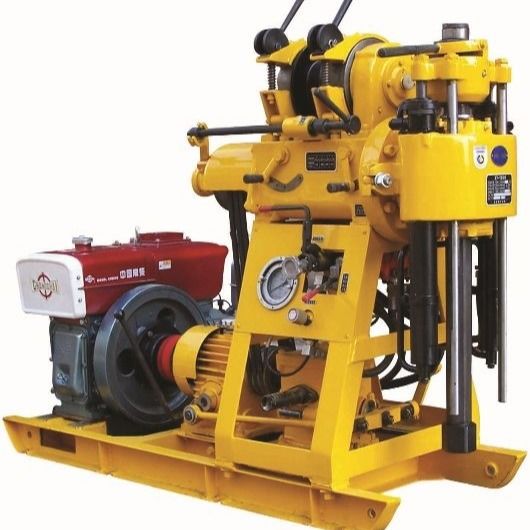

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 0

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 1

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 2

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 3

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 4

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 5

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 6

Xy-1 100m Depth Hydraulic Core Drilling Machine Portable Spindle Type Diesel Borehole 7
