360° Turning Hydraulic Telescopic Crawler Crane , Max 100T Lifting Capacity

China 360° Turning Hydraulic Telescopic Crawler Crane , Max 100T Lifting Capacity supplier

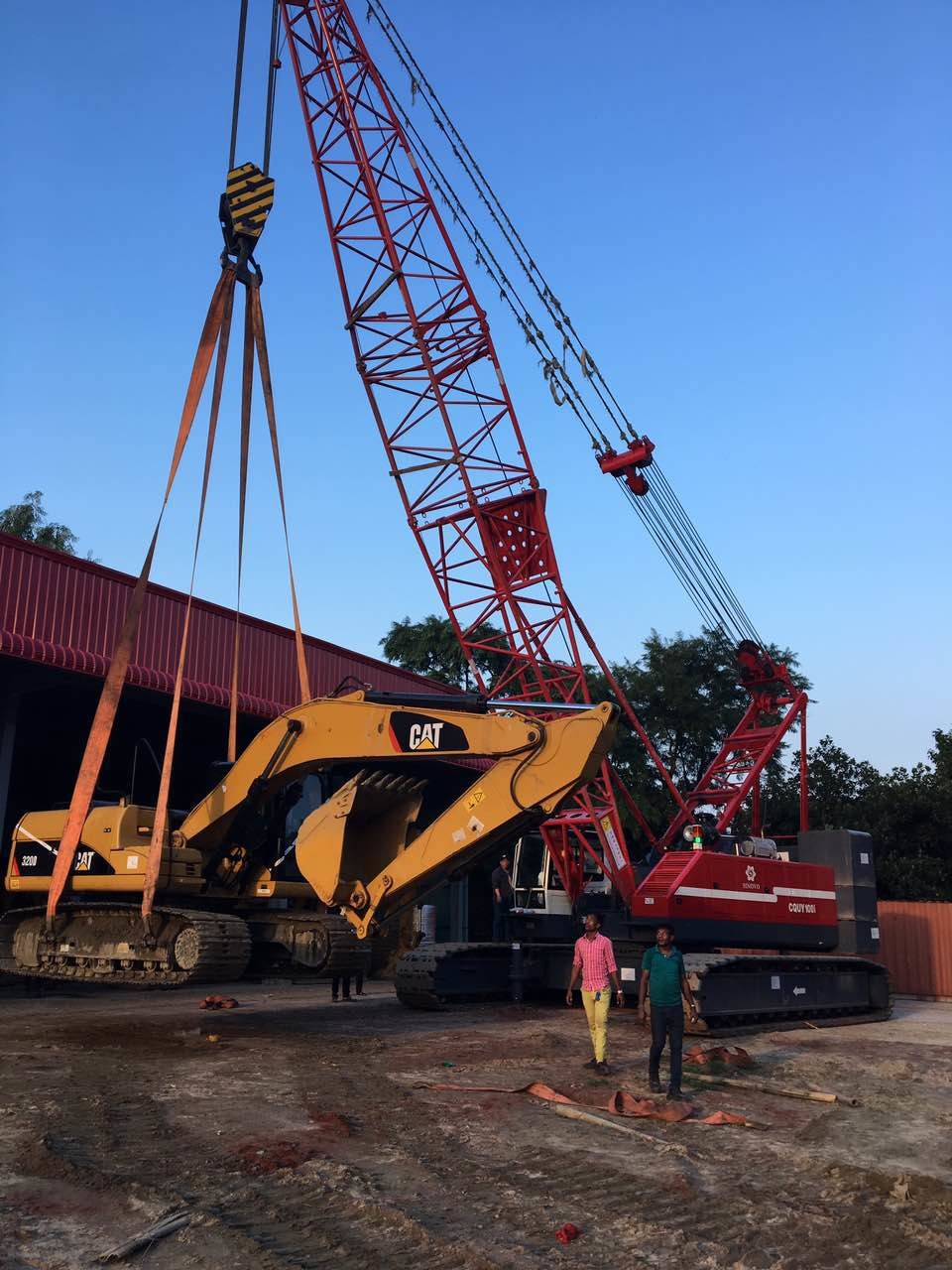

Large Image :  360° Turning Hydraulic Telescopic Crawler Crane , Max 100T Lifting Capacity

Product Details:

Place of Origin: China
Brand Name: sinovo
Certification: CE/GOST/ISO9001
Model Number: CQUY100I

Payment & Shipping Terms:

Minimum Order Quantity: One unit
Delivery Time: on stock
Payment Terms: T/T&L/C
Contact Now
Detailed Product Description
Descriptions Unit Data Length Of Standard Boom: 16-73 Length Of Fixed Jib: 13-25
Max.length Of Boom Plus Fixed Jib: 61+25 Kind Of Hook: 100t/50t/9t
Max.rated Lifting Capacity: 100t Max.rated Load Moment: 550t.m

Red color low ground pressure and max 100T Lifting capacity Hydraulic Crawler Crane CQUY100I



Main technical features:

CQUY100I hydraulic crawler crane has strong hoisting capacity, big lifting weight, good anti-slip property, lower roadbed requirement,which is widely used for the big factory construction working such as petrochemical industry,electircity, metallurgy, chemical industry and nuclear energy.



In order to meet the market demands and improve product's cost performance, our company designed the crawler crane for the high-end users based on the many years of construction machinery's production experience, This product has a good lifting performance,360° turning and telescopic crawler.The length of main body is 13-58m,length of fixed auxiliary boom is 9-18m.







Brief Introduction of CQUY100I


1.CQUY100I hydraulic crawler crane adopts CUMMINS QSL-9 Diesel Engine,up to Euro III emission standard, with advantages of the reliable power and economy.



2.Key components adopt famous international brands;main pump.motor are from Rexroth, hydraulic pipe and joints are from USA's Parker.



3.Telescopic chassis structure can improve the stability in working and be easy for transportation.The truck frame and the under frame adopt plug-in connection, which is easy to assembly.The transportation weight of the parts is light;the transport weight of largest parts is not more than 45t.After what it adopts vertical outrigger oil cylinder and removed the beam of crawler, the transport weight of largest parts is not more than 28t, which is convenient for transportation.



4.The new type cab with the wide views,which is equipped with top grade seat, and air-conditioning system ,Car-DVD system, provides driver comfortable operation and pleasured working environment.



5.To realize belt-loading move on account of the powerful traction



360° Turning Hydraulic Telescopic Crawler Crane , Max 100T Lifting Capacity




360° Turning Hydraulic Telescopic Crawler Crane , Max 100T Lifting Capacity



Technical Data


Model: CQUY100I
Max.rated lifting capacity:100t



Descriptions

Unit

Data

Length of standard boom

m

16~73

Length of fixed jib

m

13~25

Max.length of boom plus fixed jib

m

61+25

Working speed

Rope speed

Hoist

m/min

※High 116/57
 Low  82/41

lower

m/min

※High  116/57
  Low  82/41

Boom rise

m/min

※54

Boom lower

m/min

54

Swing speed

r/min

0~1.96

Travel speed

km/h

0.9~1.3

Main lifting multiplying power

               12

Max.single line pull

8.33

Gradeability                                 (with basic boom

and the cab in the rear)

%

30

Rated power output/rotation speed of diesel engine

KW/r/min

Cummins QSL-9  209/2000

Weight of whole machine (with basic boom)

t

103

Ground pressure(with basic boom)

MPa

0.07

Counterweight

t

34







360° Turning Hydraulic Telescopic Crawler Crane , Max 100T Lifting Capacity



360° Turning Hydraulic Telescopic Crawler Crane , Max 100T Lifting Capacity
