Spindle Crawler Core Drilling Rig XYC-3B with drilling depth 600m and drilling diameter 75-800mm
Application range:
Engineering geological explorations for railway,hydropower,highway,bridge and dam etc;geologic core drilling and geophysical exploration;drill the holes for small grouting and blasting.
Structural configuration

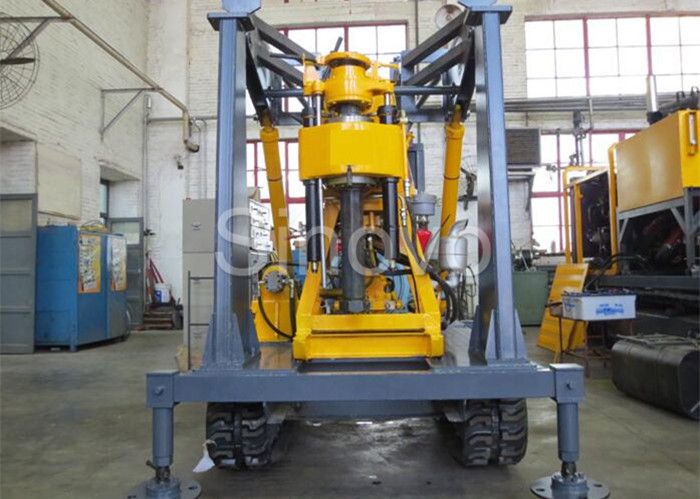

The drilling rig includes crawler chassis,diesel engine and drilling main body;all these parts will be mounted on one frame.The diesel engine drill,hydraulic oil pump and crawler chassis,the power will be transferred to drill and crawler chassis through transfer case.

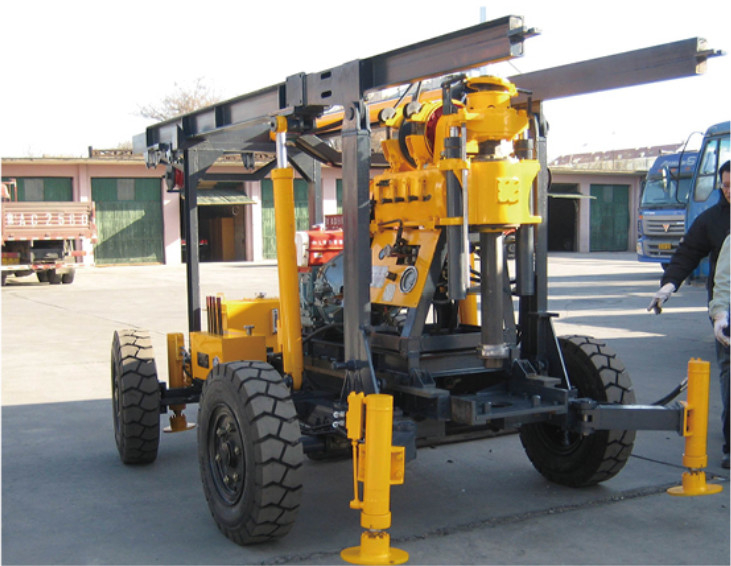

As a professional core drilling rig manufacturer in China, we produce core crawler drilling rigs, core trailer drilling rigs, and full hydraulic core drilling rigs for you to choose from. These products are reliable, versatile, and come in various specifications to satisfy your different drilling applications.
core drilling rigs- spindle type is ideally suited for exploration, mining, water well and pile grouting hole drilling operations projects for which ease of transport, mobility and compact dimensions are important factors.
Diamond core drilling requires hydraulic drilling rigs with higher speed and wider range of speed regulation. Besides, the drilling rigs should be equipped with bottom hole pressure gauge, speed and torque meter. When driven by electric motor, core drilling rigs should be fitted with voltage meter and ammeter.
Main Features:
1.Being equipped with rubber crawler make the drilling rig moving easily.
2.The rubber crawler won't destory the ground,then the rig will be convenient for construction in city.
3.Having hydraulic mast,convenient operation.
4.Close levers,convenient operation.
5.The diesel engine starts by the electromotor.
6.Being equiped with ball type holding device and hexagonal kelly,it can accomplish no-stopping working while lifting the rods and get a high drilling efficiency.Operate with convenience,security and reliability.
Technical Specification
Fundamental parameters
Drilling depth | m | 600 |
Drilling diameter | mm | 75-800 |
Rod diameter | mm | 50/60 |
Drilling angle | ° | 70-90 |
Rotation
Co-rotation | r/min | 75,135,160,280,355,495,615,1030 |
Spindle pulling force | KN | 68 |
Spindle feeding force | KN | 46 |
Maximum output torque | N.m | 3550 |
Hoist
Lifting speed | m/s | 0.31,0.62,1.18,2.0 |
Lifting capacity | KN | 30 |
Cable diameter | mm | 15 |
Drum diameter | mm | 264 |
Brake diameter | mm | 460 |
Brake band width | mm | 90 |
Frame moving device
Frame moving stroke | mm | 410 |
Distance away form hole | mm | 300 |
Hydraulic oil pump
Type | CBW-E320 | |
Rated flow | L/min | 40 |
Rated pressure | Mpa | 8 |
Power unit
Type | CZ4102 | |
Rated power | KW | 35.3 |
Rated speed | r/min | 2000 |
