Mobile Drilling Rigs ST-100 Drilling Capacity 300M Geological Drilling Rig

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: ST-100
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Exporting Standard
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 set per month
Detail Information
Model: ST-100 Max Drilling Depth: 100m
Spindle Speed: 65, 114, 192rpm Max Feeding Capacity: 48KN
Max Pulling Capacity: 70KN Weight: 9650kg
High Light:

drilling machine


portable drill rig

Product Description

Mobile Drilling Rigs ST-100 Drilling Capacity 300M Geological Drilling Rig


Mobile Drilling Rig


Series Mobile drilling rig can meets the requirements for all kinds of coveringlayer and in-situ test for quaternarygeology stratification. It has been widely ST-200 mobile drilling rig is suitable for all kinds of covering layer and in-situ test for quaternary geology stratification. It has been widely used inindustrial and civil defense facilities,  highway,   railway,  bridges, waterconservancy,  electric power, coal, oil, harbor, municipal projects,  geophysicalblasting hole and bedrock drilling, etc. Built on our expertise and years ofexperience, our mobile drilling has many functional characteristics,  such asstatic  pressure, rotation, vibration pounding,  shockingandstaticsoundingetc. Static sounding is also optional. ST-600 drilling rig is a kind of full hydraulic driving drilling equipmentinstalled on the chassis of diesel truck.It is increasingly used for diamond bitdrilling and carbide bit drilling of solid bed,  and also used in exploringdrilling and base or pile hole drilling and the small water well drilling. ST100 mobile drilling rig is a kind of rotary drilling equipment installed on thethe chassis of truck.It is equipped with auxiliary hoisting device, drilling fedby hydraulic oil pressure.


applications of Mobile Drilling Rig:

-Exploration in shallow holes of mine and seismic exploration drilling.

-In liquids and natural gas holes drilling.

-Construction shot drilling.
-Geological exploration and shallow water well drilling.

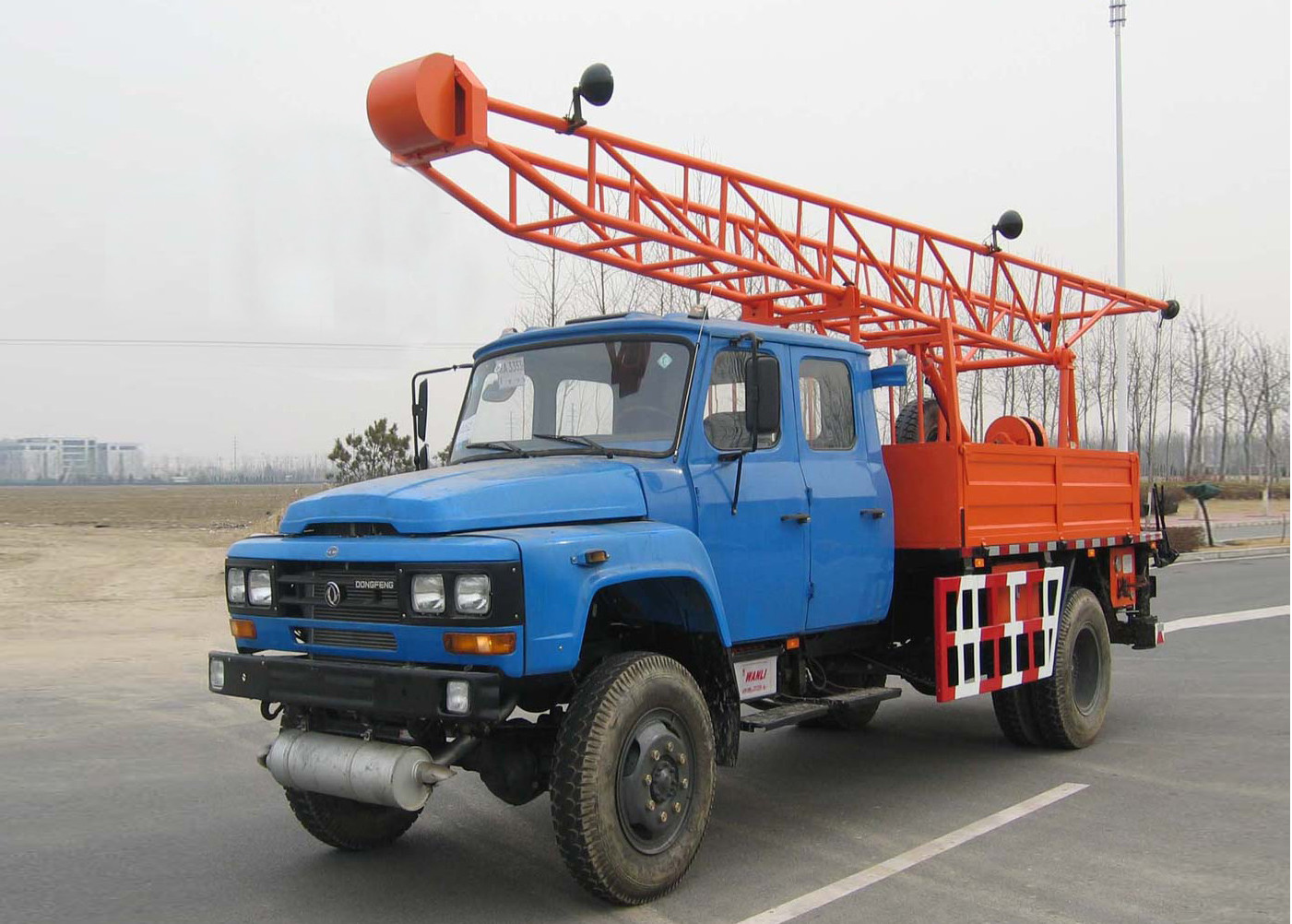

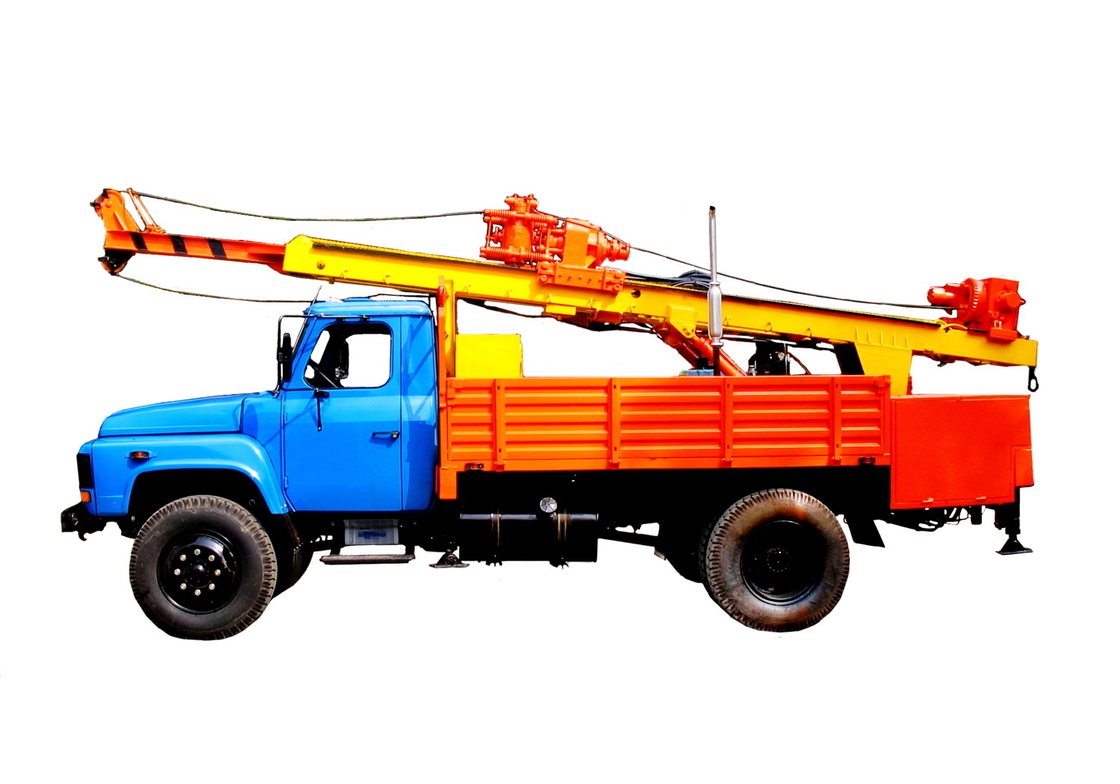

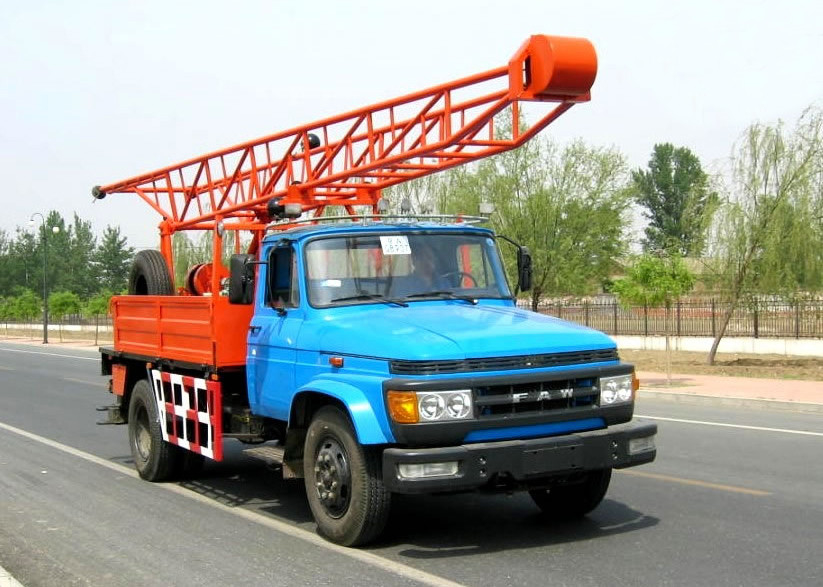

ST-100 Mobile Drilling Rig


Technical parameters for ST-100 Drilling Capacity 300M geological drilling rig


Technical Parameters
  EURO standards U.S. standards
Max drilling depth With 200mm bit 70m With 7.9inch bit 229.7feet
With 150mm bit 100m With 5.9inch bit 328feet
Rotary table
Spindle speed 65, 114, 192rpm 65, 114, 192rpm
Max feeding capacity 48KN 10791lbf
Max pulling capacity 70KN 15737lbf
Feeding stroke 1200mm 47inch
Main hosting device
Rotation speed of frum 28, 48.8, 82.3rpm 28, 48.8, 82.3rpm
Hosting speed(single wire) 0.313, 0.544, 0.917m/s 1, 1.8, 3 feet/s
Single wire lifting capacity 12.5KN 2810lbf
Mud pump
Max operating pressure 2Mpa 290psi
Max displacement of water 450L/min 99UK gallon/min
Hydraulic oil pump
Operating pressure 8Mpa 1160psi
Hydraulic oil flow 35L/min 7.8UK gallon/min
Hydraulic mast
Max operating pressure 8Mpa 1160psi
Outfit weight 9650kg 21275lb



We are an ISO9001;2000 certified manufacturer of mobile drilling rigs.Our primaryproducts include piling rigs, desanders, and hydraulic crawler drills etc.Due totheir high performance,great stability and long service life,our products are CEcertified.Located om Beijing, we enjoy convenience transportation, so it is easyfor customers to ship their products, at lower costs.


We welcome you to contact us!Thank you
