Attachment rig Hydraulic crane attachment for large diameter bored piles to be combine with hydraulic crane Soilmec

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SD2200
Minimum Order Quantity: 1 unit
Packaging Details: Export Package
Delivery Time: ON STOCK
Payment Terms: T/T/& L/C
Detail Information
Applicable Industries: Piling Work Base Carrier: HQY5000A
Engine Power: 199 Kw Max Drilling Depth: 75 M
Warranty: 12month Or 2000 Working Hours Unique Selling Point: Hydraulic Crawler Crane And Bored Piling Rig
High Light:

rotary drilling machine

,

rotary rig machine

,

hydraulic rotary drilling rig


Product Description

Attachment Drilling Rigs SD2200 with multi-functional full-hydraulic and advanced international technology.



Hydraulic crane attachment for large diameter bored piles to be combined with various brand hydraulic crawler cranes.



SD2200 is a multi-functional full-hydraulic pile machine with advanced international technology. It can not only drill bored piles, percussion drilling, dynamic compaction on soft foundation, but also has all the functions of rotary drilling rig and crawler crane. It also surpasses the traditional rotary drilling rig, such as ultra-deep hole drilling, perfect combination with full casing drilling rig to carry out complex work. It is especially suitable for the construction of occlusive pile, bridge pile, Sea and river Port foundation pile and high precision pile foundation of subway. The new super drilling rig has the advantages of high construction efficiency, low energy consumption and green advantages, and has the function of intellectualization and multi-purpose. The super drilling rig can be used in all kinds of complex terrain, such as Cobble and Boulder stratum, hard rock stratum, karst cave stratum and thick quicksand stratum, and can also be used to break old piles and waste piles.

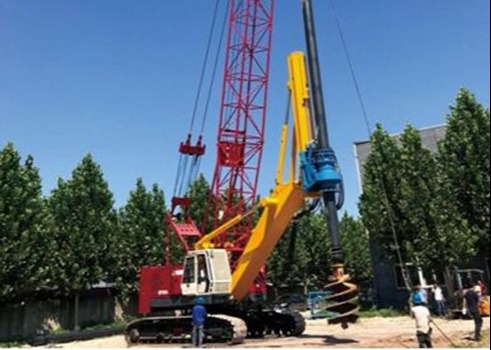

Attachment rig Hydraulic crane attachment for large diameter bored piles to be combine with hydraulic  crane Soilmec 0





Multifunctional hydraulic drill with full working condition



l Rotary drilling function

l Extruding and expanding function of expanded pile.

l Impact hammer function.

l Drive casing, wall protection and casing drilling function.

l Caterpillar crane hoisting function

l Reinforcing cage of pile driver and lifting function of drilling tool

This machine is multi-functional, can use all kinds of rotary drilling buckets and drilling tools for rotary drilling, function,at the same time, make use of their own advantages of variety of equipment in one, an engine to provide energy,energy saving, green economy.

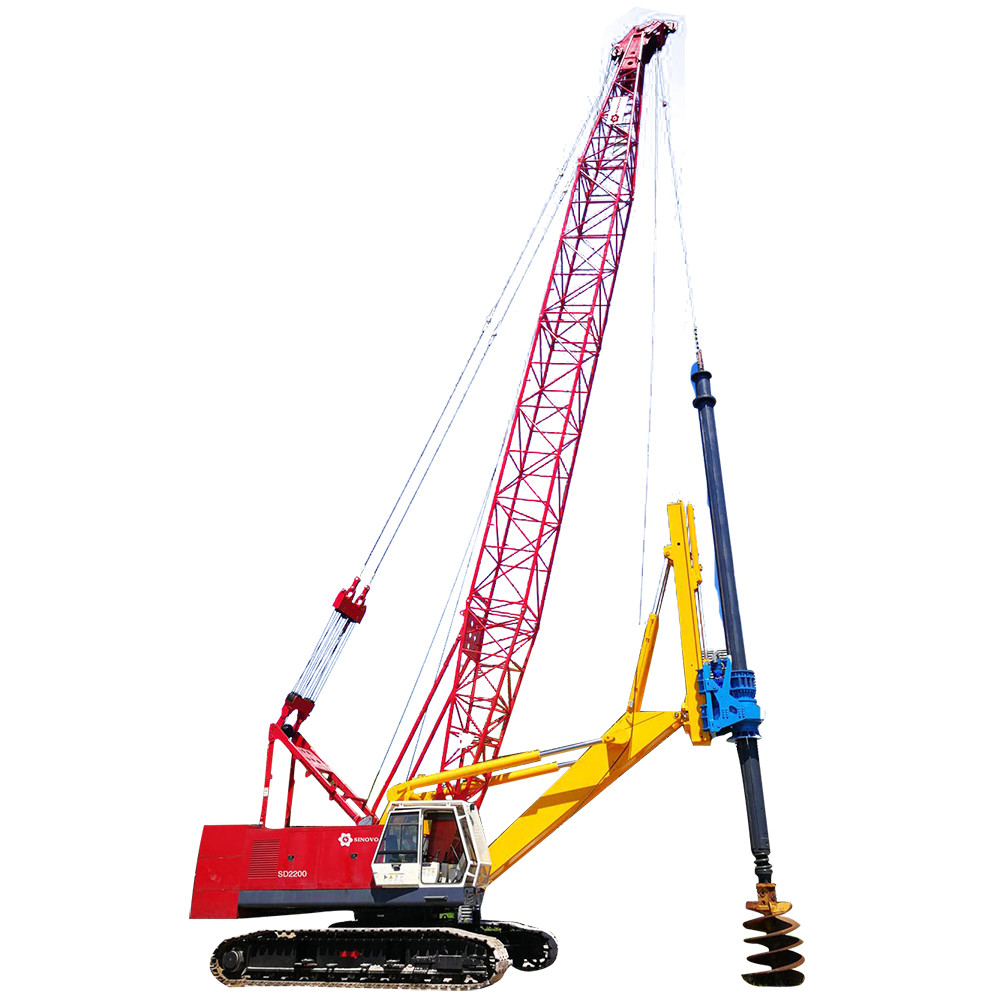

Full hydraulic multifunctional drilling rig SD2200



Model

SD2200

Undercarriage

HQY5000A

Engine power

199 kw

Rotating speed

1900 rpm

Main pump flow

2X266 L/min

Nominal torque

220 kN.m

Speed of rotation

6~27 rpm

Spin off speed

78 rpm

Max drilling depth

75 m

Max drilling diameter

2200 mm

Max crowd force

180 kN

Max pull force

180 kN

Crowd stroke

1800 mm

Rope diameter

26 mm

Line pull (force 1st layer) of main winch

200 kN

Lind speed max of main winch

95 m/min

Rope diameter of auxiliary winch

26 mm

Line pull (force 1st layer) of auxiliary winch

200 kN

Outer pipe diameter of kelly bar

Φ406

Kelly bar (Standard)

5X14m(Friction)

4X14m(Interlocking)

Kelly bar (Extension)

5X17m(Friction)

4X17m(Interlocking)



Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer, and our factory mainly produces series hydraulic rotary rig, hydraulic pile breaker, exploration equipment, core drilling rig and related piling equipment etc.



Q: What kind of product certification do you have?

A: Our series products have passed ISO9001, Gost and CE certifications.

We strictly perform quality inspection process before shipment and supply the best quality machines to our customers.



Q: Do you have after sales service?

A: Yes, we have professional service team to assist our clients . If you request, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, our clients can enjoy global after service support.



Q: How about the warranty policy ?

A: Most of our products support 1 year or 2000 working hours warranty, please consult customer service for specific products



Q: Do you test all your goods before delivery?

A: Yes, we have strict quality inspection process before shipment, and the clients also authorize SGS to inspect our machine.
