XYT-200 Mechanical Spindle Trailer Type Core Drilling Equipment High Rotating Exploration

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: XYT-200
Minimum Order Quantity: 1 unit
Packaging Details: Export package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 units per month
Detail Information
Model: XYT-200 Drilling Depth: 280m
Drilling Diameter: 60-380mm Rod Diameter: 50mm
Application: Building Foundation Max.output Torque: 1700N.m
Overall Dimension: 4460x1890x2250mm
High Light:

core drilling machine

,

core drilling equipment


Product Description

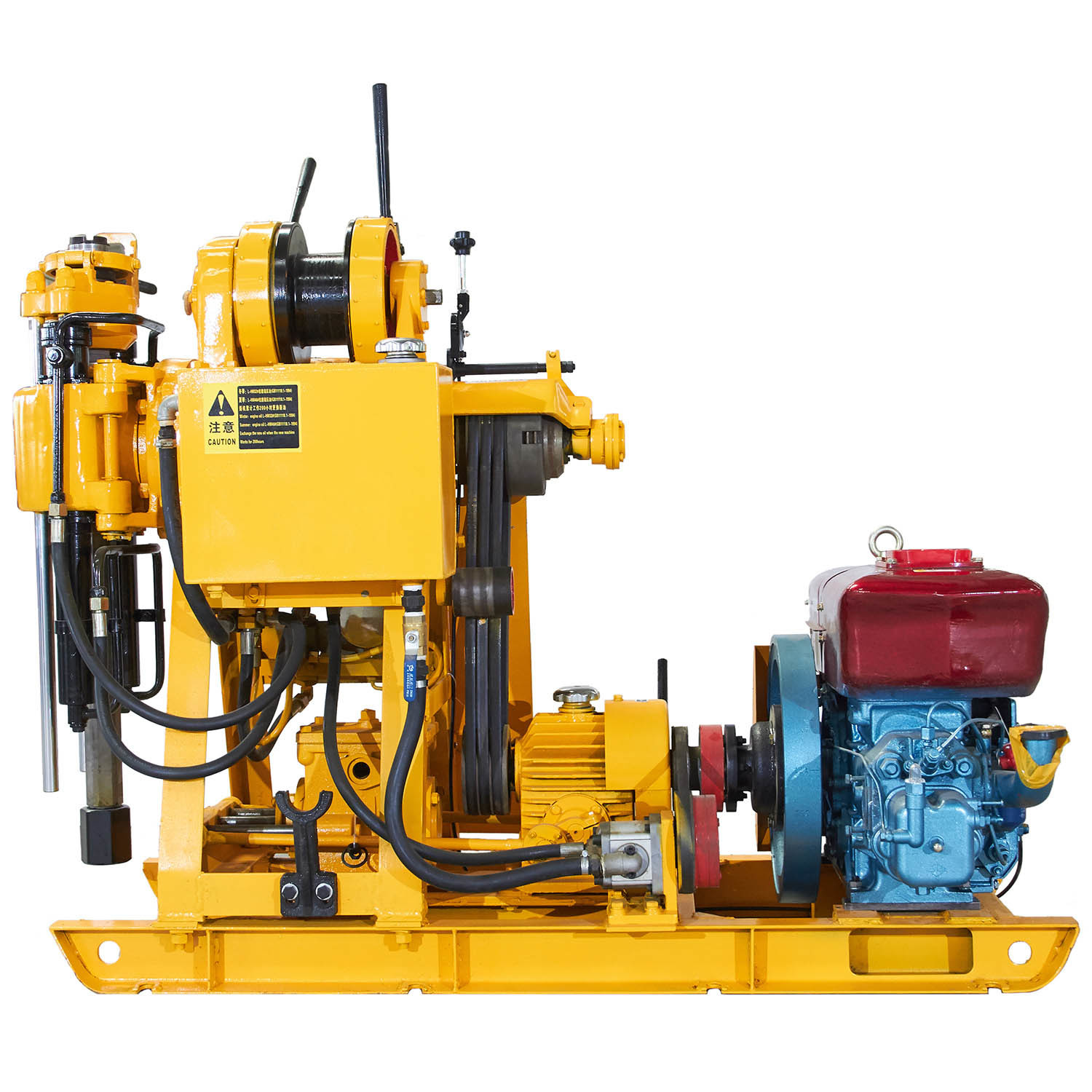

XYT-200 Mechanical Spindle Trailer Type Core Drilling Equipment High Rotating Exploration



TRAILER TYPE CORE DRILLING RIG

Series spindle type core drilling rigs are mounted on trailer with four hydraulic jacks, self-erect mast by hydraulic control, which are mainly used for core drilling, soil investigation, small water well and diamond bit drilling.





Main Features

1. Compact size and light in weight of mechanical transmission,major diameter of vertical shaft,long distance of support span and good rigidity,hexagonal Kelly ensure the torque transfer.
2. High speed and suitable range of speed to meet varies need of small diameter diamond bit drilling,big carbide bit drilling and all kinds of the engineering holes.
3. In hydraulic system,feeding pressure and speed can be adjusted while drilling to sutable for various stratums.
4. Through hydraulic oil pressure gauge at the hole-bottom,obtain information about feeding pressure.
5. Using the transmission and clutch of automobile to achieve the good generalization,easy repairing and maintenance.
6. Close levers,convenient operation.
7. The spindle has the octagon section so give more torque.


Specifications of trailer geological core drilling rig

Fundamental parameters
  Unit XYT-200 XYT-2B XYT-3B
Drilling depth m 280 300 600
Drilling diameter mm 60-380 80-520 75-800
Rod diameter mm 50 50/60 50 60
Drilling angle ° 0-90 70-90 70-90
Overall dimension mm 4460x1890x2250 4460x1890x2250 5000x2200x2300
Rig weight kg 3320 3320 4120
Skid     / /
Rotation unit
Spindle speed
Co-rotation r/min 88, 197, 296, 399, 655, 888, 70,146,179,267,370,450,677,1145, 75,135,160,280,355,495,615,1030,
Reverse rotation r/min 66, 147 70, 155 64,160
Spindle stroke mm 510 550 550
Spindle pulling force KN 49 68 68
Spindle feeding force KN 29 46 46
Maximum output torque N.m 1700 2550 3500
Hoist
Lifting speed m/s 0.31, 0.72, 1.06?? 0.64,1.33, 2.44 0.31,0.62,1.18,2.0
Lifting capacity KN 20 25, 15, 7.5 30
Cable diameter mm 12 15 15
Drum diameter mm 170 200 264
Brake diameter mm 296 350 460
Brake band width mm 60 74 90
Frame moving device
Frame moving stroke mm 420 420 420
Distance away from hole mm 250 300 300
Hydraulic oil pump
Type   YBC12-125 (left) CB-25 CBW-E320
Rated flow L/min 18 40 40
Rated pressure Mpa 10 8 8
Rated rotation speed r/min 2500
Power unit
Diesel engine
Type   L28 N485Q CZ4102
Rated power KW 20 24.6 35.3
Rated speed r/min 2200 1800 2000





XY-2B Core Trailer Drilling Rig



EURO standards

U.S. standards

Drilling capacity

300m

984feet

Hole diameter

Φ80mm-Φ520mm

Φ3.1-Φ20.5inch

Max torque

2.55knm

1881lbf.ft

Angle range

90°-70°

90°-70°

Spindle max pull force

68kn

15287lbf

Spindle stroke

550mm

22inch

Hoist max lift capacity(single rope)

25,  15,  7.5kn

5620,  3372,  1686lbf

Power unit

Electric motor

22kw

30hp

Diesel engine

24.6kw

33hp

Rig weight(without power unit)

1200kg

2646lb





Hydraulic oil pump
Model CBW-E320
Nominal pressure 8Mpa
Flow 40L/min
Frame moving device
Frame movng stroke 410mm
Distance away from hole 300mm
Hositing
Lifting speed 0.64,1.33,2.44m/s
Lifting capacity 25,15,7.5KN
Cable diameter 15mm
Drum diameter 200mm
Brake diameter 350mm
Brake band width 74mm
