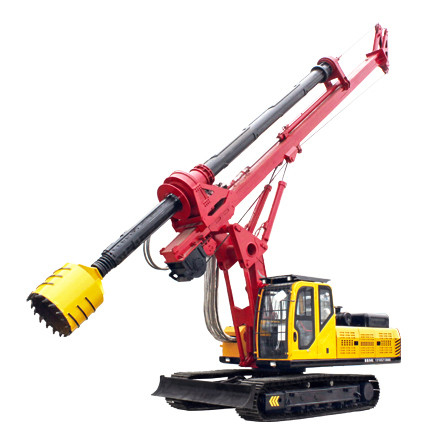

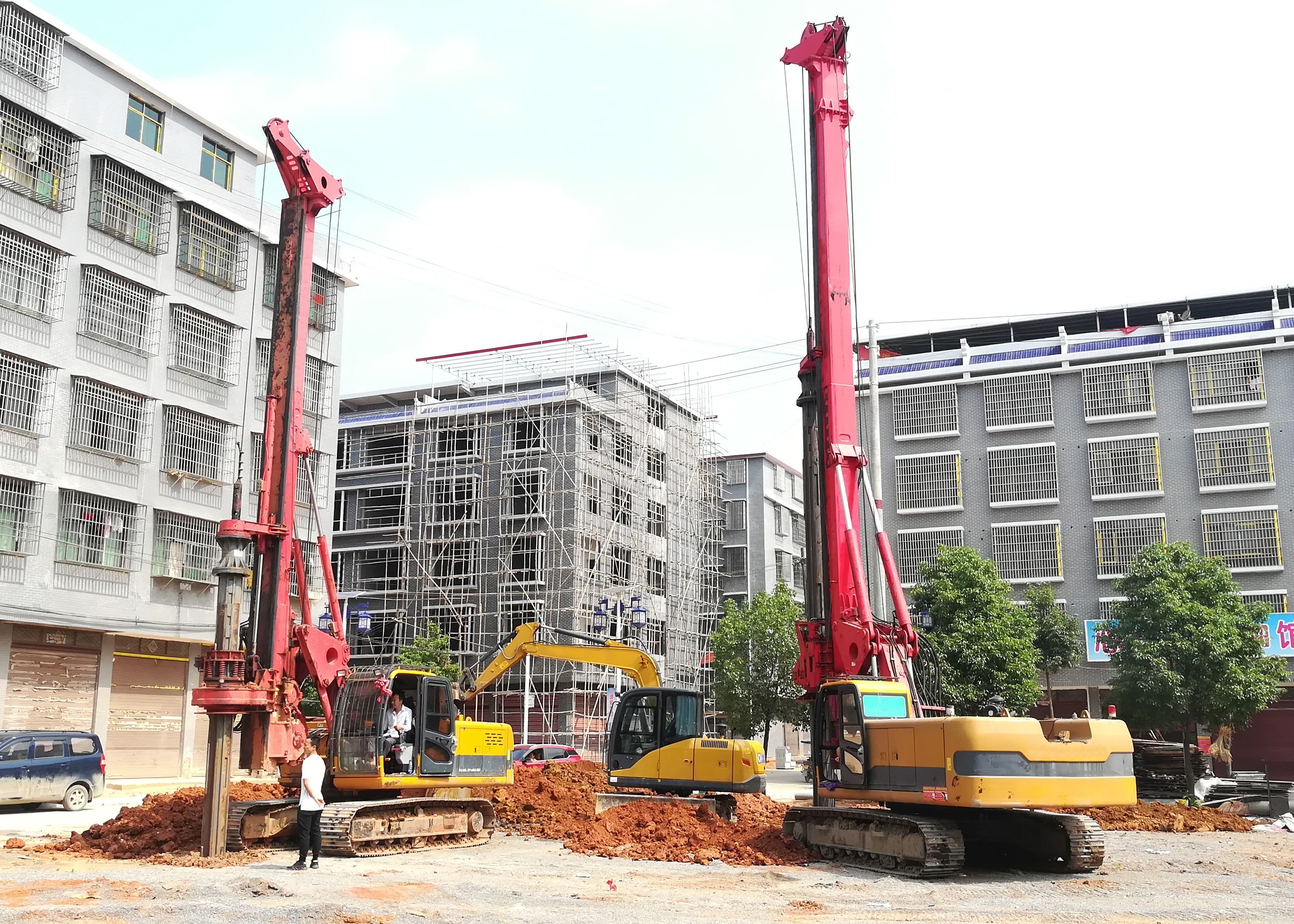

TR100D Rotary Hydraulic Drilling Rig with cummins engine max drilling depth 32m
TR100D rotary drilling is new designed self-erecting rig, which adopts advanced hydraulic loading back technology, integrates advanced electronic control technology.
Features and advantages of TR100D:
1. The power head has the function of high-speed soil rejection; the maximum speed can reach to 70r/min. It completely solves the problem of soil rejection difficulty for small diameter pile hole construction.
2. The main and vice winch are all located in the mast which are easy to observe the direction of the rope. It improves the mast stability and construction safety.
3. Cummins QSB4.5-C60-30 engine is chosen to meet the state III emission requirements with economic,
efficient, environmentally friendly and stable characteristics.
4. The hydraulic system adopts the international advanced concept, specially designed for the rotary drilling system. Main pump, power head motor, main valve, auxiliary valve, walking system, rotary system and the pilot handle are all import brand. The auxiliary system adopts the load-sensitive system to realize the on-demand distribution of the flow. Rexroth motor and balance valve are chosen for the main winch.

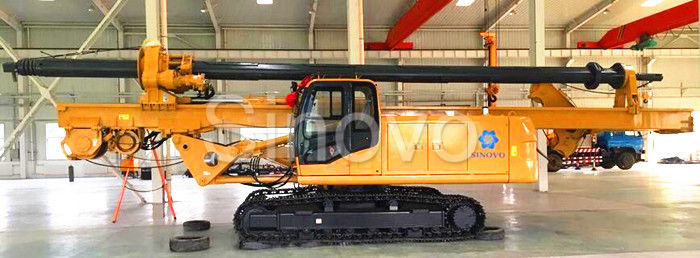

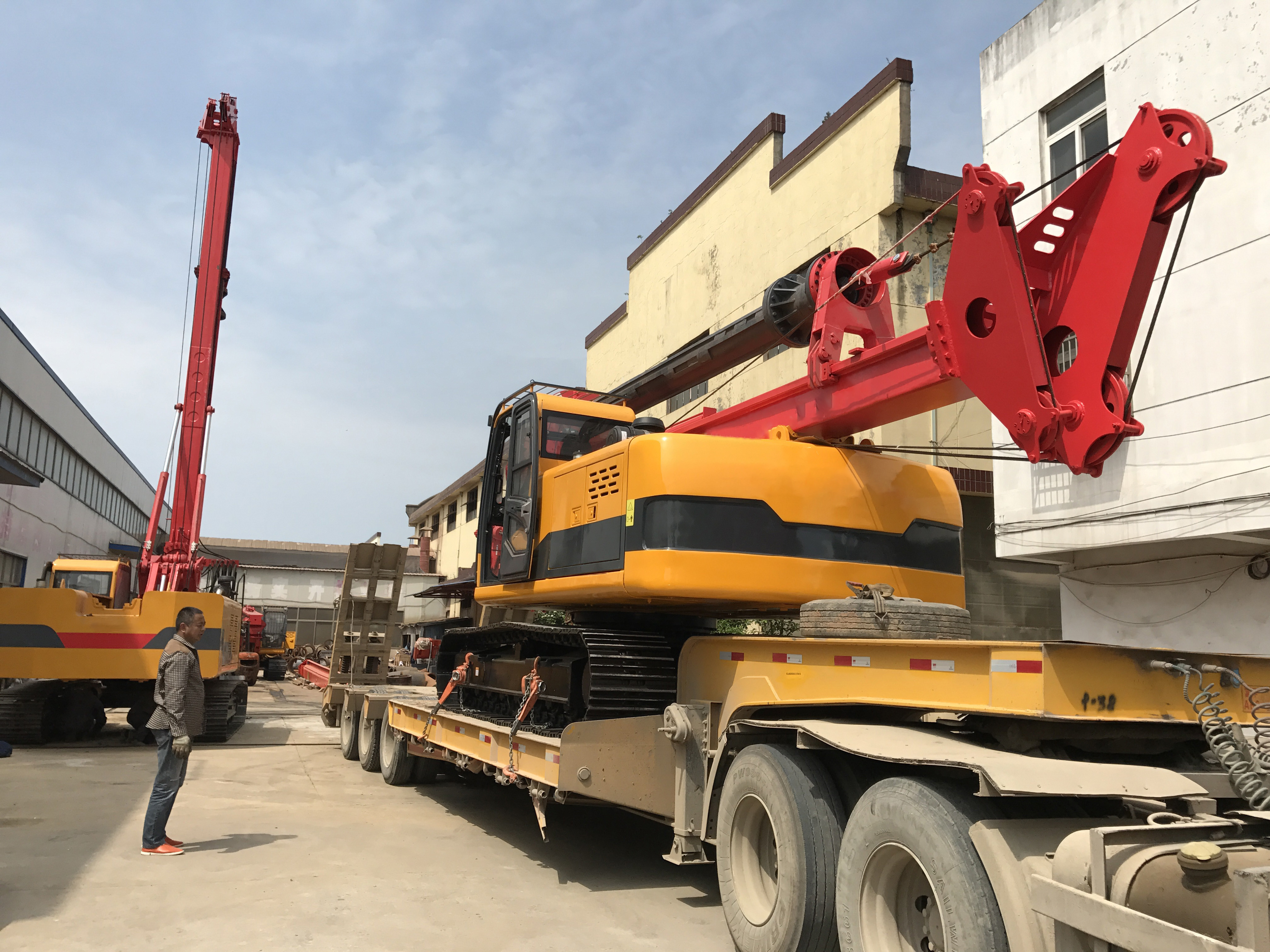

5. It is no need to disassemble the drill pipe before transporting which is transition convenient. The whole
machine can be transported together.
6. All the key parts of the electric control system (such as display, controller, and the inclination sensor) adopt imported components of international famous brands EPEC from Finland, and use air connectors to make special products for domestic projects.
7. The width of chassis is 3m which can work stability. The superstructure is optimizing designed; engine is designed at the side of the structure where all components are located with rational layout. The space is large which is easy for maintenance. The design can avoid the narrow space defects which the machine is modified from an excavator.
TECHNICAL DATA TR100D
|Max torque of rotary head||kN.m||100|
|Spin off speed||r/min||70|
|Max drilling depth||m||32|
|Max hole diameter||mm||Φ1200|
|Max pull force of main winch||kN||110|
|Max pull speed of main winch||m/min||70|
|Wire line diameter of main winch||mm||20|
|Max pull force of vice winch||kN||40|
|Max pull speed of vice winch||m/min||40|
|Wire line diameter of vice winch||mm||10|
|Mast side raking||︒||4|
|Max traveling speed||km/h||2|
|Max turnning speed||r/min||3|
|Crawler grounding length||mm||3450|
|Working position (LxWxH)||mm||6900x3000x1340|
|Travel position (LxWxH)||mm||12000x3000x3400|
