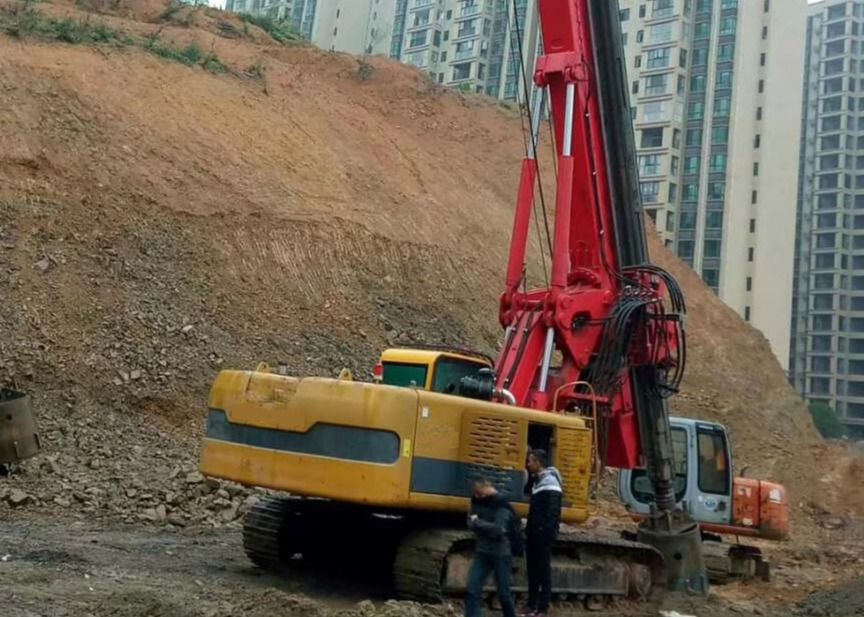

Sinovo 80kN.m Compact Hydraulic Drilling Rig Depth 25m and Diameter 1200mm with spin off function

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO/GOST
Model Number: TR80D
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 unit per month
Detail Information
Drilling Depth: 25m Drilling Diameter: 1200mm
Drilling Speed: 0-50r/min Description: Hydraulic Drilling Rig
Feature: Simple And Compact The Performance Model: TR80D
Key Components: PLC, Engine, Pump Applicable Industries: Piling Work
Warranty: 2000 Working Hours Or One Year
High Light:

rotary drilling machine

,

rotary rig machine

,

hydraulic rotary drilling rig


Product Description

TR80D Portable Excavator Bore Pile Hydraulic Drilling Rig Machine



TR80D rotary drilling is new designed self-erecting rig,which adopts advanced hydraulic loading back technology, integrates advanced electronic control technology. The whole performance of TR80D rotary drilling rig has reached advanced world standards.



The corresponding improvement on both structure and control, which makes the structure more simple and compact the performance more reliable and operation more humanized.



It is suitable for the following application:



Drilling with telescopic friction or interlocking Kelly bar-standard supply and CFA.



Features and advantages of TR80D:


1. The maximum rotation speed of rotary head can reach to 50r/min.


2. The main and vice winch are all located in the mast which are easy to observe the direction of the rope.It improves the mast stability and construction safety.


3. Cummins QSB4.5-C130-30 engine is chosen to meet the state Ill emission requirements with economic,efficient,environmentally friendly and stable characteristics.


4. The hydraulic system adopts the international advanced concept, specially designed for the rotary drilling system.Main pump,power head motor, main valve, auxiliary valve, walking system, rotary system and the lot handle are all import brand. The auxiliary system adopts the load-sensitive system to realize the onpildemand distribution of the flow. Rexroth motor and balance valve are chosen for the main winch.


5. It is no need to disassemble the kelly bar before transporting which is transition convenient.The whole machine can be transported together.



6. All the key parts of the electric control system(such as display, controller, and the inclination sensor)adopt imported components of international famous brands EPEC from Finland, and use air connectors to make special products for domestic projects.



7. The width of chassis is 2.6m which can work stability. The superstructure is optimizing designed;engine is designed at the side of the structure where all components are located with rational layout. The space is large which is easy for maintenance. The design can avoid the narrow space defects which the machineis modified from an excavator.



TR80D Main Technical Specification


TR80D Rotary drilling rig
Engine Model   Cummins
Rated power kw 97
Rated speed r/min 2200
Rotary head Max.output torque kN´m 80
Drilling speed r/min 0-50
Max. drilling diameter mm 1200
Max. drilling depth m 25
Crowd cylinder system Max. crowd force kN 90
Max. extraction force kN 90
Max. stroke mm 2500
Main winch Max. pull force kN 90
Max. pull speed m/min 60
Wire rope diameter mm 20
Auxiliary winch Max. pull force kN 40
Max. pull speed m/min 40
Wire rope diameter mm 16
Mast inclination Side/ forwards/ backwards ° ±4/5/90
Interlocking Kelly bar   ɸ299*4*7
Undercarrige Max. traveling speed km/h 1.6
Max. rotation speed r/min 3
Chassis mm 2600
Tracks mm 600
Caterpillar grounding Length mm 3284
Working Pressure of Hydraulic System Mpa 32
Total weight with kelly bar kg 26000
Dimension Working (Lx Wx H) mm 6100x2600x12370
Transportation (Lx Wx H) mm 11130x2600x3450



Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer, and our factory mainly produces series hydraulic rotary rig, hydraulic pile breaker, exploration equipment, core drilling rig and related piling equipment etc.



Q: What kind of product certification do you have?

A: Our series products have passed ISO9001, Gost and CE certifications.

We strictly perform quality inspection process before shipment and supply the best quality machines to our customers.



Q: Do you have after sales service?

A: Yes, we have professional service team to assist our clients . If you request, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, our clients can enjoy global after service support.



Q: How about the warranty policy ?

A: Most of our products support 1 year or 2000 working hours warranty, please consult customer service for specific products



Q: Do you test all your goods before delivery?

A: Yes, we have strict quality inspection process before shipment, and the clients also authorize SGS to inspect our machine.
