SD2000 Full Hydraulic Core Drilling Rig

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/ISO/SGS
Model Number: SD2000
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export package
Delivery Time: 7-10 work days
Payment Terms: L/C, T/T,
Supply Ability: 30 units per month
Detail Information
Name: SD2000 Full Hydraulic Core Drilling Rig Max Speed: 1120rpm
Max Torque: 4263N.m Overall Dimension: 9500*2240*2900mm
Total Weight: 16000kg Max Drilling Depth: Ф89mm(HQ) 1400m
High Light:

core drilling machine

,

core drilling equipment


Product Description

SD2000 Full Hydraulic Core Drilling Rig


SD-2000 full hydraulic crawler driving core drilling rig is mainly used for diamond bit drilling with wire line. Because of the use of foreign advanced technology,especially the mature rotation head unit, clamp machine, winch and hydraulic systems,the driling rig is widely used. It is not only applicable to the diamond and carbide drilling of solid bed, but also to seismic geophysical exploration,engineering geological investigation,micro-pile hole drilling, and construction of small/medium wells.





SD2000 Technical Specifications
Fundamental parameters Drilling depth Ф56mm(BQ) 2500m
Ф71mm(NQ) 2000m
Ф89mm(HQ) 1400m
Drilling angle 60°-90°
Overall dimension 9500*2240*2900mm
Total weight 16000kg
Hydraulic driving head
Using hydraulic piston motor and mechanical gear (Choose AV6-160 hydraulic motor)
Torque 1120-448rpm 682-1705Nm
448-179rpm 1705-4263Nm
Hydraulic driving head feeding distance 3500mm
Hydraulic driving head feeding system (single hydraulic cylinder driving) Lifting force 200KN
Feeding force 68KN
Lifting speed 0-2.7m/min
Rapid lifting speed 35m/min
Feeding speed 0-8m/min
Rapid feeding high speed 35m/min
Mast displacement system Mast move distance 1000mm
Cylinder lifting force 100KN
Cylinder feeding force 70KN
Clamp machine system Range of the clamping 50-200mm
Clamping force 120KN
Unscrew machine system Unscrew torque 8000Nm
Main winch Lifting speed 33,69m/min
Lifting force single rope 150,80KN
Diameter of rope 22mm
Cable length 30m
Secondary winch Lifting speed 135m/min
Lifting force single rope 20KN
Diameter of rope 5mm
Cable length 2000m
Mud pump Model BW-350/13
Flow rate 350,235,188,134L/min
Pressure 7,9,11,13MPa
Engine(diesel Cummins) Model 6CTA8.3-C260
Power/speed 194KW/2200rpm
Crawler Wide 2400mm
Max.transit sloping angle 30°
Max.loading 20t





Main Features


(1) Rotation head unit is a piston motor and mechanical gear style which adopts the foreign technique. It has the wide range of speed.Max torque is 4263N.m, so it can satisfy the different project construction and drilling process.When the drill bit is stuck at the end of the hole,it can solve the problem easily by reverse hitting function.
(2) Max speed of the rig is 1120 rpm with torque 680N. m. It has a high torque at high speed which is suitable for deep-hole driling.
(3) The feeding and lifting system uses the piston hydraulic cylinder to drive the rotation head directly with a long travel and high lifting force which is convenient to the deep-hole core drilling work.
(4) The rotation head unit can move away from the drilling hole, match the clamp and unscrew machine and finish the rope core drilling operation easily, also it does not need the conventional second platform work,especially replace the labor force to open and close the rotation head unit when doing the slant-hole drilling operation.
(5) Rig has the high lifting speed which saves lots of auxiliary time. It is easy to wash the hole when doing the full driving operation, enhancing the drilling efficiency.

(6) The rail of the main mast is l-beam butter-weld steel construction to make sure the high rigidity between the rotation head unit and the main mast. So it has a steady rotation even with high speed which improves the drilling efficiency.
(7) The main winch is imported product with NQ2000M single rope steady and reliable lifting ability.
(8) The wire line winch can get to max speed 205m/min at empty drum, which saved the auxiliary time.
(9) The rig has the clamp and unscrew machine, easy to disassemble the drilling rod and reduces the labor intensity.
(10) Rig feeding system adopts the back pressure-balancing technology. The user can conveniently get the drilling pressure at the bottom of the hold and increase the drill bit life.
(11) The hydraulic system is reliable, mud pump and mud mixing machine are hydraulic controlled. The integrated operation makes it easy to handle all kinds of incidents at the bottom of the hole.
(12) The movement of the crawler is linear controlled, safe and reliable, can climb onto the flat truck by itself which eliminates the cable car's cost.
(13) The rig is with high reliability, low cost of maintenance and repairing.

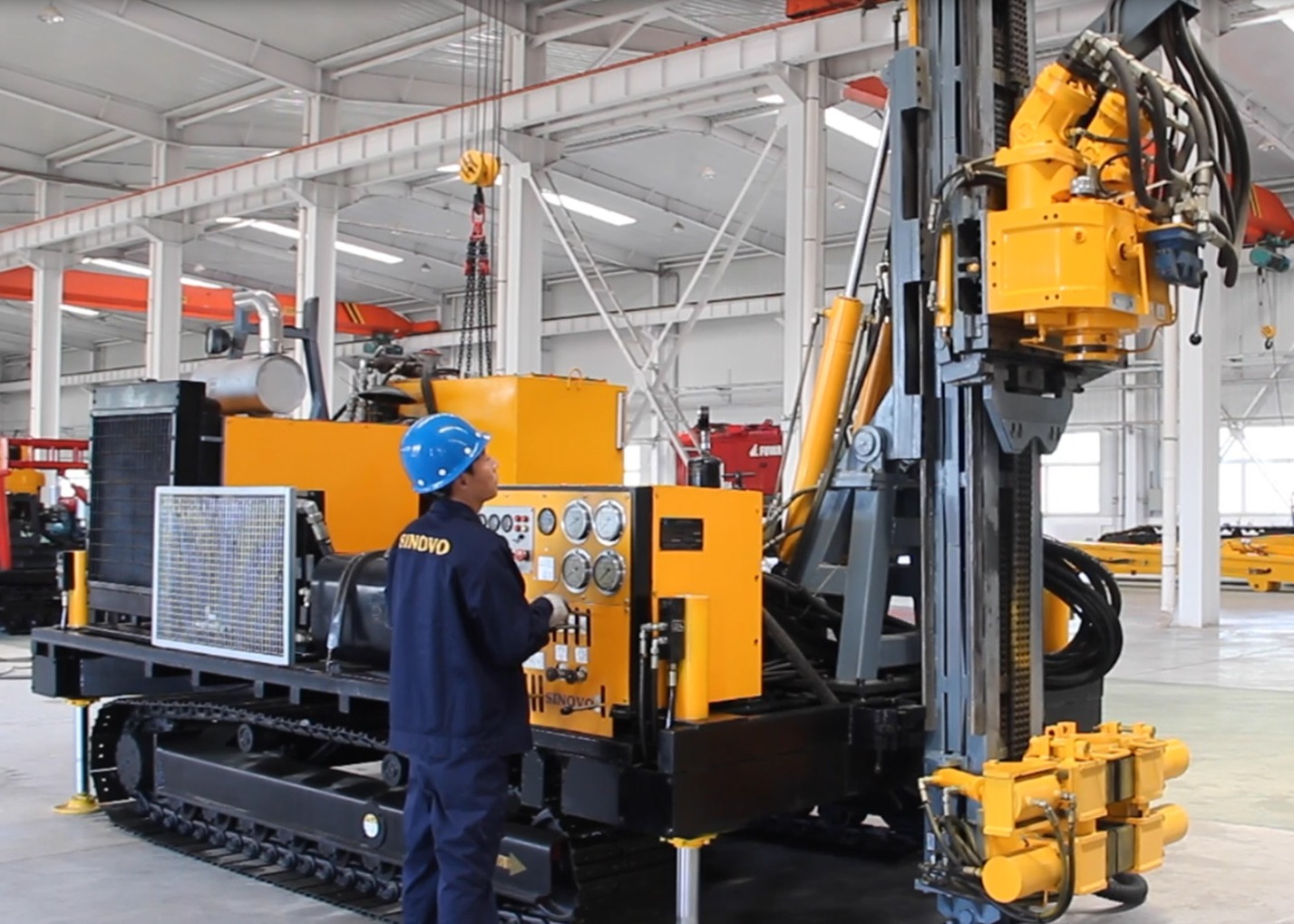

SD2000 Full Hydraulic Core Drilling Rig 0
