170kn Force Hydraulic Piling Rig Max Pile Hammer 300mm Max Pile Depth 20m

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/ISO
Model Number: TH-60
Minimum Order Quantity: 1
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Detail Information
Model: TH-60 Total Weight: 39t
Max pile Hammer: 300mm Max Pile Depth: 20mm
Engine Model: C7 STH Max Pull-down Force: 170kn
Highlight:

foundation equipment

,

drilling machine


Product Description

TH-60 hydraulic pilling rig is a newly-designed construction machine that is widely used in the construction of highways, bridges, and building etc.



It is based on Caterpillar undercarriage and consist of hydraulic impact hammer which includes hammer, hydraulic hoses, power pack, bell driving head.



This hydraulic pilling rig is a reliable, versatile and durable machine. Its max pile hammer is 300mm and the max pile depth is 20m per impacting which allow our pilling rig to suit requirements of many foundation engineering projects.As a reliable pilling rig manufacturer in China, SINOVO International Company mainly produces hydraulic pilling rigs, which can be used together with hydraulic pile hammer, multi-purpose pile hammer, rotary pilling rig, and CFA pile drilling equipment.



As a result of modular design of their components, our hydraulic pilling rigs can be used in a variety of applications when fitted with the following devices:
1. different types of mast, each with different extension pieces and components
2. different models of rotary heads with optional hydraulic rotary drilling pile hammer, auger
3. service winch





TH-60 Hydraulic piling Rig



Technical Parameters
  EURO Standards U.S. Standards
Construction method of the pile drummer CFA construction method CFA construction method
The weight of hammer core 5000kg 11023lb
The journey of hammer body(adjustable) 200-1200mm 7.9-47inch
Max beat power 60KJ 60KJ
Beat frequency(adjustable) 30-80times/minute 30-80times/minute
Max pile driving length 16m 52.5feet
Max pile driving 400*400mm 15.7-15.7inch
Max drilling depth 30m 98feet
Drilling diameter 400mm 15.7inch
Max drilling torque 60KN.m 44254lbf.ft
Drilling speed 6-23rpm 6-23rpm
Max pull-down force 170kn 38218lbf
Engine model C7 STH C7 STH
Rated power 186KW 249hp
Main winch pull force(the first layer ) 170kn 38218lbf
Auxiliary winch pull force(the first layer) 110kn 24729lbf
Chassis length 4940mm 194.5inch
Track shoe width 800mm 31.5inch
Undercarriage CAT325D CAT325D
Total weight 39T 85980lb

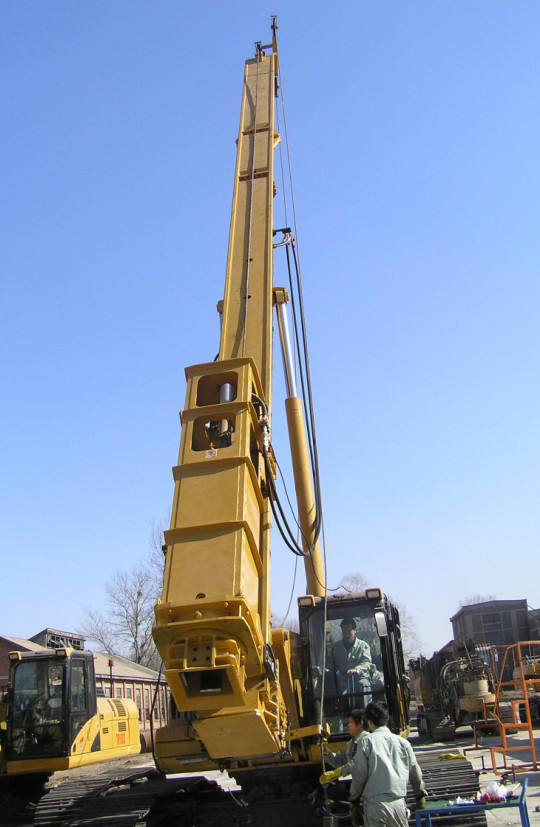

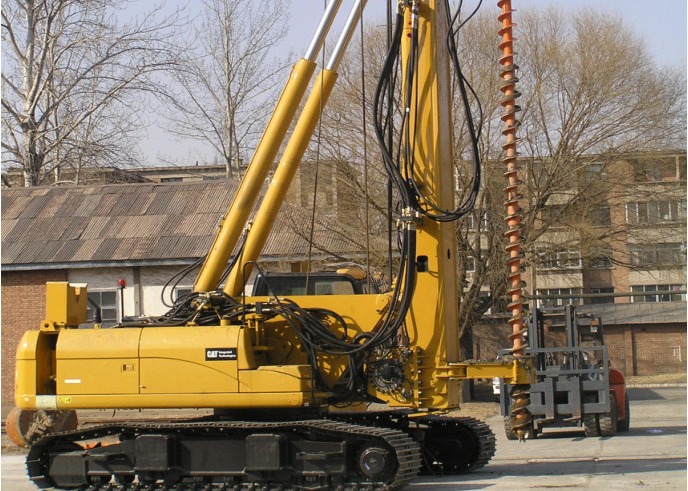

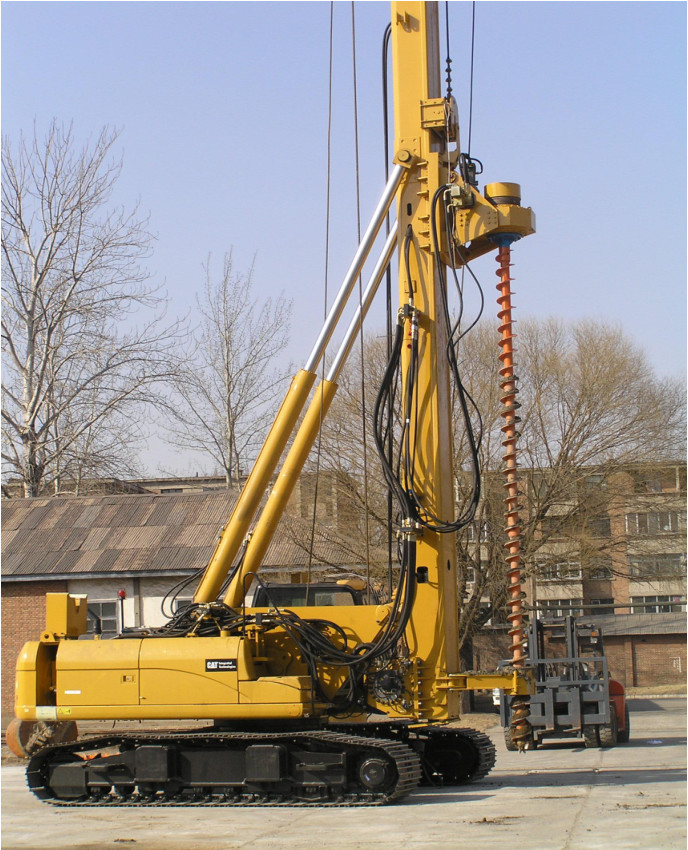

Photo of th-60 hydraulic pile driver:



170kn Force Hydraulic Piling Rig Max Pile Hammer 300mm Max Pile Depth 20m 0170kn Force Hydraulic Piling Rig Max Pile Hammer 300mm Max Pile Depth 20m 1





Configuration

--by first class key components:
Base: Original Caterpillar 325D base
Engine: C-7 engine with ACERT™ technology
Hydraulic systems adopt Rexroth motor and wave
Electric systems are from Pal-Fin auto-control
