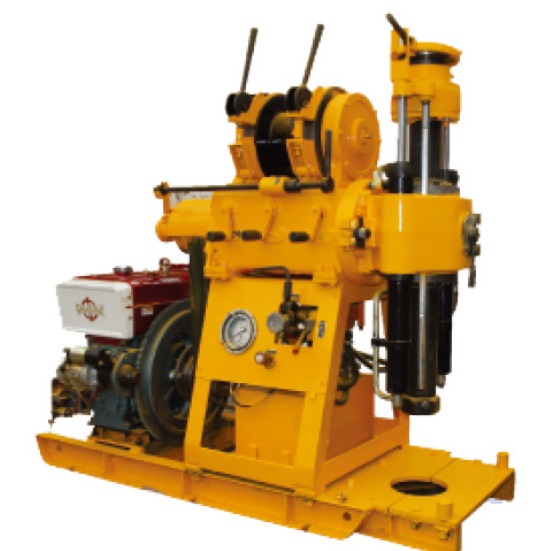

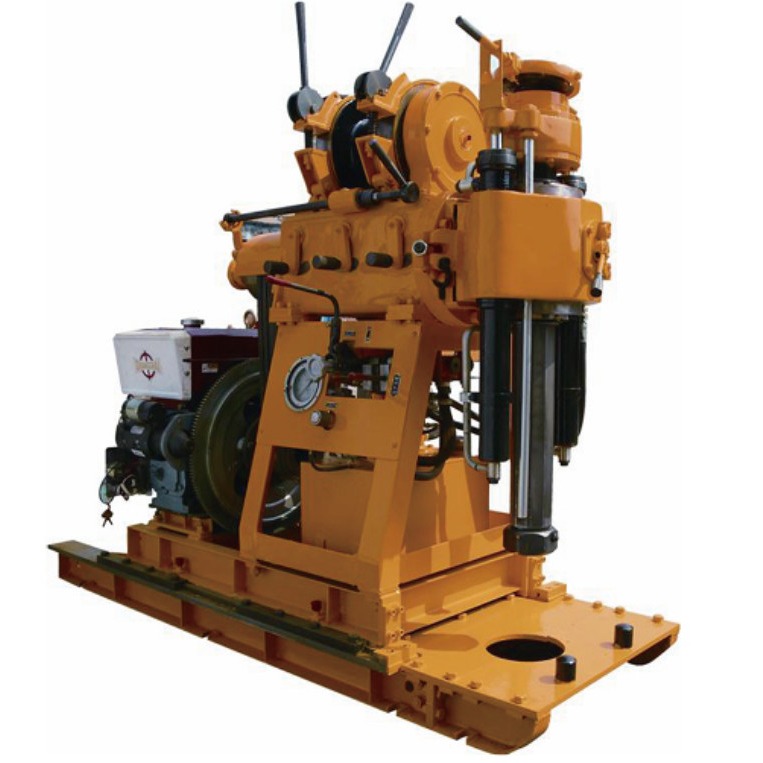

Geological XY-200B Spindle Type Core drilling rig 200mDrilling Depth

Basic Information
Place of Origin: CHINA
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: XY-200B
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Exporting Standard
Delivery Time: 7-10 Work days
Payment Terms: L/C, T/T,
Supply Ability: 30 units per month
Detail Information
Model: XY-200B Type: Geological Core Driling, Physical Exploration.
Other Name: Geological Drilling Rig Max Drilling Depth: 200m
Diameter Of Kelly Bar: 50mm The Angle Of Dilling Hole: 0° -90°
Dimension(mm): 1800*950*1450 Weight: 700kg
High Light:

Spindle Type Core Drilling Rig


Geological Core Drilling Rig


200m Core Drilling Machine

Product Description

Geological XY-200B Spindle Type Core drilling rig 200mDrilling Depth


Basic Information:


As a professional core drilling rig manufacturer in China, we produce core crawler drilling rigs, core trailer drilling rigs, and full hydraulic core drilling rigs for you to choose from. These products are reliable, versatile, and come in various specifications to satisfy your different drilling applications.

Geological drilling rigs are often used for coring, which retrieve core samples from the ground. Reprehensive core and rock debris are often obtained to help determine the subsurface geology and amount of mineral resources.

We manufacture core drilling rigs including spindle type and full hydraulic type for a wide range of applications: solid mine bed exploration drilling with the depth of 100-4200 meters, engineering geological exploration, superficial-zone petroleum and natural gas mining, mine gallery ventilation and water discharge tunnel drilling. And according to the customer need, the rig can be mounted on skid, crawler or truck.

core drilling rigs- spindle type is ideally suited for exploration, mining, water well and pile grouting hole drilling operations projects for which ease of transport, mobility and compact dimensions are important factors.


XY-200B series core driling rig is light type drilling rig with large torque and feed by oil pressure, which was developed on the basis of XY-1B, and also have the function of reverse rotation of the gear. User can choose the machine by considering if the driling rig equip the mud pump or mounted on skid.



Application Range:

(1) Railway, Water & Electricity, transportation, bridge, dam foundation and other buildings for engineering geological exploration .
(2) Geological core driling, Physical exploration.
(3) Drilling for small grout hole and blast hole.
(4) Small well drilling.



Main Features:

(1) Oil pressure feeding, improving drilling efficiency, reducing the labor intensity.
(2) The machine have top ball clamping structure and hexagonal kelly bar, can realize the Non-stop recheck. High working efficiency, easy operation, safe and reliable.
(3) Equipped with a pressure gauge at the bottom of hole, it is convenient to know the situation in the hole.
(4) The handles collect, the machine is easy to operation.
(5) Dilling rig structure is compact, small volume, light weight, easy to disassemble and moving .it is suitable to work on the plain and mountain area.
(6) Spindle is eight side structure, expand diameter of spindle, which can enter into Kelly bar with large diameter and suitable to transmission with large torque.
(7) Diesel engine adopts electric start.



Technical Specifications:


(1)Fundamental parameters
Dilling depth: 75mm      200m
                      91mm      150m
                      150mm    100m
                      200mm    50m
Diameter of Kelly bar : 50mm
The angle of dilling hole: 0° -90°


Model Dimension(mm) Weight(kg)
XY-200B 1800*950*1450 700

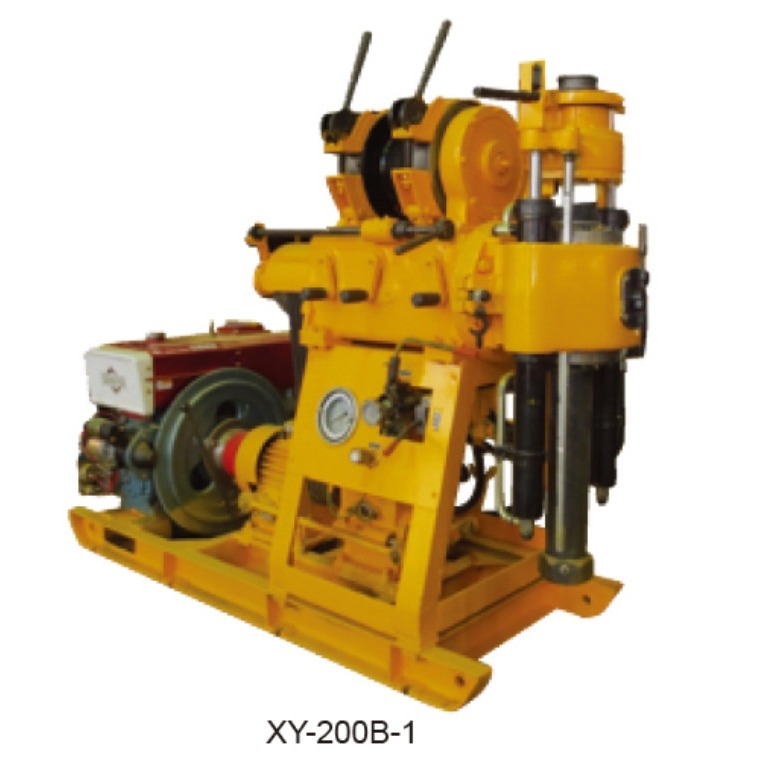

XY-200B-1 1780*950*1350 630
XY-200B-2 1450*850*1350 550
XY-200B-3 1860*950*1450 770
XY-200B(GS) 1800*950*1450 700
XY-200B(GS)-1 1780*950*1350


XY-200B(GS)-2 1450*850*1350 550
XY-200B(GS)-3 1860*950*1450 770


(2) Rotating device
Positive rotation: 71, 142, 310, 620rpm
Reverse rotation: 71, 142, 310, 620rpm
Spindle stroke: 450mm
Lifting capacity of spindle: 25KN
Feeding capacity of spindle: 15KN
Maximum working torque: 1600N.m
Maximum upward moving speed without loading: 0.05m/s
Maximum downward moving speed without loading: 0.067m/s
(3) Winch
Rotate speed of drum:16, 32, 70, 140r/min
Lifting speed (second layer): 0.17, 0.34, 0.73, 1.46m/s
Maximum lifting capacity (single rope): 20KN
Rope diameter: 11mm
Drum diameter: 165mm
Brake wheel diameter: 280mm
Brake belt diameter: 55mm
(4)Skid device of drilling rig
Skid stroke: 400mm
Distance of leaving hole: 250mm
(5) Hydraulic oil pump
Model: YBC-12/80
Nominal pressure: 8Mpa
Flow: 12L /min
Nominal speed: 1500rpm


(6)Power unit
Model: ZS1115M
Rated power: 16.2KW
Rated rotating speed: 2200r/min
(7)Mud pump
Maximum discharge capacity: 95L/min
Maximum allowed pressure: 1 .2Mpa
Working pressure: 0.7Mpa
Number of stroke (numbers/min): 120
Cylinder liner diameter: 80mm
Piston stroke: 100mm
If user choose drilling rig without mud pump, we suggest to use variable mud pump which not less than BW-100 type.



After- sales Service:

As a long-established dilling rig manufacturer in China, we Beiing SINOVO International Company (SINOVO Heavy Industry Co., Ltd ) do business with reputation and word of mouth. We are dedicated to provide customers perfect service. To make customers feel secure in using our products, we establish a complete after-sales service system, and provide a one-year warranty for our dilling rigs. During the warranty period, we provide free debugging, operator training and maintenance service. In addition, we also offer free spare parts. As our main components are imported from world renowned companies, our overseas customers can maintain these components easily.
