TR280DI Heavy Construction Machine Bored Piling Equipment Hydraulic Earth Piling Rig

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR 280DI
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: International Export Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A
Supply Ability: 30 set per month
Detail Information
Brand NAME: Sinovo TR280DI Rotary Drilling Rig Max Drilling Depth: 85m
Max Hole Diameter: 2500mm Engine Model: CAT C-9 Or SCANIA
Rated Power: 261kw Max Torque: 280kN.m
Track Shoe Width: 800mm Undercarriage: CAT Or Doosan
High Light:



85m Rotary Drilling Rigs


2500mm Rotary Drilling Rigs

Product Description

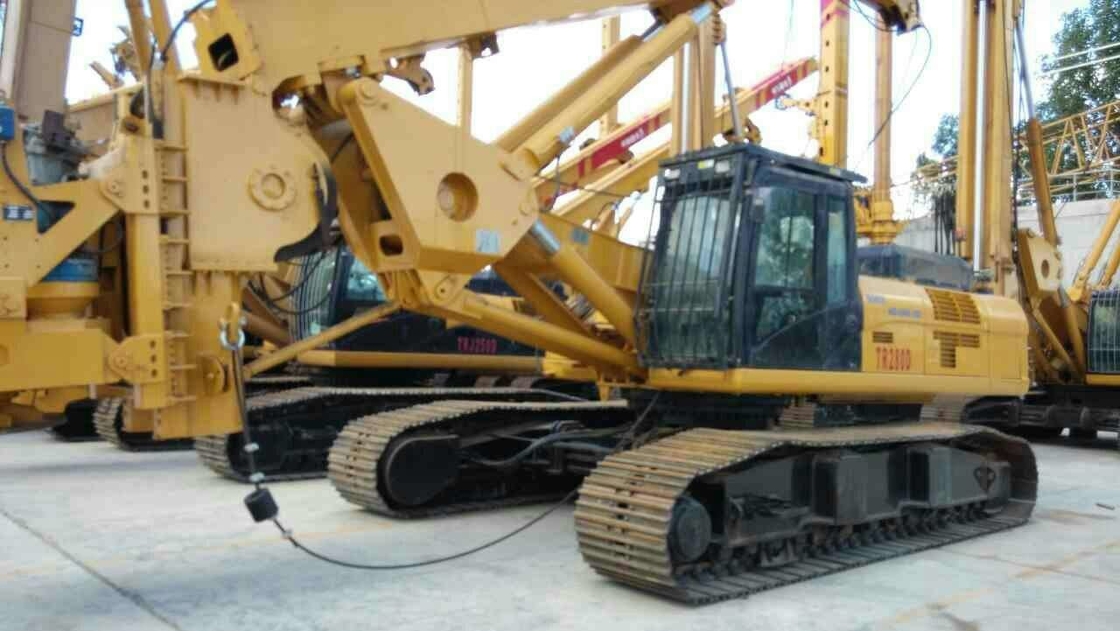

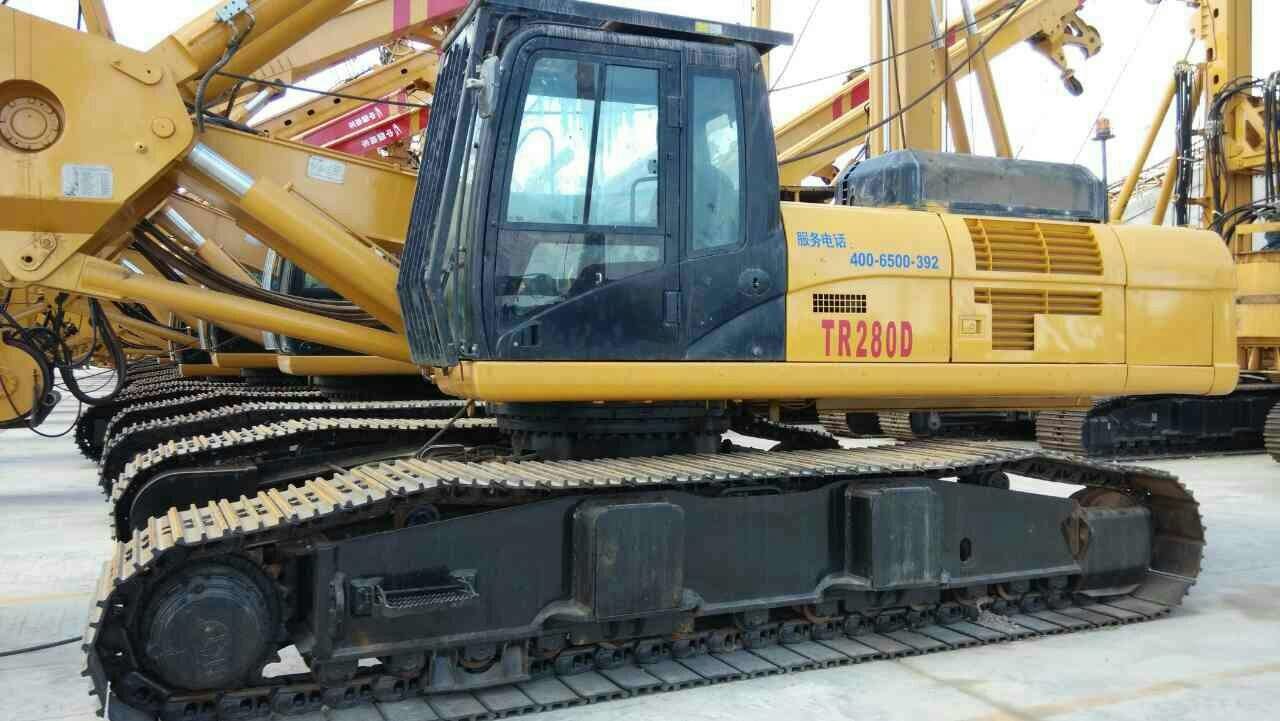

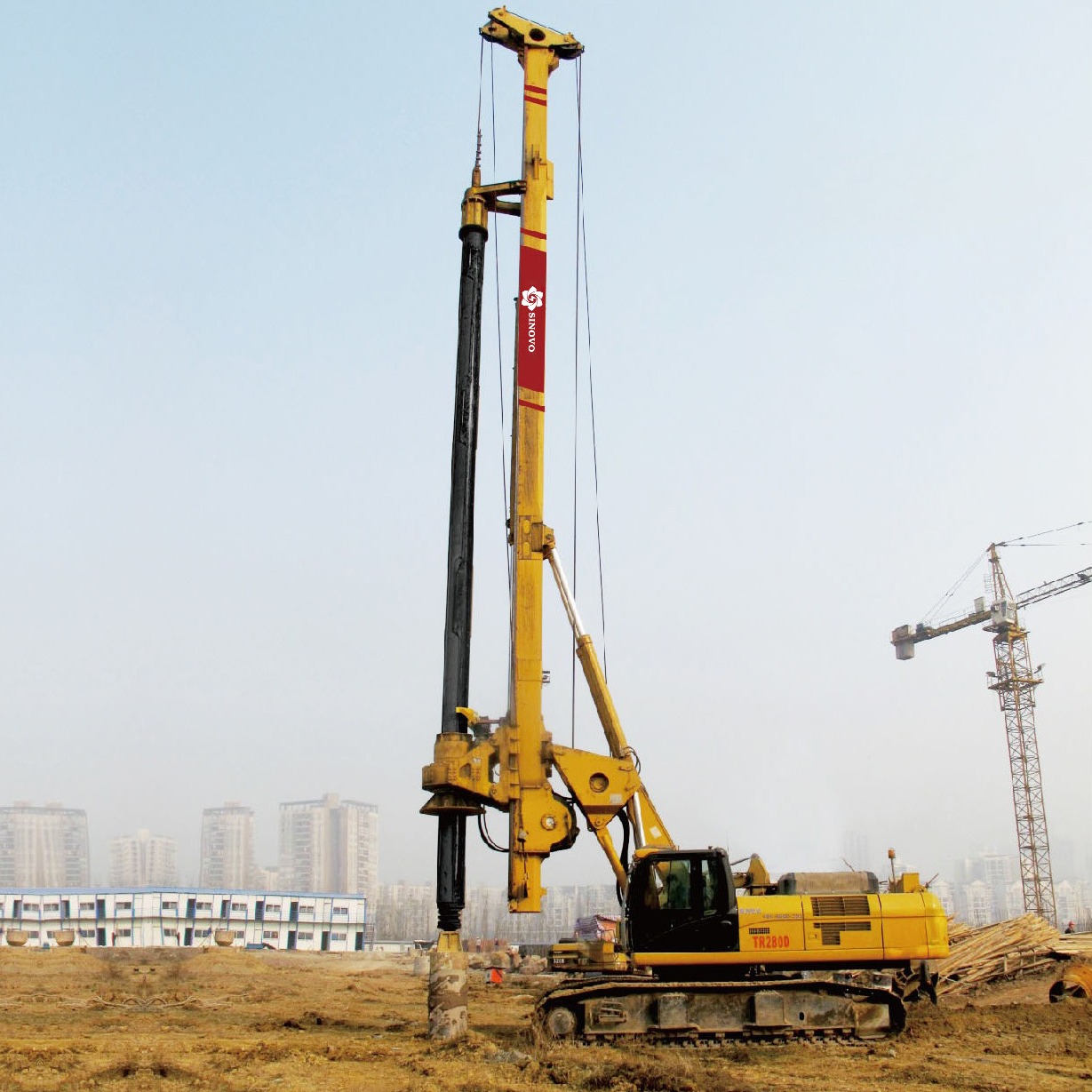

TR280D rotary drilling rig mounted on original CAT chassis or Doosan base as optional
Improved response and better calibrated control of hydraulics make rig operations smoother and performing.
  • High productivity for each duty cycle
  • Plug & Play system for all drilling technologies
  • Low noise and minimun environmental impact
  • Absolute efficency
  • Extreme performance
  • Smart and quick maintenance
  • New operator's cabin
  • Pull down winch or cyliner system as optional
Product Description


Technical Parameters
 Euro StandardsU.S. Standards
Max drilling depth85m279ft
Max hole diameter2500mm98in
Engine modelCAT C-9CAT C-9
Rated power261KW350HP
Max torque280kN.m206444lb-ft
Rotating speed6~23rpm6~23rpm
Max crowd force of cylinder180kN40464lbf
Max extraction force of cylinder200kN44960lbf
Max stroke of crowd cylinder5300mm209in
Max pulling force of main winch240kN53952lbf
Max pulling speed of main winch63m/min207ft/min
Wire line of main winchΦ30mmΦ1.2in
Max pulling force of auxiliary winch110kN24728lbf
UndercarriageCAT 336DCAT 336D
Track shoe width800mm32in
width of crawler3000-4300mm118-170 in
Whole machine weight (with kelly bar)78T78T



Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. Any other good service your company can provide?
A3. Yes,we can provide good after-sale and fast delivery
