XY-200B Rock 200m ZS1115M Engine Geological Drilling Rig

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: XY-200B
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 set per month
Detail Information
Name: 750-200m Depth Geological Drilling Rig Model: XY-200B
Certification: CE/GOST/ISO9001 Drilling Depth: 50-200m
Drilling Dia: 75-200mm Spindle Stroke: 450mm
Diesel Engine Model: ZS1115M Dimension: 1800*950*1450mm
Highlight:

XY-200B

,

200m Geological Drilling Rig

,

ZS1115M engine Geological Drilling Rig


Product Description

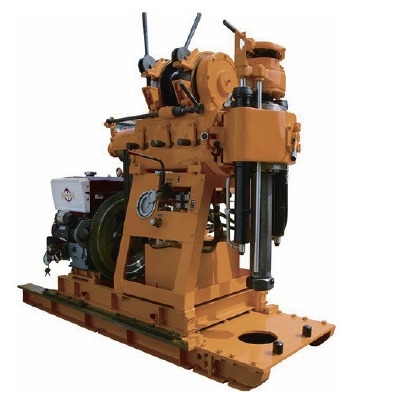

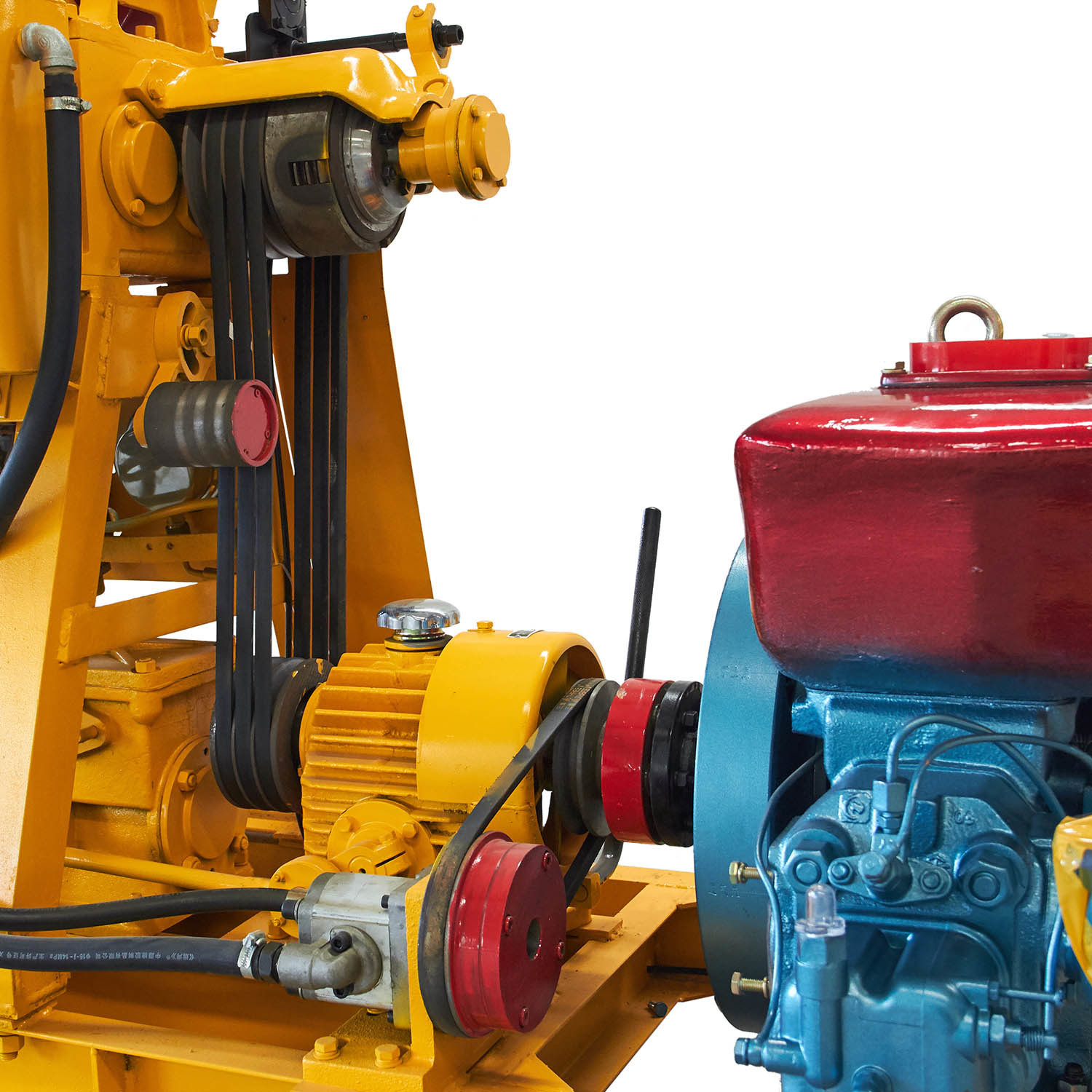

XY-200B Rock 750-200m Depth Geological Drilling Rig



XY-200B series core drilling rig is light type drilling rig with large torque and feed by oil pressure, which was developed on the basis of XY-1B, and also have the function of reverse rotation of the gear. User can choose the machine by considering if the drilling rig equip the mud pump or mounted on skid.



1. Application Range



(1) Railway, Water & Electricity, transportation, bridge, dam foundation and other buildings
for engineering geological exploration .
(2) Geological core drilling, Physical exploration.
(3) Drilling for small grout hole and blast hole.
(4) Small well drilling



2. Main Features



(1) Oil pressure feeding, improving drilling efficiency, reducing the labor intensity.
(2) The machine have top ball clamping structure and hexagonal kelly bar, can realize the Non-stop recheck. High working efficiency, easy operation , safe and reliable.
(3) Equipped with a pressure gauge at the bottom of hole, it is convenient to know the situation in the hole.
(4) The handles collect, the machine is easy to operation.
(5)Drilling rig structure is compact, small volume, light weight , easy to disassemble and moving .it is suitable to work on the plain and mountain area .
(6) Spindle is eight side structure, expand diameter of spindle , which can enter into Kelly bar with large diameter and suitable to transmit with large torque.
(7) Diesel engine adopts electric start.



3. Technical Specifications





Fundamental
parameters
Drilling depth Φ75mm 200m
    Φ91mm 150m
    Φ150mm 100m
    Φ200mm 50m
  Diameter of Kelly bar 50mm
  Angle of drilling hole 0°-90°
Rotating device Rotate speed of spindle Positive rotating 71,142,310,620
    Reverse rotating 71,142,310,620
  Spindle stroke 450mm
  Lifting capacity of spindle 25KN
  Feeding capacity of spindle 15KN
  Max. working torque 1600Nm
  Max. upward moving speed without loading 0.05m/s
  Max. downward moving speed without loading 0.067m/s
Winch Rotate speed of drum 16,32,70,140r/min
  Lifting speed(2nd layer) 0.17,0.34,0.73,1.46m/s
  Maximum lifting capacity (single rope ) 20KN
  Rope diameter 11mm
  Drum diameter 165mm
  Brake wheel diameter 280mm
  Brake belt diameter 55mm
Skid device of
drilling rig
Skid stroke 400mm
  Distance of leaving hole 250m
Oil pump Model No. YBC-12/80
  Rated discharge capacity 12L/min
  Rated pressure 8MPa
  Rated rotating speed 1500r/min
Power Diesel engine model ZS1115M
  Rated power 16.2KW
  Rated rotating speed 2200r/min
Mud pump Max. discharge capacity 95L/min
  Max. allowed pressure 1.2Mpa
  Working pressure 0.7Mpa
  Number of stroke(numbers/min) 120
  Cylinder liner diameter 80mm
  Piston stroke 100mm





FAQ


Q1.What is the main function of our mining drilling machine?
Ans.: It has different models used for all kinds of working site.

Q2. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.

Q3. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q4. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q5. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty(except for the hammer), during this time all accessories broken can be changed for a new one.And we provide videos for machine install and operation.

Q6. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
