SHY-4 Full Hydraulic Core Drilling Rig 1500m Depth Geological Drilling Machine

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SHY-4
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: T/T&L/C
Supply Ability: 30000 Units Per Year
Detail Information
Name: SHY-4 Full Hydraulic Core Drilling Rig Geological Drilling Machine Max Drilling Depth: 1500m
Drilling Diameter: 114mm Drilling Angle: 45°- 90°
Max Torque: 2410N.m Chuck Mode: Hydraulic
Main Pump Pressure: 27Mpa Weight: 5300kg
High Light:

GOST Geological Drilling Machine


1500m Depth Core Drilling Rig


1500m Depth Geological Drilling Machine

Product Description

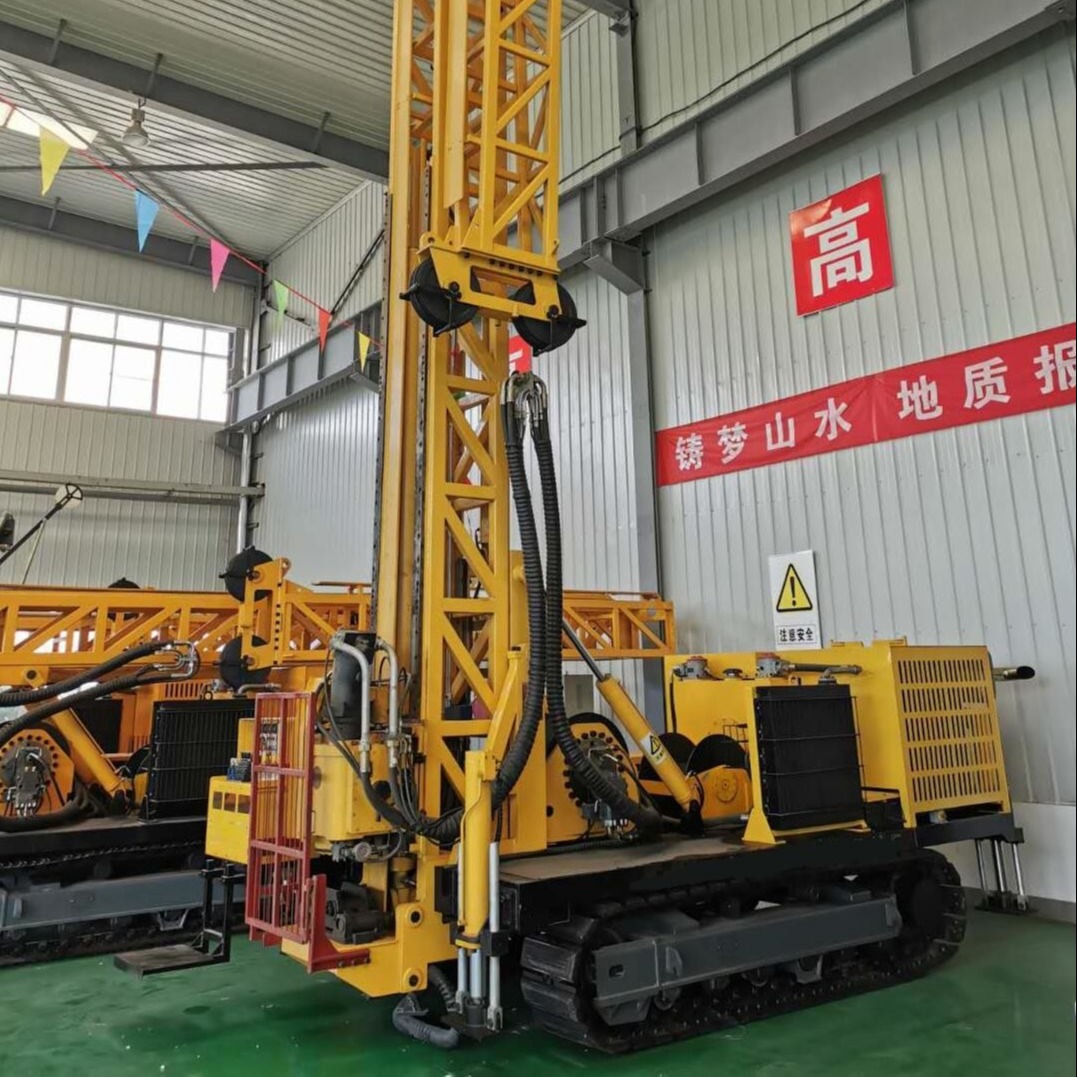

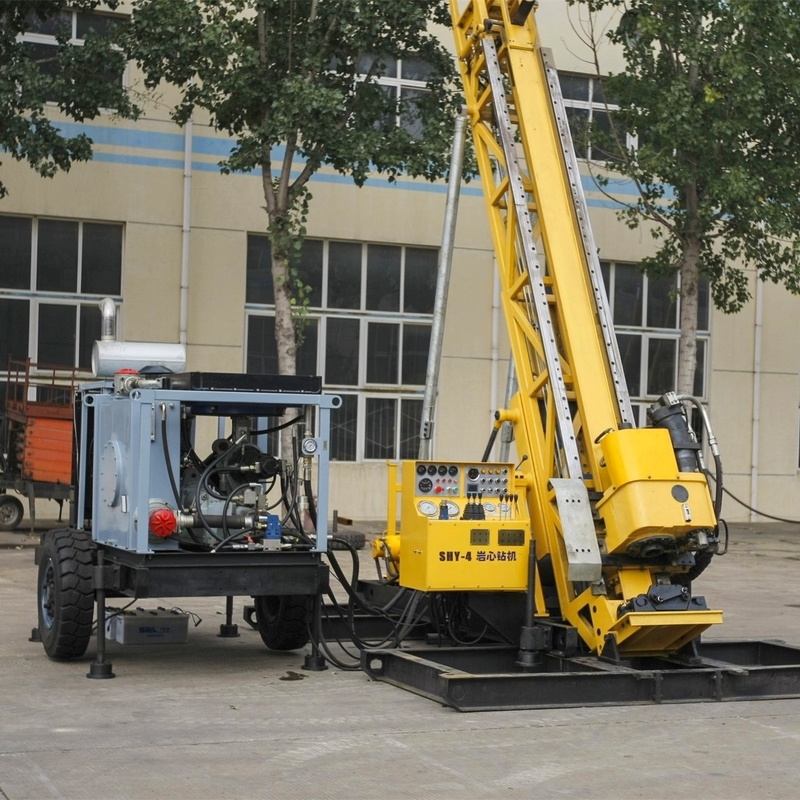

SHY-4 Full Hydraulic Core Drilling Rig Geological Drilling Machine


SHY-4 is a compact diamond core drill rig that has been designed with modular sections. This allows for the rig to be disassembled into smaller parts, improving mobility, whereby the access for the sites are difficult or limited (Mountainous Terrains).



This drill rig is suited for the following drilling applications:


1.  Diamond core drilling

2. Directional drilling

3. Reverse circulation continuous coring

4.  Percussion rotary

5. Geo-tech

6. Water bores

7. Anchorage



Technical parameters


  Item SHY-4
Drilling capacity Ф55.5mm(BQ) 1500m
Ф71mm(NQ) 1200m
Ф89mm(HQ) 500m
Ф114mm(PQ) 300m
Rotator Capacity RPM 40-920rpm
Max Torque 2410N.m
Max Feeding Power 50kN
Max Lifting Power 150kN
Diameter of Chuck 94mm
Feed stroke 3500mm
Capacity of Main
Hoisting Force(single wire/dual wire) 6300/12600kg
Main hoist speed 8-46m/min
Steel Wire Diameter 18mm
Steel Wire Length 26m
Capacity of Steel
Wire Hoist
Hoisting Force 1500kg
Main hoist speed 30-210m/min
Steel Wire Diameter 6mm
Steel Wire Length 1500m
Mast Mast Height 9.5m
Drilling Angle 45°- 90°
Mast Mode Hydraulic
Motivity Mode Elect/ Engine
Power 55kW/132Kw
Main Pump Pressure 27Mpa
Chuck Mode Hydraulic
Clamp Hydraulic
Weight 5300kg
Transport Way Tyre Mode



Product Features:

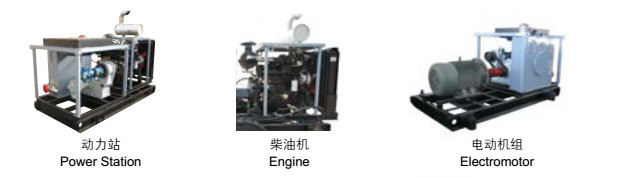

1. The rig being comprised from modular components, can be disassembled into smaller and more transportable sections. With the heaviest components weighing less than 500kg/760kg. Switching the power pack between Diesel or Electric is quick and effortless even when on site.

2. The rig offers a smooth hydraulic transmission, operating at low noise levels. Whilst providing convenience to the operation is labor saving and focuses on promoting work safety on site.

3. The rotation head (Patent NO.: ZL200620085555.1) is a step-less speed transmission, offering a wide range of speeds and torque (up to 3 speeds), the rotation head can be side racked via hydraulic rams for added convenience and efficiency especially during rod trips.

4. Hydraulic chuck jaws and foot clamps (Patent NO.: ZL200620085556.6) offers a fast clamping action, designed to be reliable, neutral. The foot clamps are designed to suit various different drill rod sizes via the use of different size slip jaws.

5. Feed stroke at 3.5 meters, reduces operation time, improves drilling efficiency and reduces inner tube core blockages.

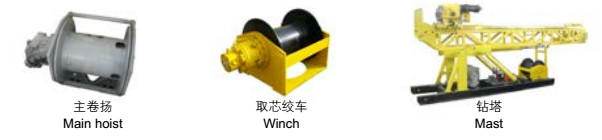

6. Braden main winch (USA) features a stepless speed transmission from Rexroth. Single rope hoist capacity up to 6.3t (13.1t on double). Wireline winch is also equipped with a stepless speed transmission, offering a wide speed range.

The rig benefits from a tall mast, which allows for the operator to pull rods at up to 6m lengths, making rod trips faster and more efficient.

7. Equipped with all the essential gauges, including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque gauge, Water pressure gauge. Enabling the driller to oversee the entire operation of the drill rig at a simple glance.
