| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | QDG-2B-1 |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiation |
| Packaging Details: | International standard packaging |
| Delivery Time: | on stock |
| Payment Terms: | T/T&L/C |
| Supply Ability: | 30 per month |
| Name: | Anchor Drilling Rig | Model: | QDG-2B-1 |
|---|---|---|---|
| Drilling Depth: | 20-100m | Drilling Diameter: | 220-110mm |
| Rotation Unit Feeding System Type: | Single Cylinder, Chain Belt | Power: | 37KW |
| Mast Displacement System Mast Move Distance: | 965mm | Total Weight: | 2500kg |
| High Light: | 110mm geological drilling rig,100m geological drilling rig,geological drilling rig 37kw |
||
100m 110mm QDG-2B-1DTH Suitable For Urban Construction Anchor Drilling Rig
1. Application Range

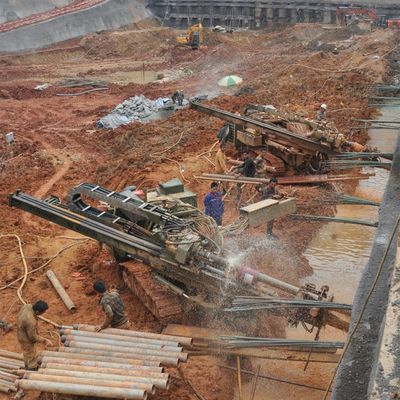

Using for urban construction, mining and multiple purpose, including side slope support bolt to deep foundation, motorway, railway, reservoir and dam construction. To consolidate underground tunnel, casting, pipe roof construction, and pre-stress force construction to large scale bridge. Replace foundation for ancient building. Work for mine exploding hole.
2. Main Features
Using for basic construction, to complete following missions. Such as anchor, dry powder, mud injection, exploration holes and small pile holes missions. This product can complete screw spinning , DTH hammer and scraping drilling.
3. Technical parameters
| Fundamental parameters |
Drilling depth | 20-100m | |
| Drilling diameter | 220-110mm | ||
| Total weight | 2500kg | ||
| Rotation unit speed and torque |
Double motor parallel connection | 58r/min | 4000Nm |
| Double motor series connection | 116r/min | 2000Nm | |
| Rotation unit feeding system | Type | single cylinder, chain belt | |
| Lifting force | 38KN | ||
| Feeding force | 26KN | ||
| Lifting speed | 0-5.8m/min | ||
| Rapid lifting speed | 40m/min | ||
| Feeding speed | 0-8m/min | ||
| Rapid feeding speed | 58m/min | ||
| Feeding stroke | 2150mm | ||
| Mast displacement system |
Mast move distance | 965mm | |
| Lifting force | 50KN | ||
| Feeding force | 34KN | ||
| Power(electric motor) | Power | 37KW | |
