| Name: | Geological Drilling Rig | Model: | XY-3B |
|---|---|---|---|
| Drilling Depth: | 600m | Rotation Unit Type: | Mechanical Rotary Type Hydraulic Feeding By The Double Cylinder |
| Hydraulic Type: | CBW-E320 | Spindle Stroke: | 550mm |
| Rated Power: | 35.3KW | Overall Dimension: | 2500*1100*1700mm |
| High Light: | 600m geological drilling rig,76mm geological drilling rig,35.3kw geological drilling rig |
||

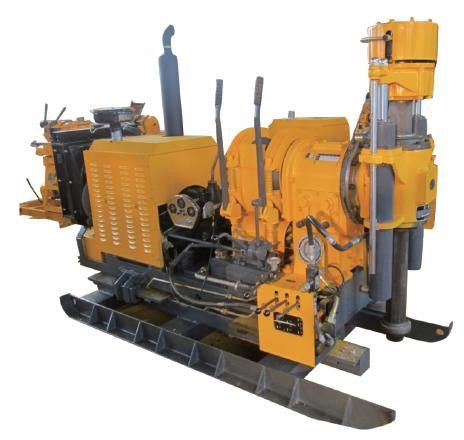

XY-3B 76mm 600m Diesel Engine And Electric Motor Spindle Type Geological Drilling Rig
XY-3B drilling rig is type of vertical shaft drill, which can be powered by diesel engine or electric motor. It is mainly used for diamond bit drilling and carbide bit drilling of solid bed. It also can be used in exploring drilling and base or pile hole drilling.
Main features of XY-3B drilling rig
(1) Compact size and light in weight of mechanical transmission, major diameter of vertical shaft, long distance of support span and good rigidity, hexagonal Kelly ensure the torque transfer.
(2) High speed and suitable range of speed to meet varies need of small diameter diamond bit drilling, big carbide bit drilling and all kinds of the engineering holes.
(3) In hydraulic system, feeding pressure and speed can be adjusted while drilling to suitable for various stratums.
(4) Through hydraulic oil pressure gauge at the hole-bottom, obtain information about feeding pressure.
(5) Using the transmission and clutch of automobile to achieve the good generalization, easy repairing and maintenance.
2. Technical parameters
| Fundamental parameters |
Drilling depth | Ф76mm | 600m | |
| Ф273mm | 150m | |||
| Ф500mm | 80m | |||
| Ф800mm | 50m | |||
| Diameter of drilling rod | 50,60mm | |||
| Angle of drilling | 70°-90° | |||
| Rotation unit |
Co-rotation | 75,135,160,280,355 495,615,1030r/min |
||
| Reverse rotation | 62,160r/min | |||
| Spindle stroke | 550mm | |||
| Spindle pulling force | 68KN | |||
| Spindle feeding force | 46KN | |||
| Max. output torque | 3550Nm | |||
| Hoist | Lifting speed | 0.31,0.62,1.18,2.0m/s | ||
| Lifting capacity | 30KN | |||
| Cable diameter | 15mm | |||
| Drum diameter | 264mm | |||
| Brake diameter | 460mm | |||
| Brake band width | 90mm | |||
| Frame moving device |
Frame moving stroke | 410mm | ||
| Distance away from hole | 300mm | |||
| Hydraulic oil pump |
Type | CBW-E320 | ||
| Rated pressure | 8Mpa | |||
| Rated flow | 40L/min | |||
| Power unit | Type of diesel (CZ4102) |
Rated power | 35.3KW | |
| Rated speed | 2000r/min | |||
| Type of electrical motor(Y200L-4) | Rated power | 30KW | ||
| Rated speed | 1450r/min | |||
| Overall dimension | 2500*1100*1700mm | |||
| Rig weight | with diesel engine | 1650kg | ||
| with electric motor | 1550kg | |||
