Piling Pressure 1200tf Round And H Steel Static Pile Driver Hydraulic

Basic Information
Place of Origin: China
Brand Name: SINOVO
Model Number: VY1200A
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: 7-10 work days
Payment Terms: L/C, D/A, D/P, T/T
Supply Ability: 30 set per month
Detail Information
Certification: CE/GOST/ISO9001 Name: 1202 Ton Square Pile VY1200A Hydraulic Static Pile Driver
Model: VY1200A Max.piling Pressure: 1200tf
Max.piling Speed: 7.54m/min Power Engine: 135kw
Slewing Angle: Piling Stroke: 1.7m
Total Weight: 1202 Ton Overall Dimension: 16000*9430*3390mm
Pile Type: Square Pile Max.hoist Weight: 30 Ton
High Light:

h steel static pile driver hydraulic


round static pile driver hydraulic


static pile driver piling pressure 1200tf

Product Description

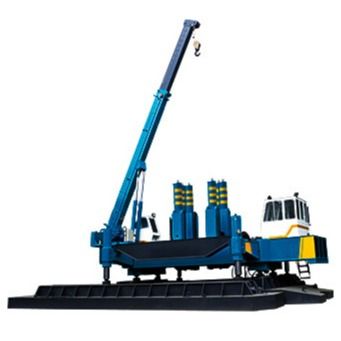

1200tf Round And H-Steel Pile Static Pile Driver


1200tf round and H-steel static pile driver is a new type of foundation construction machinery which adopts full hydraulic static pile driver. It avoids the vibration and noise caused by the impact of the pile hammer and the air pollution caused by the gas emitted during the operation of the machine. The construction has little impact on the nearby buildings and residents' life.


Working principle: the weight of the pile driver is used as the reaction force to overcome the friction resistance of the pile side and the reaction force of the pile tip when pressing the pile, so as to press the pile into the soil.


According to the market demand, our company can provide 600 ~ 12000kn pile driver for customers to choose, which can adapt to different shapes of precast piles, such as square pile, round pile, H-steel pile, etc. the size of precast pile can be from 150 to 800mm. If there are special needs, it can also be customized according to customers, continuously improve the product performance, and meet customer requirements at any time.


Characteristic of 1200tf round and H-Steel pile static pile driver :
1. Civilized construction
>>Low noise, no pollution, clean site, low labor intensity.
2. Energy saving
>>1200tf round and H-Steel pile static pile driver adopt low loss constant power variable hydraulic system design, which can greatly reduce energy consumption and improve efficiency.
3. High efficiency
>>1200tf round and H-Steel pile static pile driver adopt the design of hydraulic system with high power and large flow, in addition, adopt the multi-level control of pile pressing speed and the pile pressing mechanism with short auxiliary time. These technologies give full play to the working efficiency of the whole machine. Each shift (8 hours) can reach hundreds of meters or even more than 1000 meters.
4. High reliability
>>The excellent design of the 1200tf round and H-Steel pile static pile driver, as well as the selection of high reliability purchased parts, make this series of products meet the quality requirements of high reliability that construction machinery should have. For example, the inverted design of the outrigger oil cylinder completely solves the problem that the outrigger oil cylinder of the traditional pile driver is easily damaged.
>>The pile clamping mechanism adopts 16 cylinder pile clamping box design with multi-point clamping, which ensures the protection of pipe pile during pile clamping and has good pile forming quality
5. Convenient disassembly, transportation and maintenance
>>1200tf round and H-Steel pile static pile driver through the continuous improvement of design, more than ten years of gradual improvement, each part has fully considered its disassembly, transportation, maintenance convenience.



Main Technical Parameter Of 1200tf round and H-Steel pile static pile driver


Model Parameter VY1200A
Max.piling pressure(tf) 1200

Max 7.54
Min 0.56
Piling stroke(m) 1.7

Move stroke(m)
Longitudinal Pace 3.6
Horizontal Pace 0.7
Slewing angle(°) 8
Rise stroke(mm) 1100

Pile type (mm)
Square pile F400-F700
Round pile Ф400-Ф800
Min.Side Pile Distance(mm) 1700
Min.Corner Pile Distance(mm) 1950

Max.hoist weight(t) 30
Max.pile length(m) 16

Main engine 135
Crane engine 45

Work length 16000
Work width 9430
Transportation height 3390
Total weight(t)







Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What is your terms of delivery?

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for a new one. And
weprovide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6. Do you test all your goods before delivery?
Ans.: Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.



Packaging & Delivery
Packaging Details
Standard export package
 Shanghai Tianjin
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 7 To be negotiated





Piling Pressure 1200tf Round And H Steel Static Pile Driver Hydraulic 0Piling Pressure 1200tf Round And H Steel Static Pile Driver Hydraulic 1
