Diameter 300MM Driving Hydraulic Pile Hammer And CFA Application

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TH60
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 set per month
Detail Information
Model: TH60 Type: Piling Rig
Construction Method: CFA Construction Method Max Piledriving Length: 16m
Drilling Diameter: 300mm Engine Model: C7 STH
High Light:

hydraulic pile hammer


300mm dia hydraulic pile hammer


CFA hydraulic hammer piling machine

Product Description

Diameter 300MM For Driving Hydraulic Pile Hammer And CFA Application

TH-60 Hydraulic piling rig


TH-60 Hydraulic piling rig is a new design for driving hydraulic pile hammer and CFA application, mainly composed of advantages based on Caterpillar undercarriage and hydraulic impact hammer which included the hammer, hydraulic hoses, power pack, bell driving head.

The TH-60 is a versatile machine; it guarantees high performance in the construction of piles to max diameter 500 mm, max depth 30 m per impacting. Versatility is also a result of the modular design of their components whose choice and layout is a result of many years of extensive fieldtesting; it can be fitted with:

1. different types of mast, each with different extension pieces and components
2. different models of accessories application for hydraulic rotary drilling, pile hammer, auger as optional.

3. service winch


Hydraulic hammer Characters

Hydraulic hammer provide an economical solution for the installation of all types or steel or concrete piles in either land or marine environments
Energy outputs can be delicate adjusted through the control system.

1) High Operation Efficiency
2) Easy Control, stroke, impact frequency and flow are adjustable
3) Environmentally friendly design and highly reliable performance


Technical Parameters


Technical Parameters
  EURO Standards U.S. Standards
Construction method of the pile drummer CFA construction method CFA construction method
The weight of hammer core 5000kg 11023lb
The journey of hammer body(adjustable) 200-1200mm 7.9-47inch
Max beat power 60KJ 60KJ
Beat frequency(adjustable) 30-80times/minute 30-80times/minute
Max pile driving length 16m 52.5feet
Max pile driving 400*400mm 15.7-15.7inch
Max drilling depth 30m 98feet
Drilling diameter 400mm 15.7inch
Max drilling torque 60KN.m 44254lbf.ft
Drilling speed 6-23rpm 6-23rpm
Max pull-down force 170kn 38218lbf
Engine model C7 STH C7 STH
Rated power 186KW 249hp
Main winch pull force(the first layer ) 170kn 38218lbf
Auxiliary winch pull force(the first layer) 110kn 24729lbf
Chassis length 4940mm 194.5inch
Track shoe width 800mm 31.5inch
Undercarriage CAT325D CAT325D
Total weight 39T 85980lb

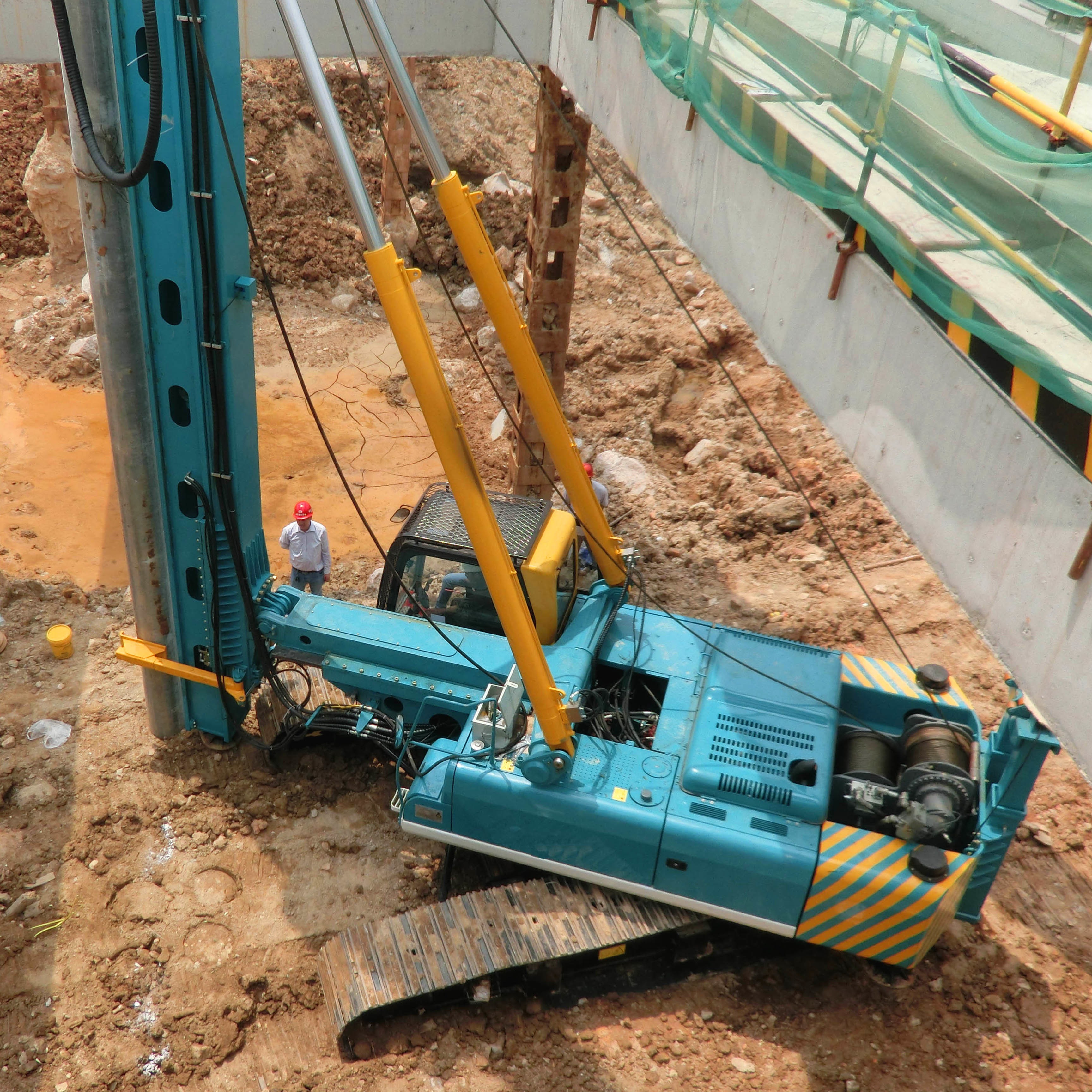

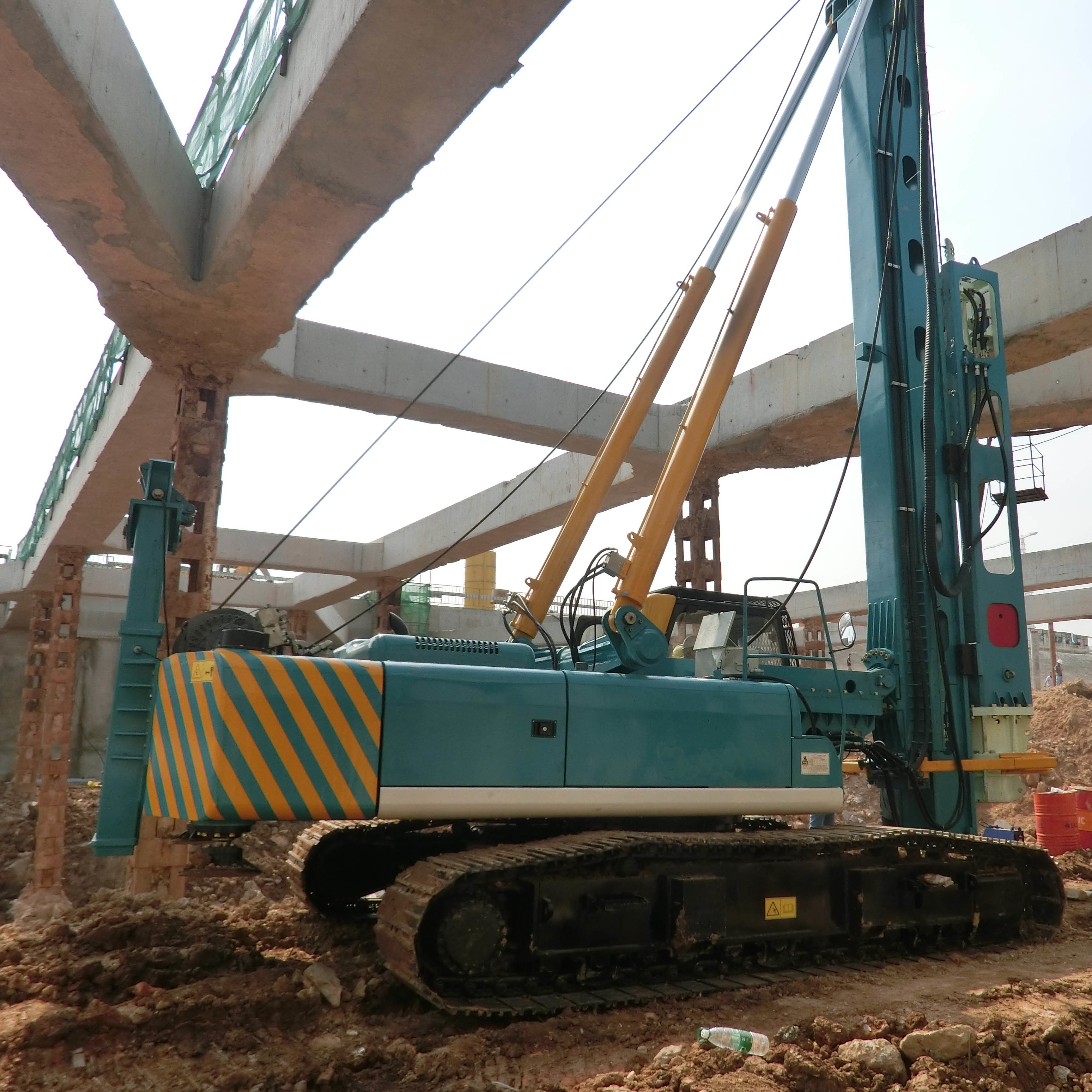

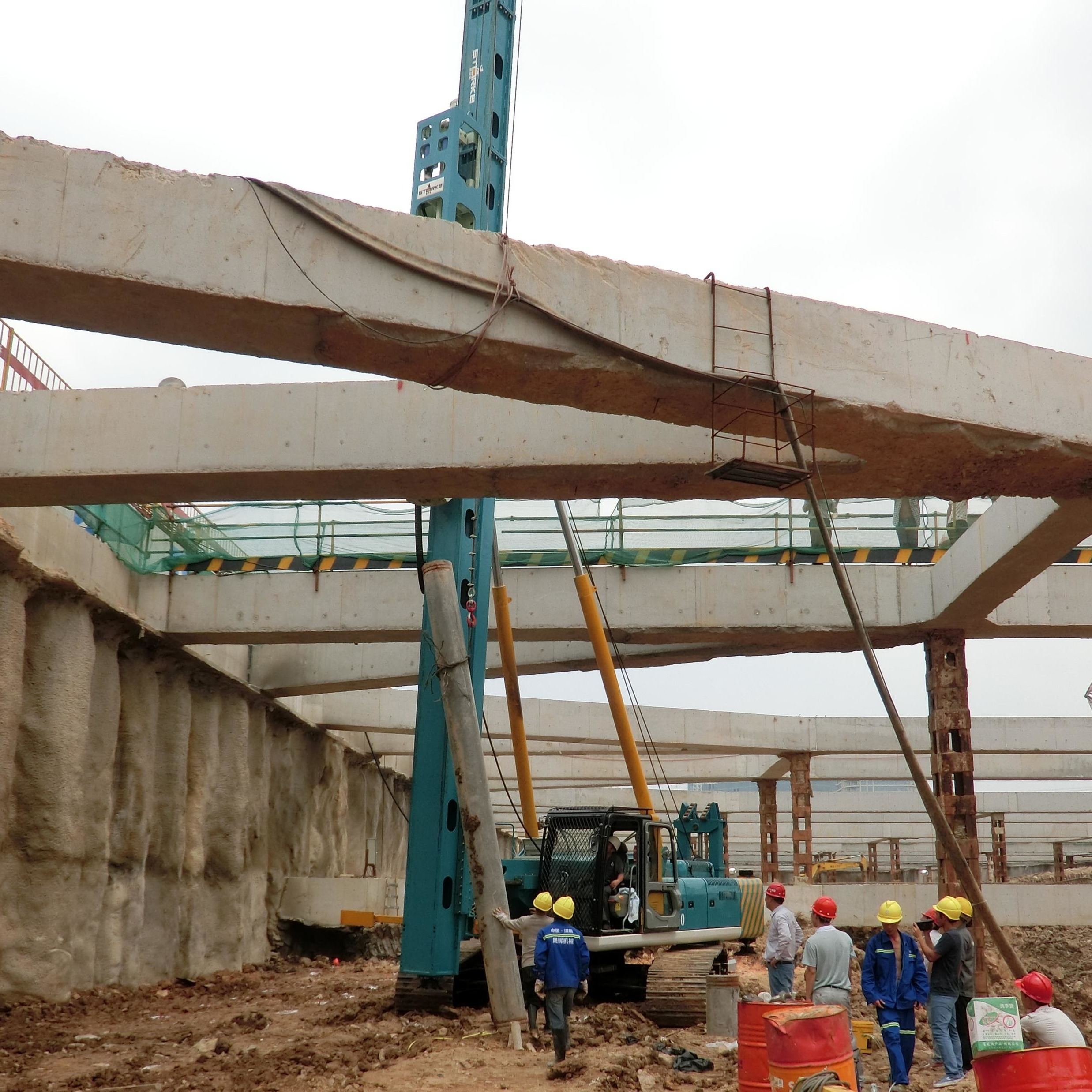

 Diameter 300MM Driving Hydraulic Pile Hammer And CFA Application 0Diameter 300MM Driving Hydraulic Pile Hammer And CFA Application 1
