Small Portable Core Mining Bored Pile Drilling Rig Equipment with Depth 15m and Diameter 1000mm for micropiling

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR45
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: L/C, D/A
Supply Ability: 30 unit per month
Detail Information
Type: Rotary Drilling Rig Power Type: 45kN.m
Usage: Construction Usage Max Drilling Diameter: 1000mm
Max Drilling Depth: 15m Applicable Industries: Farms, Construction Works , Energy & Mining
Track Width(mm): 1000 Rated Power: 56.5kw
High Light:

GOST hydraulic rotary drilling machine

,

1000mm dia hydraulic rotary drilling machine

,

15m rotary head drilling rig


Product Description

Mini Hydraulic Rotary Drilling Machine with Depth 15m 1000mm Dia is for microdrilling in lowheadroom





Features and advantages



The depth 15m 1000mm dia hydraulic rotary drilling machine is transported without removing the drill pipe, which reduces the logistics cost and improves the transfer efficiency. Some models are equipped with the crawler telescopic function when they get off the vehicle. After the maximum extension, it can ensure the transportation efficiency.



The stability of the whole machine during construction is ensured.



The power system adopts domestic or international well-known brands, including Cummins, Mitsubishi, Yangma, Weichai, etc., with stable, efficient, environmental protection



At the same time, it is quiet and economical, and meets the troubleshooting requirements of the national IL stage.



The power head is equipped with domestic first-line brands and all major engine plants in the industry, which has the advantages of high torque, reliable performance and convenient maintenance.



The hydraulic parts are mainly made of Rexroth, Brevini, German wormwood and Doosan. Combined with the international concept, the pump valve is completely in accordance with the product characteristics of rotary drilling rig



Specially designed, the auxiliary system uses the load sensitive system to realize the flow on-demand distribution.



The electrical control system, the main parts are imported brand, the cable adopts aviation connector, sealed waterproof, stable performance, large screen



Operation control, and achieve simple, beautiful, high recognition.



The structure is designed according to parallelogram, and the hoisting cloth is placed on the mast or boom, which is convenient for observing the direction of steel wire rope. In case of disordered rope, it can be found and rolled in time



The simple use of double broken line design can realize multi-layer winding of steel wire rope without rope biting, reduce mushroom damage and improve the service life of steel wire rope.



The layout of the platform on the whole machine is reasonable, which is convenient for the subsequent maintenance of the equipment.




Technical parameter

Engine Model
Rated power kw 56.5
Rated speed r/min 2200
Rotary head Max.output torque kN´m 50
Drilling speed r/min 0-60
Max. drilling diameter          mm                 1000
Max. drilling depth m 15
Crowd cylinder system Max. crowd force Kn 80
Max. extraction force Kn 60
Max. stroke mm 2000
Main winch Max. pull force Kn 60
Max. pull speed m/min 50
Wire rope diameter mm 16
Auxiliary winch Max. pull force Kn 15
Max. pull speed m/min 40
Wire rope diameter mm 10
Mast inclination Side/ forwards/ backwards ° ±4/5/90
Interlocking Kelly bar   ɸ273*4*4.4
Undercarrige Max. traveling speed km/h 1.6
Max. rotation speed r/min 3
Chassis width mm 2300
Tracks width mm 450
Working Pressure of Hydraulic System         Mpa                   30
Total weight with kelly bar kg 13000
Dimension Working (Lx Wx H) mm 4560x2300x8590
Transportation (Lx Wx H) mm 7200x2300x3000


FAQ


Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line and oversea service team

Q2. Why should I choose your products?
A2. Our products are high quality and competitive price, also get CE ceritifucation , and we supply one year or 12 month warranty.

If you request, we can dispatch our engineer to your worksite to provide training for your staff.

For the chassis, eg CAT chassis, we take advantage of their global presence to ensure prompt after service support.

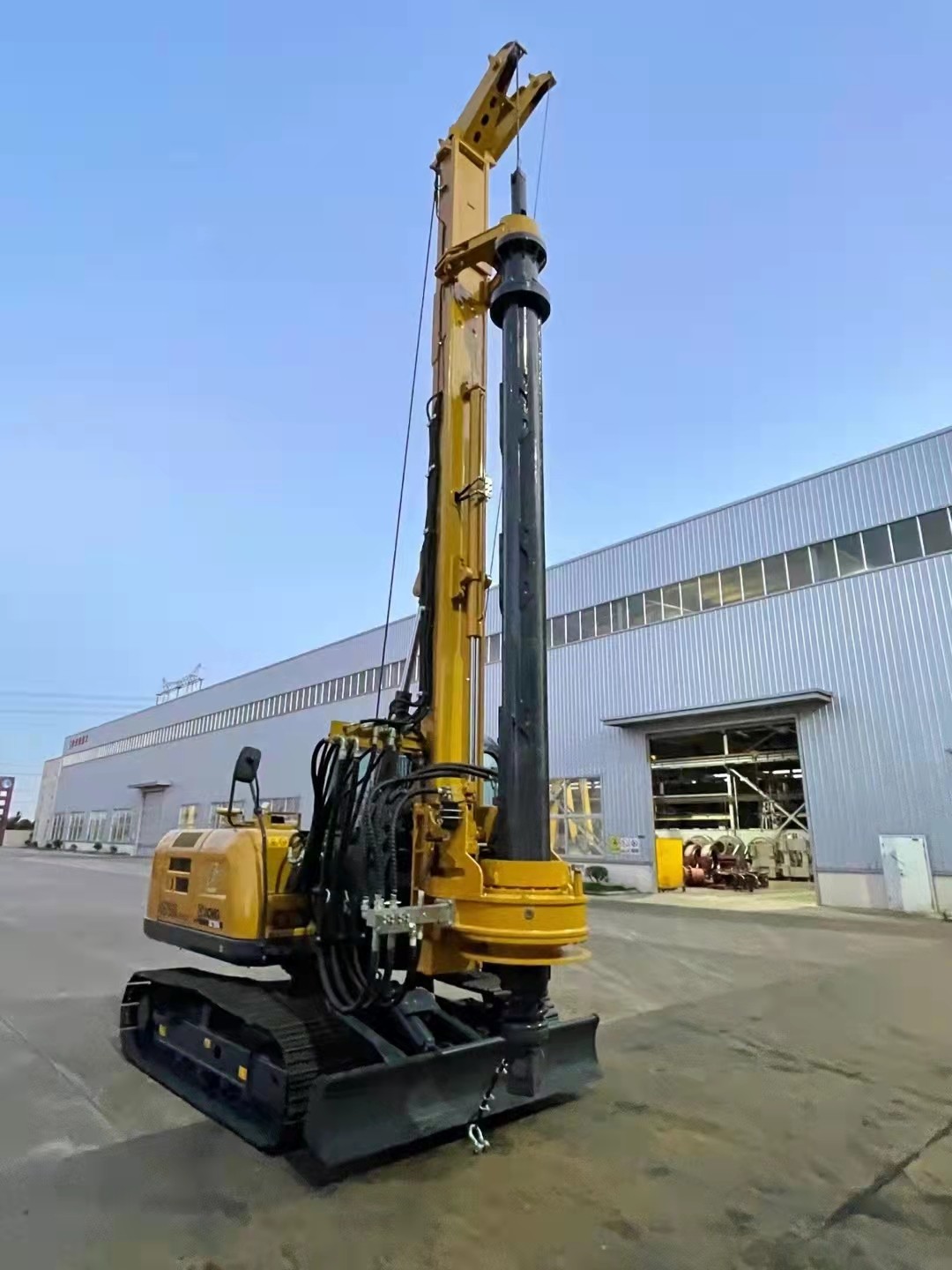

Small Portable Core Mining Bored Pile Drilling Rig Equipment with Depth 15m and Diameter 1000mm for micropiling 0

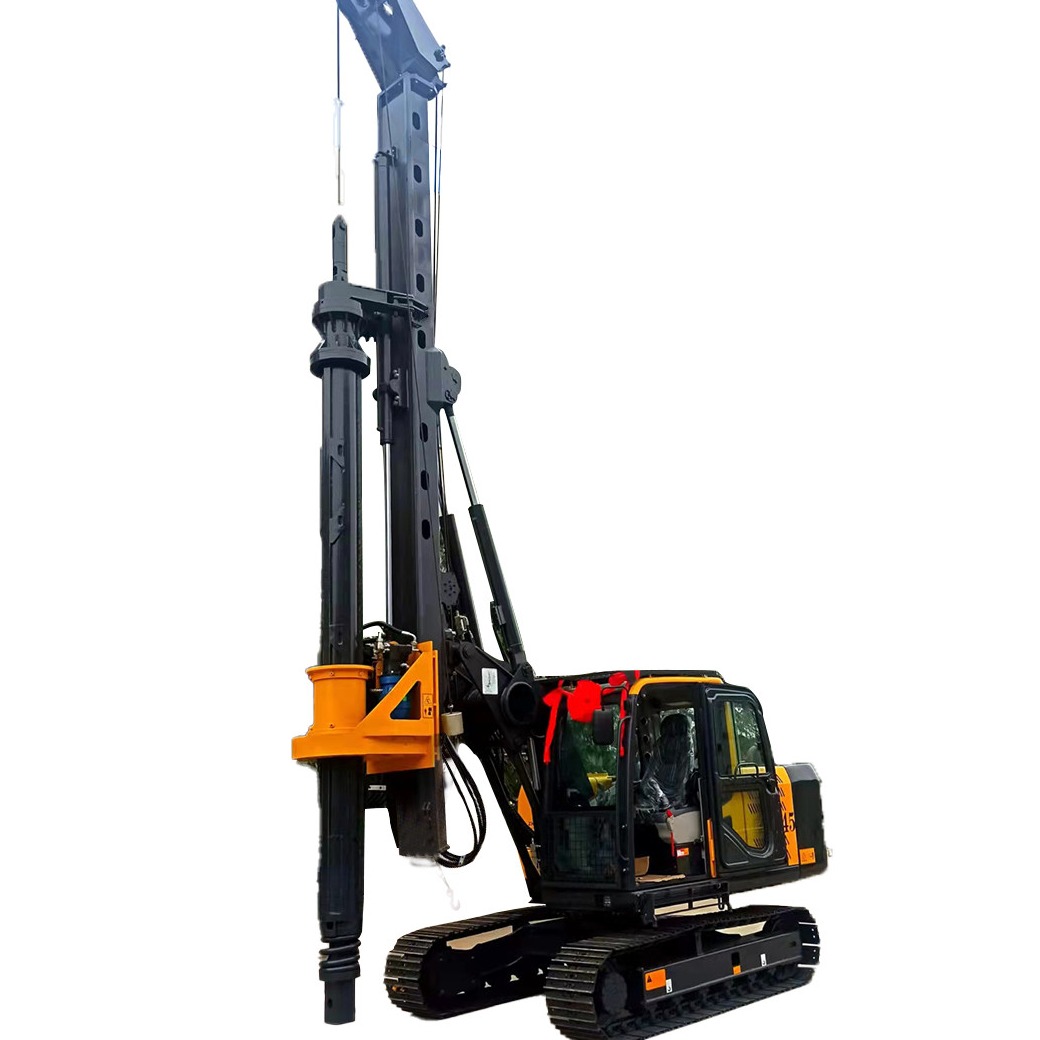

Small Portable Core Mining Bored Pile Drilling Rig Equipment with Depth 15m and Diameter 1000mm for micropiling 1Small Portable Core Mining Bored Pile Drilling Rig Equipment with Depth 15m and Diameter 1000mm for micropiling 2
