| Place of Origin: | China |
|---|---|
| Brand Name: | SINOVO |
| Certification: | CE/GOST/ISO9001 |
| Model Number: | Crawler Type Core Drilling Rig |
| Minimum Order Quantity: | 1 piece |
| Price: | Negotiation |
| Packaging Details: | International Export Carton Case Package |
| Delivery Time: | ON STOCK |
| Payment Terms: | T/T&L/C |
| Supply Ability: | 30 per month |
| Name: | Crawler Type Core Drilling Rig | Model: | XYC-3B |
|---|---|---|---|
| Drilling Depth: | 600m | Drilling Diameter: | 800mm |
| Rod Diameter: | 60mm | Spindle Stroke: | 550mm |
| Rated Power: | 35.3kw | Maximum Output Torque: | 3500N.m |
| Highlight: | 600m depth core drilling rig,800mm diameter core drilling rig,GOST core drilling rig |
||

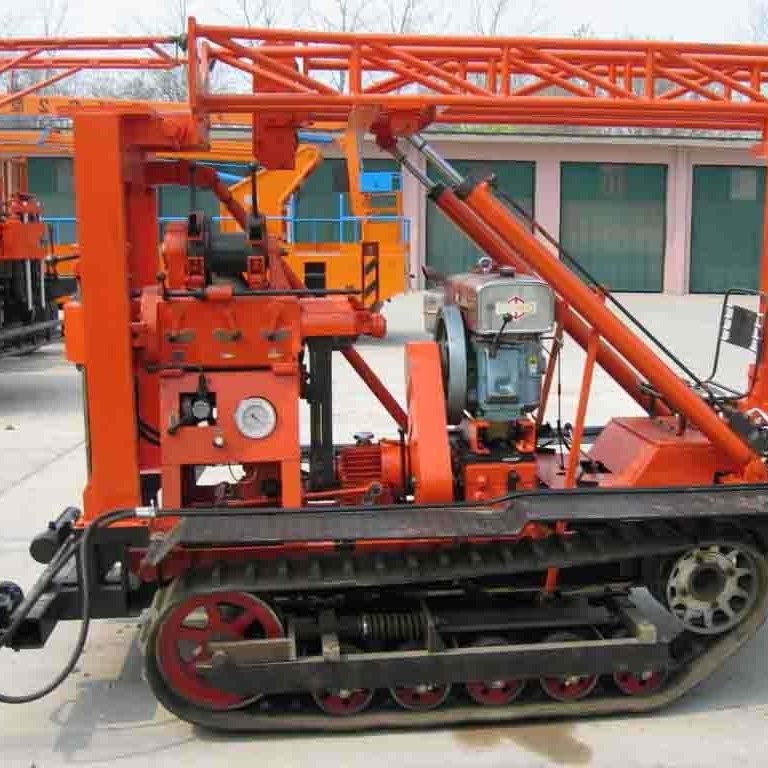

600m Depth 800mm Diameter Crawler Type Core Drilling Rig
Series spindle type core drilling rigs are mounted on the crawlers, which is a portable hydraulic rig on high speed. These drills move easily with hydraulic feeding.
Application Range
Engineering geological explorations for railway, hydropower, highway, bridge and dam etc; Geologic core drilling and geophysical exploration; Drill the holes for small grouting and blasting.
Structural Configuration
The drilling rig includes crawler chassis, diesel engine and drilling main body; all these parts will be mounted on one frame. The diesel engine drives drill, hydraulic oil pump and crawler chassis, the power will be transferred to drill and crawler chassis through transfer case.
Main Features
(1)Being equipped with rubber crawler make the drilling rig moving easily. At the same time, the rubber crawlers won't destroy the ground, so this kind of drilling rig will be convenient for construction in city.
(2)Being equipped with hydraulic oil pressure feeding system improves drilling efficiency and reduces labor intensity.
(3)Being equipped with ball type holding device and hexagonal Kelly, it can accomplish no-stopping working while lifting the rods and get a high drilling efficiency. Operate with convenience, security and reliability.
(4)Through the pressure indicator of bottom hole, the well condition can be observed easily.
(5)Equipped hydraulic mast, convenient operation.
(6)Close levers, convenient operation.
(7)The diesel engine starts by the electromotor.
Fundamental parameters
| Fundamental parameters | |||||||
| Unit | XYC-1A | XYC-1B | XYC-280 | XYC-2B | XYC-3B | ||
| Drilling depth | m | 100,180 | 200 | 280 | 300 | 600 | |
| Drilling diameter | mm | 150 | 59-150 | 60-380 | 80-520 | 75-800 | |
| Rod diameter | mm | 42,43 | 42 | 50 | 50/60 | 50/60 | |
| Drilling angle | ° | 90-75 | 90-75 | 70-90 | 70-90 | 70-90 | |
| Skid | ● | ● | ● | / | / | ||
| Rotation unit | |||||||
| Spindle speed | r/min | 1010,790,470,295,140 | 71,142,310,620 | / | / | / | |
| Co-rotation | r/min | / | / | 93,207,306,399,680,888 | 70,146,179,267,370,450,677,1145, | 75,135,160,280,355,495,615,1030, | |
| Reverse rotation | r/min | / | / | 70, 155 | 62, 157 | 64,160 | |
| Spindle stroke | mm | 450 | 450 | 510 | 550 | 550 | |
| Spindle pulling force | KN | 25 | 25 | 49 | 68 | 68 | |
| Spindle feeding force | KN | 15 | 15 | 29 | 46 | 46 | |
| Maximum output torque | N.m | 500 | 1250 | 1600 | 2550 | 3500 | |
| Hoist | |||||||
| Lifting speed | m/s | 0.31,0.66,1.05 | 0.166,0.331,0.733,1.465 | 0.34,0.75,1.10 | 0.64,1.33,2.44 | 0.31,0.62,1.18,2.0 | |
| Lifting capacity | KN | 11 | 15 | 20 | 25,15,7.5 | 30 | |
| Cable diameter | mm | 9.3 | 9.3 | 12 | 15 | 15 | |
| Drum diameter | mm | 140 | 140 | 170 | 200 | 264 | |
| Brake diameter | mm | 252 | 252 | 296 | 350 | 460 | |
| Brake band width | mm | 50 | 50 | 60 | 74 | 90 | |
| Frame moving device | |||||||
| Frame moving stroke | mm | 410 | 410 | 410 | 410 | 410 | |
| Distance away from hole | mm | 250 | 250 | 250 | 300 | 300 | |
| Hydraulic oil pump | |||||||
| Type | YBC-12/80 | YBC-12/80 | YBC12-125 (left) | CBW-E320 | CBW-E320 | ||
| Rated flow | L/min | 12 | 12 | 18 | 40 | 40 | |
| Rated pressure | Mpa | 8 | 8 | 10 | 8 | 8 | |
| Rated rotation speed | r/min | 1500 | 1500 | 2500 | |||
| Power unit (Diesel engine) | |||||||
| Rated power | KW | 12.1 | 12.1 | 20 | 24.6 | 35.3 | |
| Rated speed | r/min | 2200 | 2200 | 2200 | 1800 | 2000 | |
