SHY-5ACrawler Type Core Drilling Rig 145kw BQ1500m

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: Crawler Type Core Drilling Rig
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 per month
Detail Information
Name: SHY-5ACrawler Type Core Drilling Rig 145kw BQ1500m Model: SHY-5A
BQ Drilling Capacity: 1500m NQ Drilling Capacity: 1300m
HQ Drilling Capacity: 1000m PQ Drilling Capacity: 680m
Max. Torque: 4650Nm Engine Power: 145kw
High Light:

big torque core drilling rig

,

1500m core drilling rig

,

big torque crawler drilling rig


Product Description

SHY-5ACrawler Type Core Drilling Rig 145kw BQ1500m


SHY-5A is a hydraulic compact diamond core drilling rig that has been designed with modular sections. This allows for the rig to be disassembled into smaller parts, improving mobility. This drill rig is suited for the following drilling applications:

a. Diamond core drilling

b. Directional drilling

c. Reverse circulation continuous coring

d. Percussion rotary

e.Geo-tech

f. Water bores

g. Anchorage



Technical Parameters of SHY-5A Full Hydraulic Core Drilling Rig:



Model SHY-5A
Diesel Engine Power 145kw
Drilling Capacity BQ 1500m
NQ 1300m
HQ 1000m
PQ 680m
Rotator Capacity RPM 0-1050rpm
Max. Torque 4650Nm
Max. Lifting Capacity 15000kg
Max. Feeding Power 7500kg
Foot Clamp Clamping Diameter 55.5-117.5mm
Main hoister lifting force (Single rope) 7700kg
Wire hoister lifting force 1200kg
Mast Drilling Angle 45°-90°
Feeding Stroke 3200mm
Slippage Stroke 1100mm
Other Weight 8500kg
Transport Way Crawler



Main Features of SHY-5A Full Hydraulic Core Drilling Rig:


1. The rig being comprised from modular components, can be disassembled into smaller and more transportable sections. With the heaviest components weighing less than 500kg/760kg. Switching the power pack between Diesel or Electric is quick and effortless even when on site.

2. The rig offers a smooth hydraulic transmission, operating at low noise levels. Whilst providing convenience to the operation is labor saving and focuses on promoting work safety on site.

3. The rotation head (Patent NO.: ZL200620085555.1) is a step-less speed transmission, offering a wide range of speeds and torque (up to 3 speeds), the rotation head can be side racked via hydraulic rams for added convenience and efficiency especially during rod trips.

4. Hydraulic chuck jaws and foot clamps (Patent NO.: ZL200620085556.6) offers a fast clamping action, designed to be reliable, neutral. The foot clamps are designed to suit various different drill rod sizes via the use of different size slip jaws.

5. Feed stroke at 3.5 meters, reduces operation time, improves drilling efficiency and reduces inner tube core blockages.

6. Braden main winch (USA) features a stepless speed transmission from Rexroth. Single rope hoist capacity up to 6.3t (13.1t on double). Wireline winch is also equipped with a stepless speed transmission, offering a wide speed range.

The rig benefits from a tall mast, which allows for the operator to pull rods at up to 6m lengths, making rod trips faster and more efficient.

7. Equipped with all the essential gauges, including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque gauge, Water pressure gauge. Enabling the driller to oversee the entire operation of the drill rig at a simple glance.

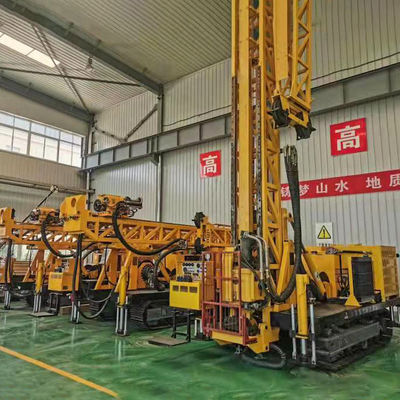

SHY-5ACrawler Type Core Drilling Rig 145kw BQ1500m 0SHY-5ACrawler Type Core Drilling Rig 145kw BQ1500m 1
