Trailer SHY-5C 145kw NQ1300m Core Drilling Rig Modular Design For Plateau

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: SHY-5C 145kw NQ1300m Trailer Type Core Drilling Rig
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 per month
Detail Information
Name: SHY-5C 145kw NQ1300m Trailer Type Core Drilling Rig Model: SHY-5C
BQ Drilling Capacity: 1500m NQ Drilling Capacity: 1300m
HQ Drilling Capacity: 1000m PQ Drilling Capacity: 680m
Max. Torque: 4600Nm Engine Power: 145kw
High Light:

145kw core drilling rig

,

modular design core drilling rig

,

plateau core drilling rig


Product Description

SHY-5C 145kw NQ1300m Trailer Type Core Drilling Rig




The SHY-5C full hydraulic core drilling rig adopts modular design, which designs the power and hydraulic station, console, power head, drill tower and chassis into relatively independent units, which is convenient for disassembly and minimizes the transportation weight of a single piece. It is especially suitable for site relocation under complex road conditions such as plateau and mountainous areas.

The SHY-5C full hydraulic core drilling rig is suitable for diamond rope coring, percussive rotary drilling, directional drilling, reverse circulation continuous coring and other drilling techniques; It can also be used for water well drilling, anchor drilling and engineering geological drilling. It is a new type of full hydraulic power head core drill.





Technical Parameters of SHY-5C Full Hydraulic Core Drilling Rig:



Model SHY-5C
Diesel Engine Power 145kw
Drilling Capacity BQ 1500m
NQ 1300m
HQ 1000m
PQ 680m
Rotator Capacity RPM 0-1100rpm
Max. Torque 4600Nm
Max. Lifting Capacity 15000kg
Max. Feeding Power 7500kg
Foot Clamp Clamping Diameter 55.5-117.5mm
Main hoister lifting force (Single rope) 7700kg
Wire hoister lifting force 1200kg
Mast Drilling Angle 45°-90°
Feeding Stroke 3200mm
Slippage Stroke 950mm
Other Weight 7000kg
Transport Way Trailer




Main Features of SHY-5C Full Hydraulic Core Drilling Rig:



1. Modular design, can be disassembled for transportation, and the maximum weight of a single piece is 500kg / 760kg, which is convenient for manual handling.

2. The SHY-5C full hydraulic core drilling rig can match the two power modules of diesel engine and motor. Even on the construction site, the two power modules can be exchanged quickly and easily.

3. Full hydraulic transmission realizes the integration of mechanical, electrical and hydraulic, with stable transmission, light noise, centralized operation, convenience, labor saving, safety and reliability.

4. The power head gearbox has stepless speed regulation, wide speed range and 2-gear / 3-gear torque output, which can be applicable to the requirements of various drilling processes for speed and torque in different drilling diameters. The power head can be shifted laterally to give way to the orifice, which is convenient and labor-saving.

5. Equipped with hydraulic chuck and hydraulic gripper, the drill pipe can be clamped quickly and reliably with good alignment. The slip can be replaced for clamping Φ 55.5, Φ 71, Φ 89 various specifications of rope coring drill pipe, large drift diameter and easy to use.

6. The drilling distance of SHY-5C full hydraulic core drilling rig is up to 3.5m, which can effectively reduce the auxiliary working time, improve the drilling efficiency and reduce the core blockage caused by stopping and reversing the rod.

7. It is equipped with imported winch, stepless speed regulation, and the maximum single rope lifting force is 6.3t/13.1t.

8. Stepless speed regulation rope coring hydraulic winch with wide speed change range and flexible operation; Mast derrick can lift drilling tools 3-6M at a time, which is safe and labor-saving.

9.It is equipped with all the essential gauges, including: Rotation speed, Feed Pressure, Ammeter, Voltmeter, Main Pump/Torque gauge, Water pressure gauge.

10. SHY-5C Full Hydraulic Core Drilling Rig is suited for the following drilling applications:

1). Diamond core drilling

2). Directional drilling

3). Reverse circulation continuous coring

4). Percussion rotary

5). Geo-tech

6). Water bores

7). Anchorage.

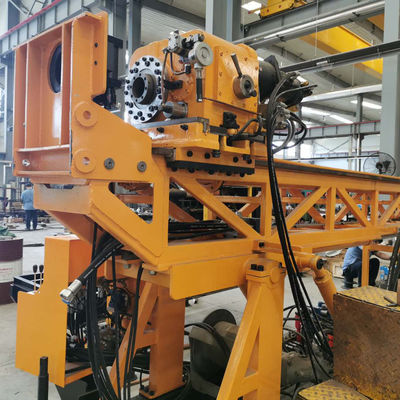

Trailer SHY-5C 145kw NQ1300m Core Drilling Rig Modular Design For Plateau 0
