Diamond Depth 180m XYT-1A Trailer Mounted Drilling Rig Compact

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: XYT-1A
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: International Export Carton Case Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 per month
Detail Information
Name: XYT-1A Trailer Type Core Drilling Rig Model: XYT-1A
Max Drilling Depth: 180m Drilling Diameter: 150mm
Rod Diameter: 42/43mm Overall Dimension: 4500x2200x2200mm
Maximum Output Torque: 500Nm Rig Weight: 3500kg
High Light:

180m trailer mounted drilling rig

,

compact trailer mounted drilling rig

,

180m trailer mounted drill rig


Product Description

Diamond Drilling Drilling Depth 180m XYT-1A Trailer Type Core Drilling Rig

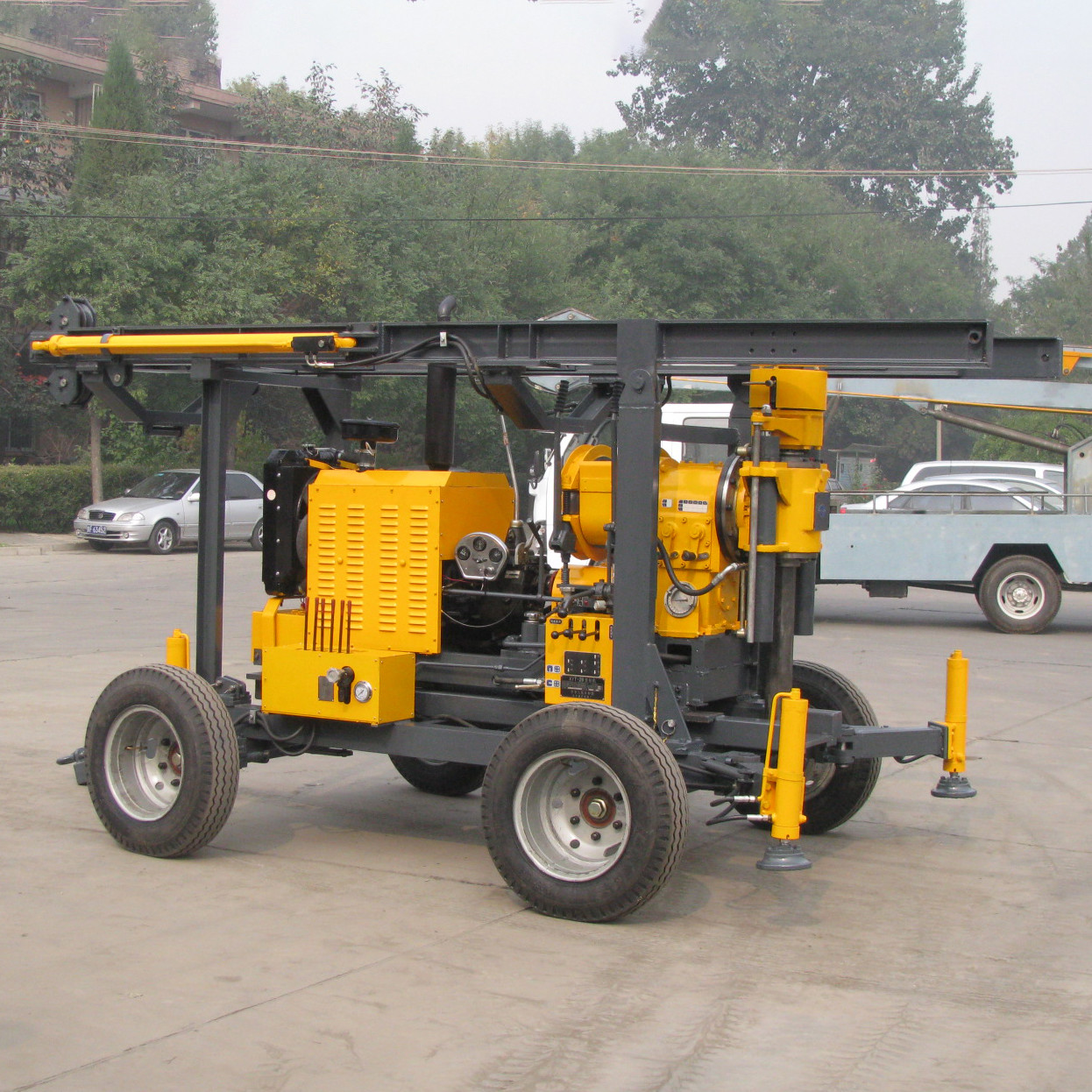

XYT-1A Trailer type core drilling rig adopts four hydraulic jacks and hydraulically controlled self-supporting tower. It is installed on the trailer for easy walking and operation.

XYT-1A Trailer type core drilling rig is mainly used for core drilling, soil investigation, small water wells and diamond bit drilling technology.





Fundamental parameters



  Unit XYT-1A
Drilling depth m 100,180
Drilling diameter mm 150
Rod diameter mm 42,43
Drilling angle ° 90-75
Overall dimension mm 4500x2200x2200
Rig weight kg 3500
Skid
Rotation unit
Spindle speed
Co-rotation r/min /
Reverse rotation r/min /
Spindle stroke mm 450
Spindle pulling force KN 25
Spindle feeding force KN 15
Maximum output torque N.m 500
Hoist
Lifting speed m/s 0.31,0.66,1.05
Lifting capacity KN 11
Cable diameter mm 9.3
Drum diameter mm 140
Brake diameter mm 252
Brake band width mm 50
Frame moving device
Frame moving stroke mm 410
Distance away from hole mm 250
Hydraulic oil pump
Type   YBC-12/80
Rated flow L/min 12
Rated pressure Mpa 8
Rated rotation speed r/min 1500
Power unit
Diesel engine
Type   S1100
Rated power KW 12.1
Rated speed r/min 2200





Main features



1. Compact structure, light weight, large main shaft diameter, long stroke and good rigidity. Hexagonal Kelly ensures torque transmission.

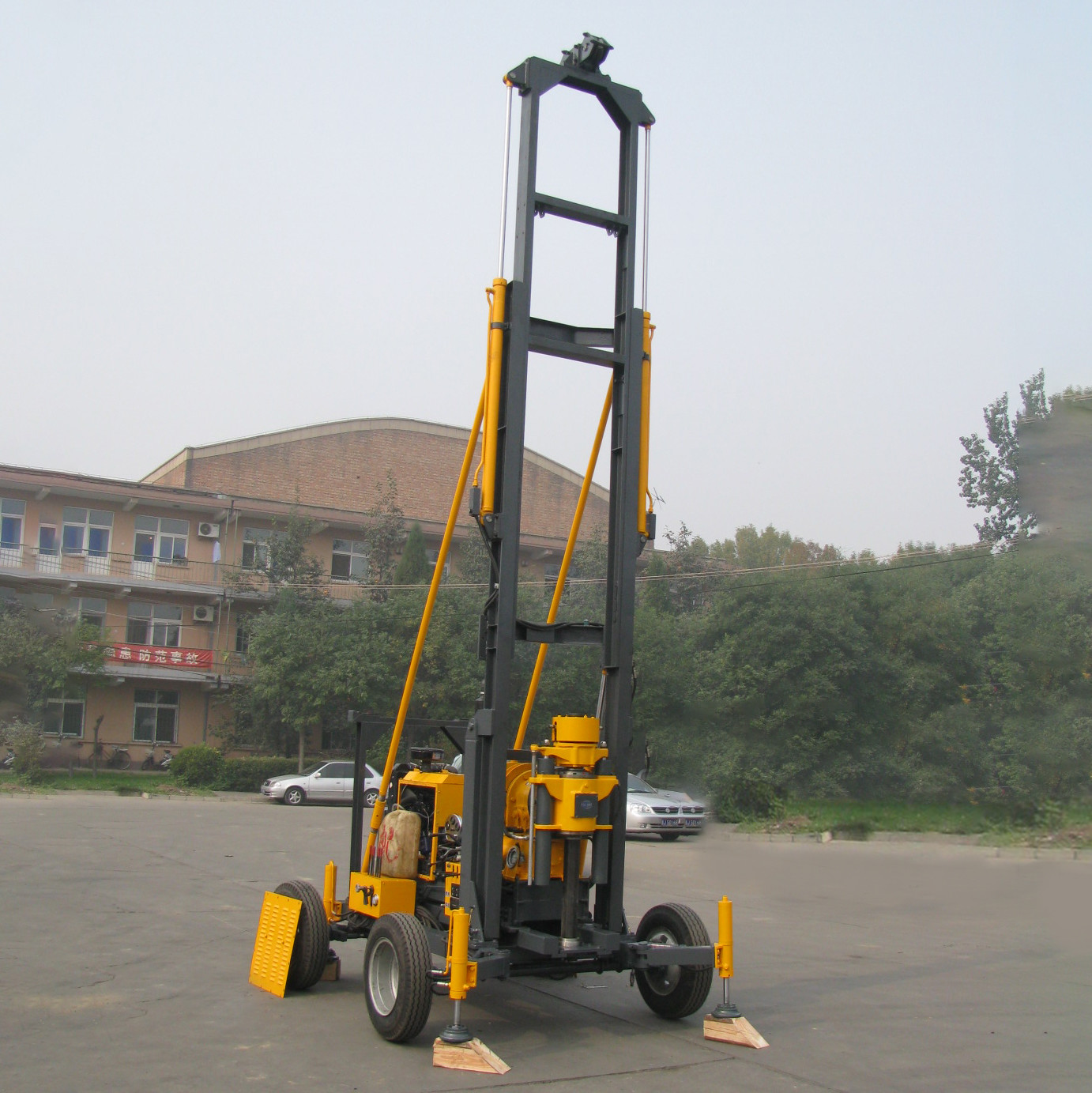

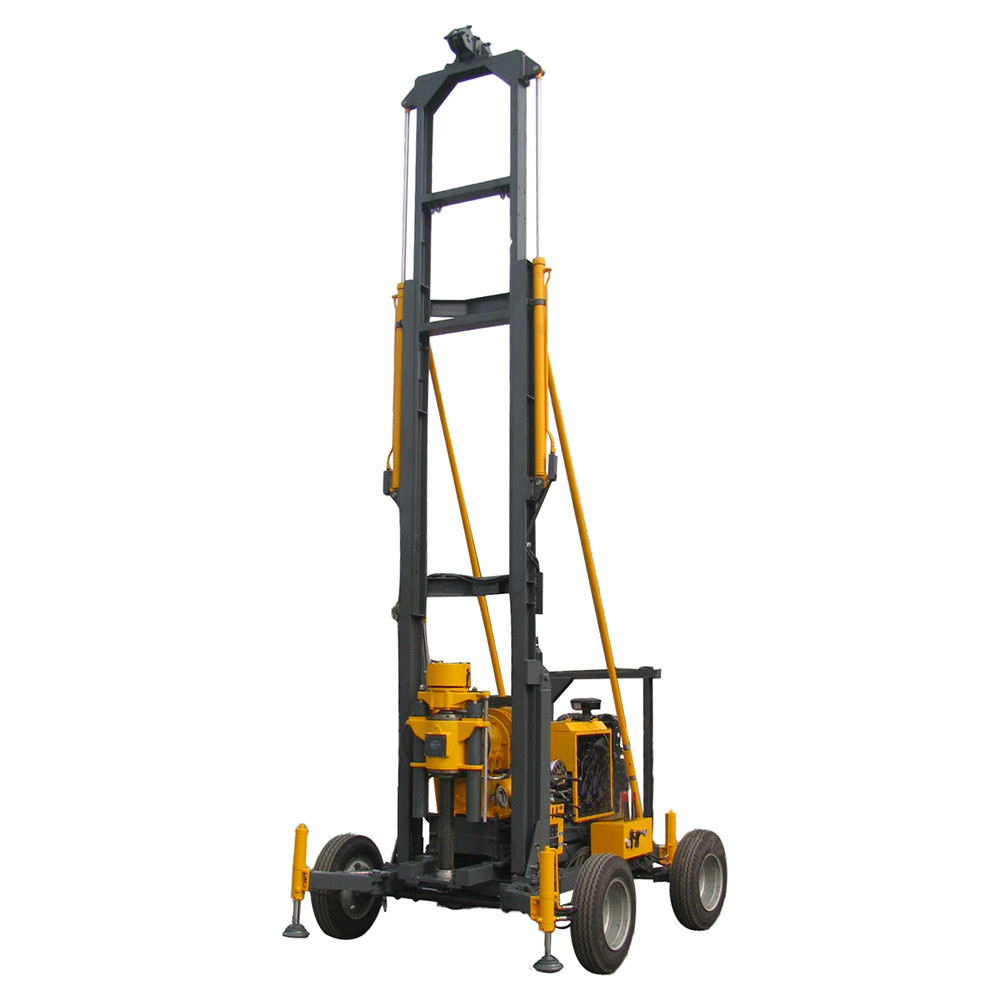

2. The drilling rig tower and main engine are installed on the wheel chassis with four hydraulic legs. The drilling tower has the functions of lifting, landing and folding, and the whole machine is easy to move.

3. The hydraulic mast is composed of the main mast and the mast extension, which greatly improves the work efficiency and is very convenient for transportation and operation.

4. Compared with the ordinary core drill, the trailer core drill reduces the heavy derrick and saves the cost.

5. The XYT-1A trailer type core drilling rig has high optimal speed and can meet various requirements for small-diameter diamond drilling, large-diameter cemented carbide drilling and various engineering holes drilling.

6. During feeding, the hydraulic system can adjust the feed speed and pressure to meet the drilling requirements of different formations.

7. Provide bottom hole pressure gauge to monitor drilling pressure.

8. XYT-1A Trailer type core drilling rig adopts automobile transmission and clutch, which is convenient for maintenance.

9. Centralized control panel, easy to operate.

10. The octagonal main shaft is more suitable for high torque transmission.
