Used Sany brand SR220 Rotary Drilling Rigs With C9 Engine

Basic Information
Place of Origin: China
Brand Name: SANY
Certification: ISO9001:2015
Model Number: SR220
Minimum Order Quantity: 1
Price: USD100,000
Packaging Details: International Export Package
Delivery Time: ON STOCK
Payment Terms: L/C, T/T
Supply Ability: 30 sets per month
Detail Information
Model: SR220 Brand: SANY
Engine: C9 261Kw Max Drilling Diameter: 2300mm
Depth: 66m Maximum Torque: 220kN.m
Working Hours: 8870.9h Kelly Bar: 4x445x14.5m Interlocking Kelly Bar
YOM: 2013 Condition: Good
Highlight:

2300mm rotary drilling rigs

,

66m rotary drilling rigs

,

c9 engine rotary drill rigs


Product Description

Used SANY SR220 Rotary Drilling Rig 2300mm 66m


At present, there is a used SANY SR220C rotary drilling rig for sale, with original Cat chassis and C-9 engine. Its apparent working hours are 8870.9h, the maximum diameter and depth are 2000mm and 54m respectively, and 4x445x14 kelly bar is provided, the rotary drilling rig equipment is in good condition. If you are interested, please feel free to contact us. Sinovogroup has professional personnel to check the geological report and provide you with high-quality construction scheme.


Technical Parameters:


Name Rotary Drilling Rig
Brand Sany
Max. drilling diameter 2300mm
Max. drilling depth 66m
Engine Engine power 261kw
Engine model C9
Rated engine speed 1800r/min
Weight of the whole machine 32767kg
Power head Maximum torque 220kN.m
Maximum speed 土 7-26 r/min
Cylinder Maximum pressure 180kN
Maximum lifting force 240kN
Maximum stroke 5160m
Main winch Maximum lifting force 240kN
Maximum winch speed 70m/min
Diameter of main winch wire rope 28mm
Auxiliary Winch Maximum lifting force 110kN
Maximum winch speed 70m/min
Diameter of auxiliary winch wire rope 20mm
Kelly Bar 4x445x14.5m Interlocking Kelly bar
Drill mast roll angle
Forward inclination angle of drilling mast
Pilot pump pressure 4Mpa
Working pressure of hydraulic system 34.3 Mpa
Maximum traction 510kN
Track length 5911mm
Dimension Transportation status 15144×3000×3400mm
Working condition 4300×21045mm
Condition Good



Performance characteristics of SANY SR220C rotary drilling rig:

1. SANY SR220 is a classic model
SANY SR220 rotary drilling rig is a hole forming construction equipment for cast-in-place piles in moderately and strongly weathered geology such as clay layer, pebble layer and mudstone layer, which is oriented to small and medium-sized industrial and civil construction, municipal and railway pile foundation projects.
2. High efficiency
250KW engine, among the mainstream models of the same level, can provide stronger power for the whole machine and improve the construction efficiency.
3. SANY SR220 rotary drill has large torque and fast drilling speed.
4. The main winch of SANY SR220 rotary drilling rig has large lifting force and fast speed, and its efficiency is higher under the condition of soil construction.
5. Product reliability of SANY SR220 rotary drilling rig
The core parts are jointly designed with international well-known manufacturers and customized for SANY rotary drilling rig to ensure high matching; Adopt advanced R & D means and advanced finite element analysis software to carry out static analysis, dynamic analysis, fatigue analysis and test on the product, so as to optimize the product structure while meeting the design requirements.
6. SANY SR220 rotary drilling rig fully automatic production line and robot welding, with stable product quality;
7. NDT for key parts of Sany sr220 rotary drilling rig, with guaranteed quality;
8. SANY SR220 rotary drilling rig is more intelligent and safer
Higher intelligent level, more safety protection, convenient construction operation, maintenance, troubleshooting and customer monitoring management.


Photos of TR220D rotary drilling rig:

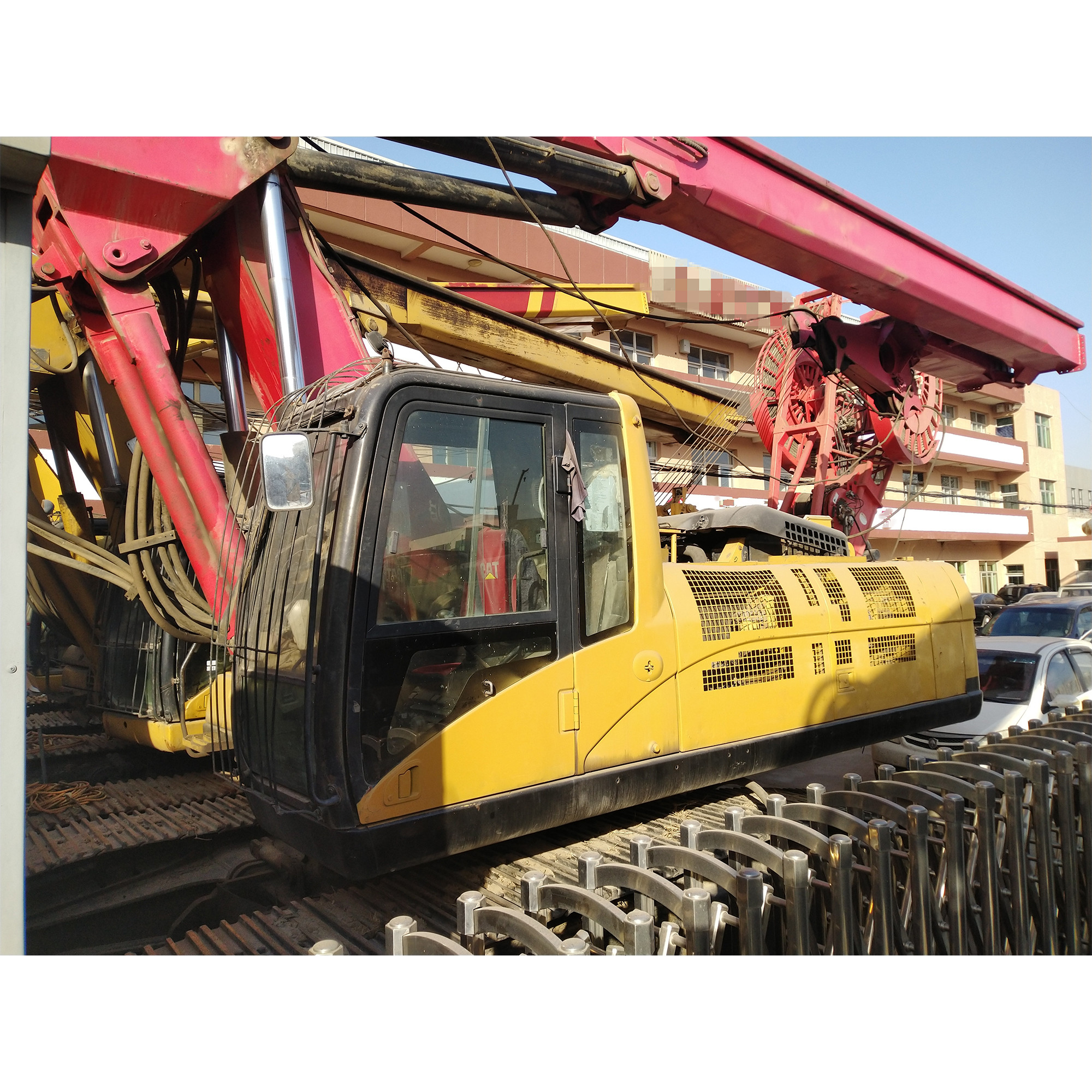

Used Sany brand SR220 Rotary Drilling Rigs With C9 Engine 0

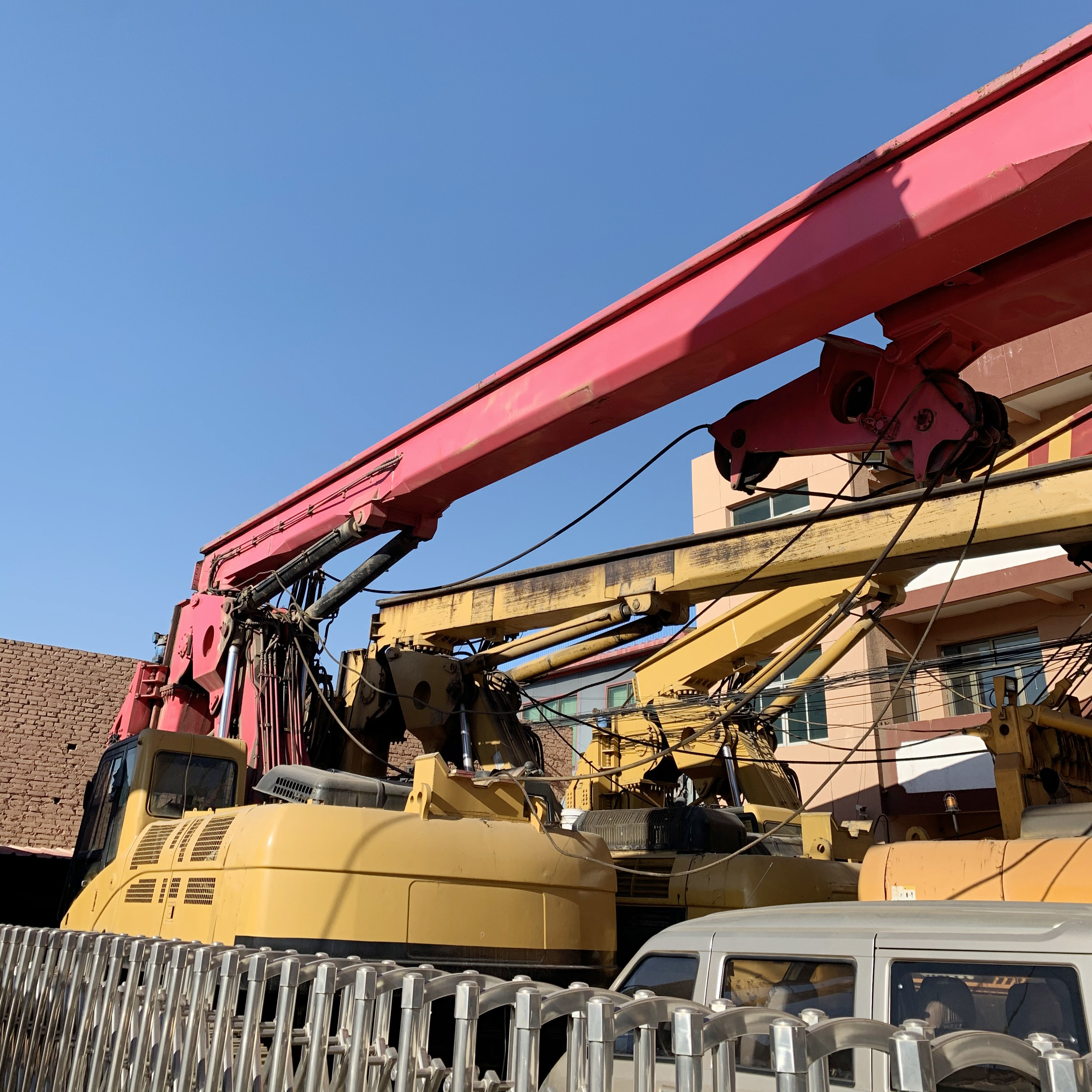

Used Sany brand SR220 Rotary Drilling Rigs With C9 Engine 1

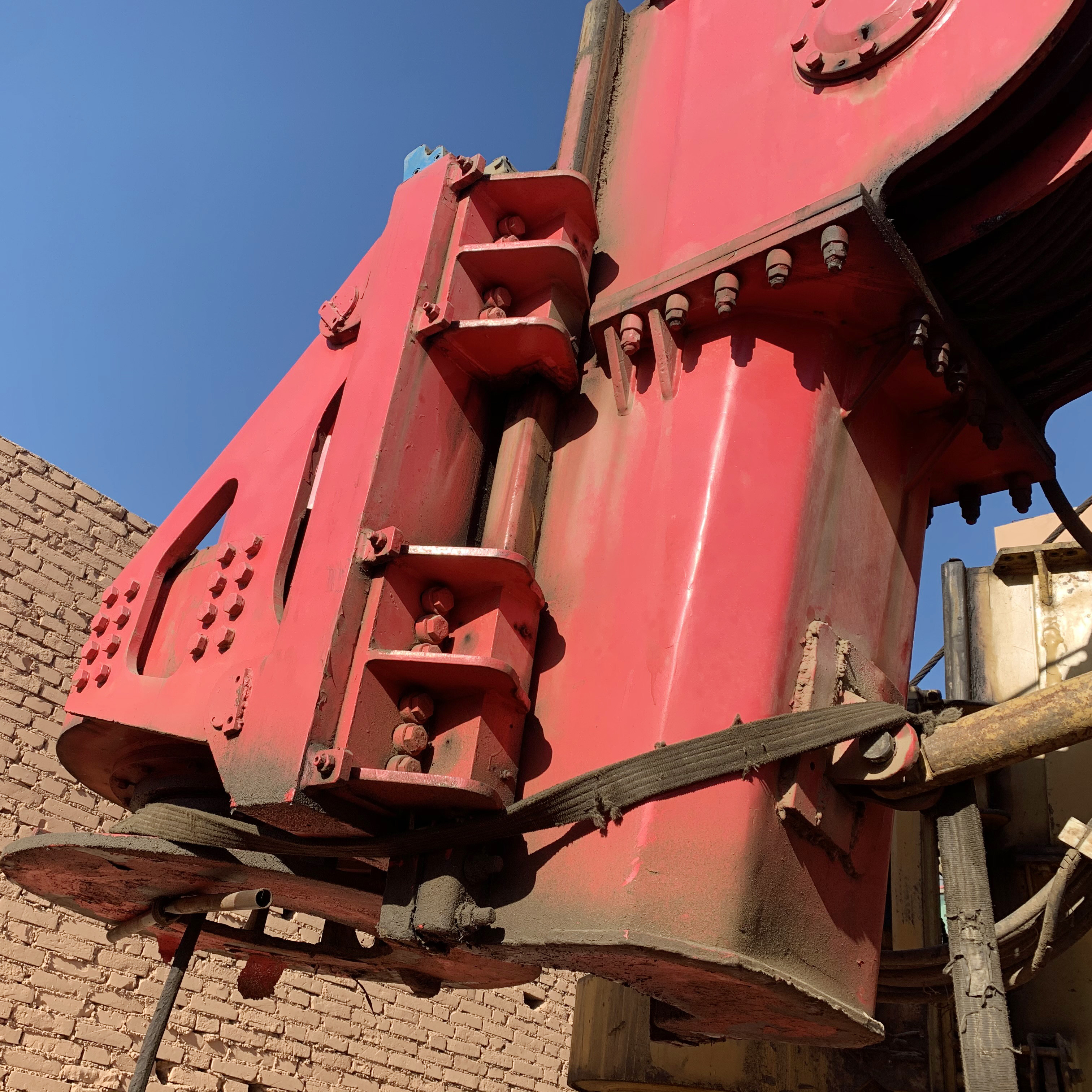

Used Sany brand SR220 Rotary Drilling Rigs With C9 Engine 2

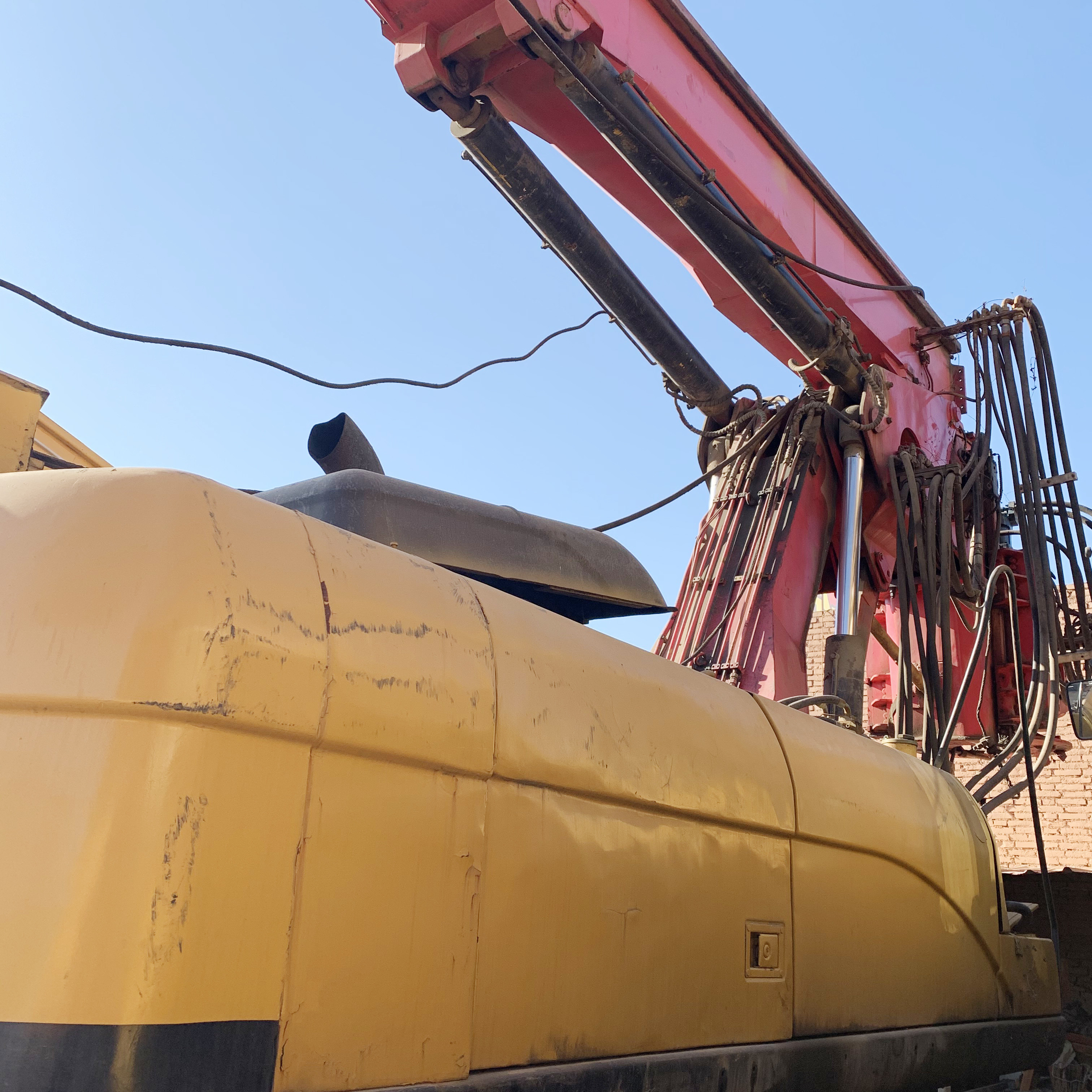

Used Sany brand SR220 Rotary Drilling Rigs With C9 Engine 3



Please contact Nancy Fan at any time if you are interested on it.
