Professional Concrete Pile Machine Hydraulic Geotechnical Surface Drill Rig Manufacturer for bridge building

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR138
Minimum Order Quantity: 1 unit
Packaging Details: Export Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Detail Information
Applicable Industries: Piling Work Key Components: Engine, Motor, Reducer. Hydraulic Pump , PLC
Undercarriage: CAT Chassis Hydraulic System: Rexroth
Warranty: 12month Or 2000 Working Hours Max Drilling Depth: 50m
Max Drilling Diameter: 1500mm Oversea Service: Africa, Singapore, Middle East
High Light:

rotary drilling machine

,

rotary rig machine

,

hydraulic rotary drilling rig


Product Description

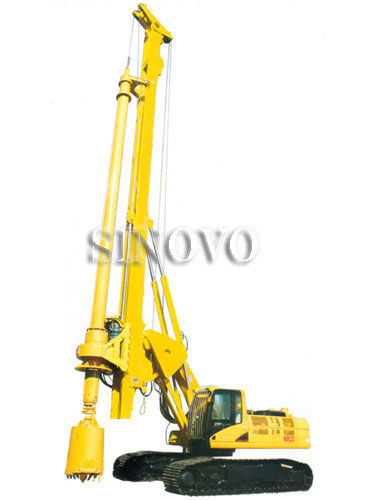

TR138D Rotary drilling rig mounted on original CAT323D with pull down cyclinder system;



It is suited for:

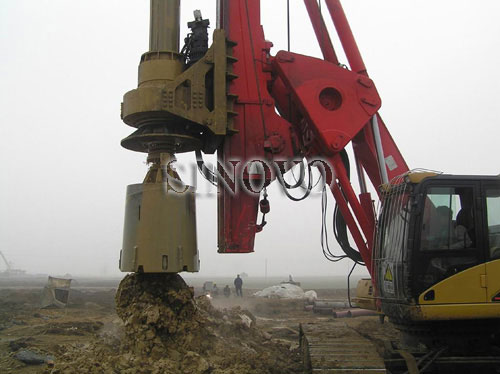

  • Rotary drilling
  • Drilling cased boreholes
  • Drilling boreholes wtih long hollow stem anuger



TR138D TechnicalParameters



Euro Standards

U.S Standards

Max drilling depth

50m

164 ft

Max hole diameter

1500mm

59in

Engine model

CAT C-6.4

CAT C-6.4

Rated power

110KW

148HP

Max torque

138kN.m

101747lb-ft

Rotating speed

6~32rpm

6~32rpm

Max crowd force of cylinder

100kN

22480lbf

Max extraction force of cylinder

140kN

31472lbf

Max stroke of crowd cylinder

3500mm

138in

Max pulling force of main winch

150kN

33720lbf

Max pulling speed of main winch

75m/min

246ft/min

Wire line of main winch

Φ26mm

Φ1.0in

Max pulling force of auxiliary winch

50kN

11240lbf

Undercarriage

CAT323D

CAT323D

Track shoe width

700mm

28in

Width of crawler

3020-4300mm

118-170in

Whole machine weight

45T

45T



Professional  Concrete Pile Machine Hydraulic Geotechnical Surface Drill Rig Manufacturer for bridge building 0
