TR160D High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/IS9001
Model Number: TR160D
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Exporting Standard
Delivery Time: 7-10 work days
Supply Ability: 30 set per month
Detail Information
Name: TR160D Hydraulic Mobile Rotary Drilling Rig With 50m Pile Depth Type: Rotary Drilling Rig
Model: TR160D Drilling Depth: 40/50m
Drilling Diameter: 1500mm Drilling Speed: 2200r/min
Rated Power: 154kW Max. Output Torque: 163kN´m
Interlocking Kelly Bar: ɸ377*4*10 Friction Kelly Bar (optional): ɸ377*5*10
Working Pressure Of Hydraulic System: 32Mpa Total Weight With Kelly Bar: 51000kg
High Light:

mobile rotary drilling rig machine

,

50m rotary drilling rig machine

,

mobile hydraulic rotary piling rig


Product Description

TR160D Hydraulic Mobile Rotary Drilling Rig With 50m Pile Depth



TR160D rotary drilling rig is new designed self-erecting rig which mounted on original Caterpillar base, adopts advanced hydraulic loading back technology, integrates advanced electronic control technology, which makes the whole performance of TR160D rotary drilling rig reach advanced world standards.


The TR160D rotary drilling rig has an operating weight oapprox 52 ton. It is suited forRotary drillingDrilling cased boreholes(installation of casing byrotary drive)TR160D Rotary Drilling Rig ismainly used in the constructionof civil and bridge engineering.it adopts advanced intelligenelectronic control system andload sensing type pilot controlhydraulic system, the wholemachine is safe and reliable.



TR160D Main Technical Specification:



TR160D Rotary drilling rig

Engine

Model



Cummins/CAT

Rated power

kw

154

Rated speed

r/min

2200

Rotary head

Max.output torque

kN´m

163

Drilling speed

r/min

0-30

Max. drilling diameter

mm

1500

Max. drilling depth

m

40/50

Crowd cylinder system

Max. crowd force

Kn

140

Max. extraction force

Kn

160

Max. stroke

mm

3100

Main winch

Max. pull force

Kn

165

Max. pull speed

m/min

78

Wire rope diameter

mm

26

Auxiliary winch

Max. pull force

Kn

50

Max. pull speed

m/min

90

Wire rope diameter

mm

16

Mast inclination Side/ forwards/ backwards

°

±4/5/90

Interlocking Kelly bar



ɸ377*4*11

Friction Kelly bar (optional)



ɸ377*5*11

Undercarrige

Max. traveling speed

km/h

2.3

Max. rotation speed

r/min

3

Chassis width (extension)

mm

3000/3900

Tracks width

mm

600

Caterpillar grounding Length

mm

3900

Working Pressure of Hydraulic System

Mpa

32

Total weight with kelly bar

kg

51000

Dimension

Working (Lx Wx H)

mm

7500x3900x16200

Transportation (Lx Wx H)

mm

12250x3000x3520





Feature and advantages of TR160D rotary drilling rig:



1. TR160D rotary drilling rig adopts CAT C7engine with ACERT M Technology offers more engine power and runs at lower speeds for better fuel efficiency and reduced wear. Turbo suction, Optimal machine performance, more power output, less emission.


2. The systems circuit adopts Caterpillar hydraulic system main control circuit and pilot control circuit, uses advanced loading back technology which negative flow hydraulic pump with constant power output extremely fit engine output, Pilot control makes the operation flexible, comfortable, exact and safe. Various kinds of hydraulic elements adopted world famous brand, such as Rexroth, Parker, etc. To ensure the hydraulic system is high reliability.


3. Electric systems are from Pal-fin auto-control, optimal design of electric control system improves the control accuracy and the feedback speed has separated auxiliary winch collocated on the mast from triangle parts, good view and maintenance more convenient. Compacted Parallelogram structure to reduce the length and height of the whole machine, reduce the machine's request for the work space, easy for transportation.


4. TR160D rotary head equipped BONFIGLIOLI or BREVINI reducer, and REXROTH or LINDE motor, heavy damping spring on the base of multilevel shock absorption design, which ensure operate more safe.
The newest designed winch drum structure is to avoid steel wire rope tangling and lengthen the service life of steel wire rope.


5. A large-space soundproofed cabin with high-power air condition and luxurious damping seat, provide high-comfort and pleasured working environment. At two side, there are very convenient and humanization -designed operating joystick, Touch screen and monitor show the parameters of system, des warning device for abnormal situation. The pressure gage can also provide more intuitive working condition for the operating driver. It has the pre-automatic detection function before starting the whole machine.





STANDARD EQUIPMENT:


a. Rotary head as single gear drive ( spin-off speed as optional)
b. Both winch controlled free-fall type
c. Main and auxiliary winch with special grooving
d. Hoist limit switch on main and auxiliary winches
e. Swivel for main rope
f. Pivoted anchor points for main rope




MEASURING AND CONTROL EQUIPMENT:


a. PLCcontrol system , colorful LCD display
b. Display of fault messages as plain texte
c. Mast inclination measnt on X / Y axes ( digitalanalog display)
d. Automatic vertical alignment of mast
e. Depth measuring device on main winch



Detailed Images:

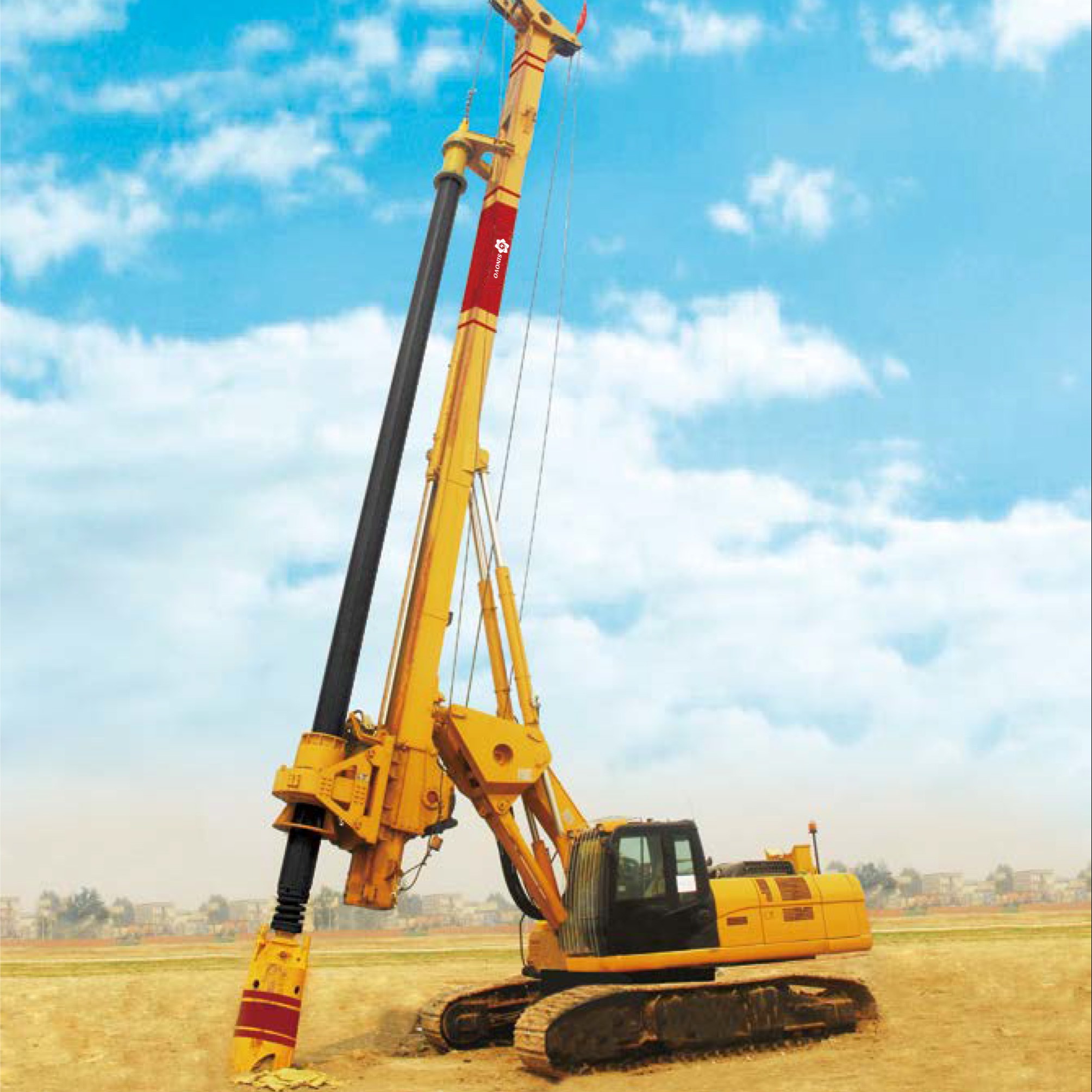

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 0

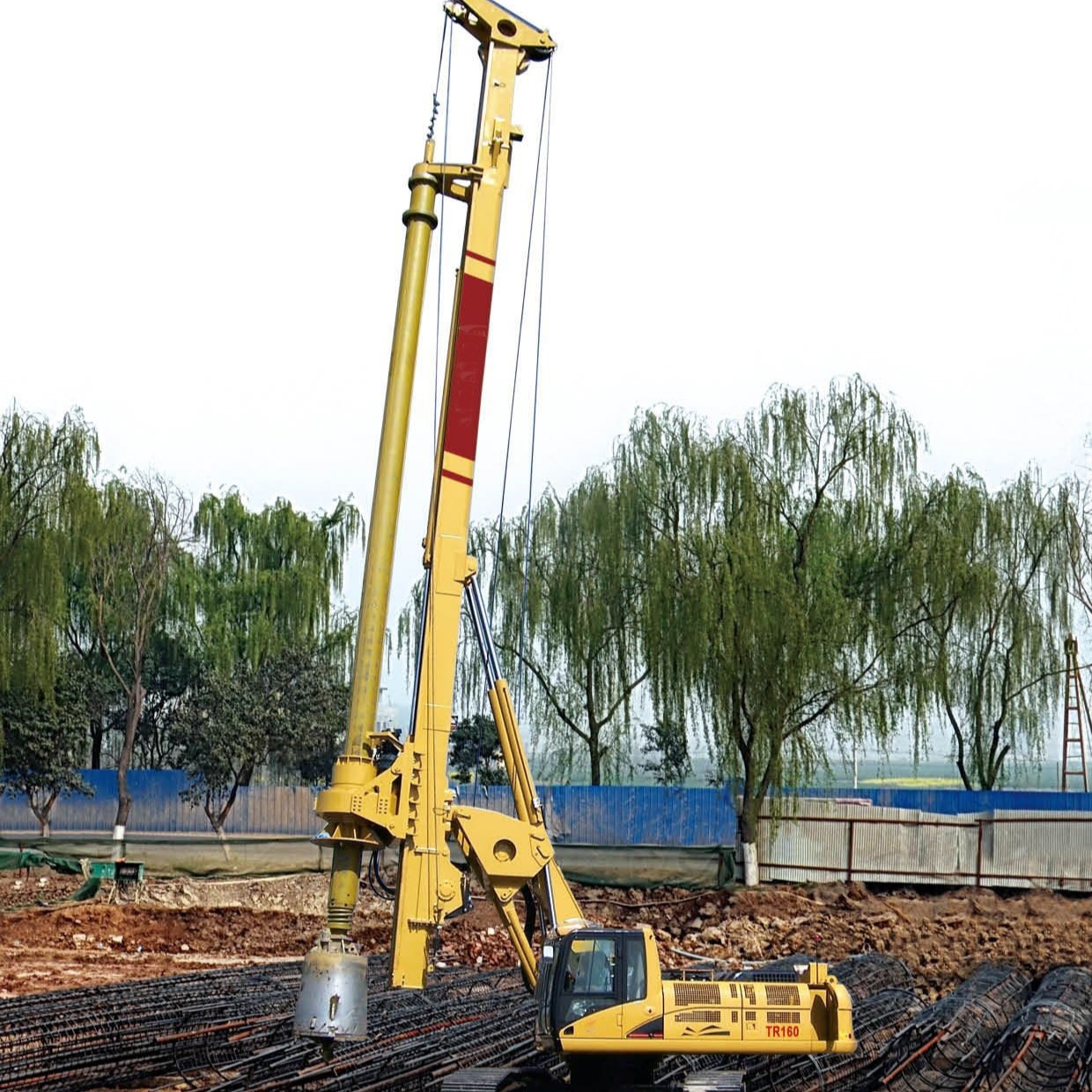

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 1

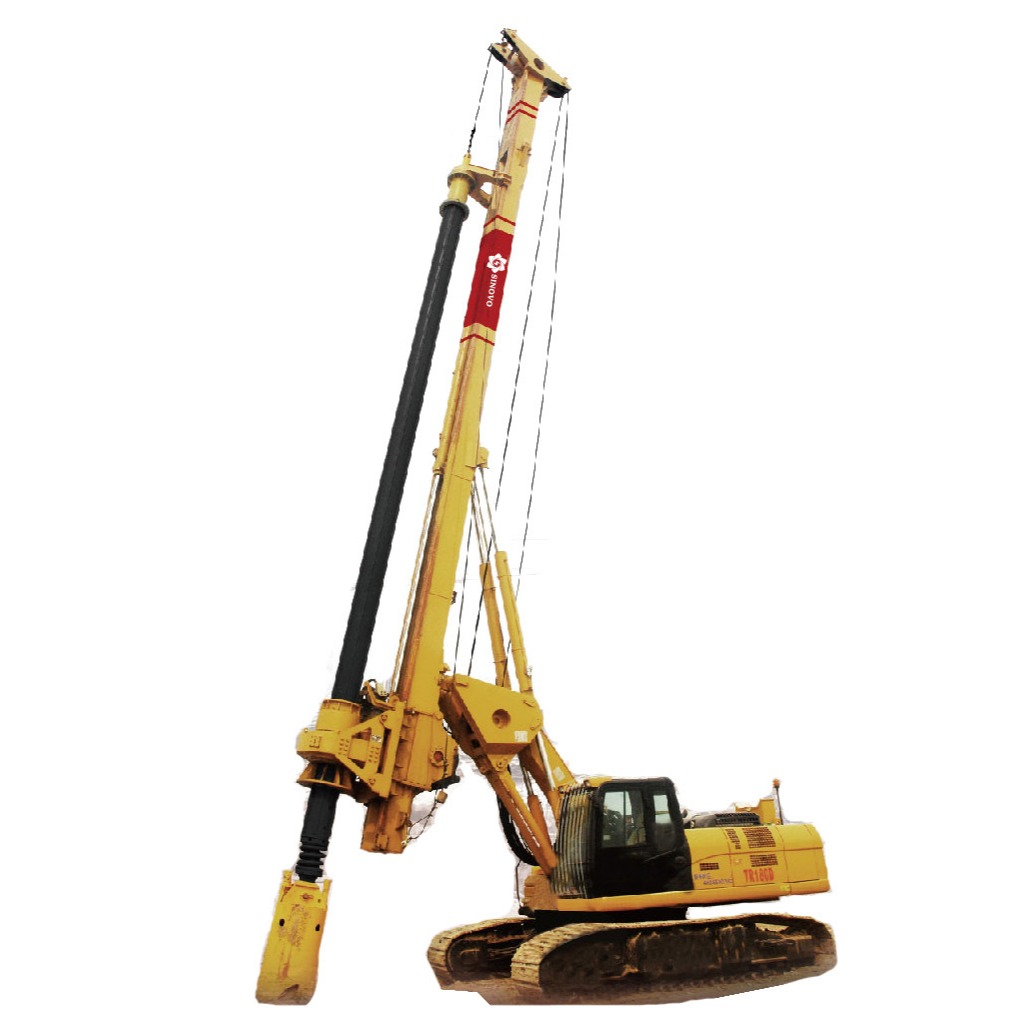

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 2

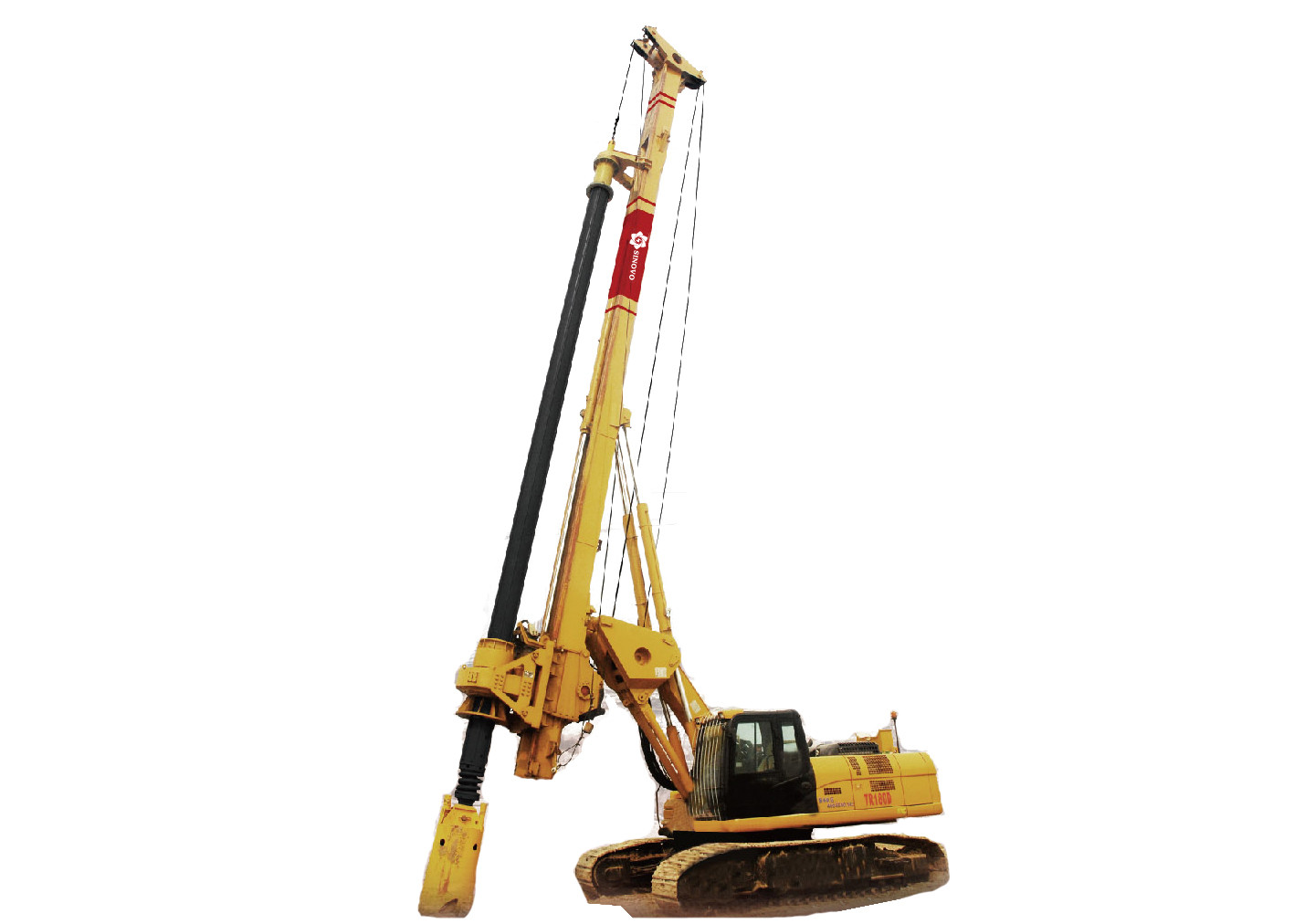

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 3

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 4

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 5

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 6

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 7

TR160D  High Working Efficiency Large Automatic Hydraulic Excavator Pile Driver Machine With 50m Pile Depth 8
