Depth 130m large diameter 4m Rotary Drilling Rig For Construction work TR500D mounted on original CAT base

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/IS9001
Model Number: TR500D
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Exporting Standard
Delivery Time: 7-10 work days
Supply Ability: 30 set per month
Detail Information
Name: Drilling Machinery TR500D 130m Depth Rotary Drilling Rig For Construction Type: Rotary Drilling Rig
Model: TR500D Engine Model: CAT C-18
Drilling Depth: 130m Drilling Diameter: 4000mm
Engine Rated Power: 420kW Max. Output Torque: 475kN´m
Undercarriage: CAT 385C Whole Machine Weight: 192T
High Light:

130m depth mini rotary drilling rig

,

construction mini rotary drilling rig

,

130m depth hydraulic rotary drilling machine


Product Description

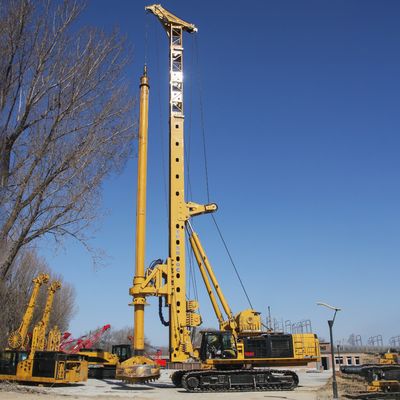

TR500D rotary drilling rig with drilling depth of 130m and diameter 4000mm for Construction work





Sinovo Group developed the rotary excavating series products with the most complete spectrums in China, with power head output torque ranging from 40KN to 420KN.M and construction bore diameter ranging from 350MM to 3,000MM. Its theoretical system has formed the only two monographs in this professional industry, namely Research and Design of Rotary Drilling Machine and Rotary Drilling Machine, Construction and Management.



Sinovo's rotary drilling rigs are designed with latest advanced technology composed of advantages based on Caterpillar undercarriage, which are the most versatile and used for deep foundation drilling, such as construction of railway, highway, bridge and skyscraper. Max depths of piling can reach more than 130m and Max Dia. can reach 4m



The TR500D rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications:
A. Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself;
B. Deep bored piles stabilized by drilling fluid or dry hole;
C. Soil Displacement Piling System;





TR500D Main Technical Specification:



Technical Parameters


Euro Standards

U.S Standards

Max drilling depth

130m

426 ft

Max hole diameter

4000mm

157in

Engine model

CAT C-18

CAT C-18

Rated power

420KW

563HP

Max torque

475kN.m

350217lb-ft

Rotating speed

6~20rpm

6~20rpm

Max crowd force of cylinder

300kN

67440lbf

Max extraction force of cylinder

440kN

98912lbf

Max stroke of crowd cylinder

13000mm

512in

Max pulling force of main winch

547kN

122965lbf

Max pulling speed of main winch

30-51m/min

98-167ft/min

Wire line of main winch

Φ42mm

Φ1.7in

Max pulling force of auxiliary winch

130kN

29224lbf

Undercarriage

CAT 385C

CAT 385C

Track shoe width

1000mm

39in

Width of crawler

4000-6300mm

157-248in

Whole machine weight

192T

192T







Feature and advantages of TR500D rotary drilling rig:



  1. High stability and quality original caterpillar base
  2. Compact powerful rotary head
  3. Emergency mode of operation for engine
  4. PCL controller for all electrically actuated functions, colorful LCD display
  5. Mast support unit
  6. Original Patented driving structure of double motors and double reduces
  7. Controlled free-fall main and auxiliary winch
  8. Innovative enhanced electro-hydraulic proportional system
  9. Ease of transport and quickly assembly





Q: Are you a trading company or a manufacturer?

A: We are a professional manufacturer, and our factory mainly produces series hydraulic rotary rig, hydraulic pile breaker, exploration equipment, core drilling rig and related piling equipment etc.



Q: What kind of product certification do you have?

A: Our series products have passed ISO9001, Gost and CE certifications.

We strictly perform quality inspection process before shipment and supply the best quality machines to our customers.



Q: Do you have after sales service?

A: Yes, we have professional service team to assist our clients . If you request, we can dispatch our engineer to your worksite to provide training for your staff. For the chassis, eg CAT chassis, our clients can enjoy global after service support.



Q: How about the warranty policy ?

A: Most of our products support 1 year or 2000 working hours warranty, please consult customer service for specific products



Q: Do you test all your goods before delivery?

A: Yes, we have strict quality inspection process before shipment, and the clients also authorize SGS to inspect our machine.
