| Name: | XY-1B Industrial Hydraulic Rock Core Drilling Machine 200m Max Drilling Depth | Model: | XY-1B |
|---|---|---|---|
| Certification: | CE/GOST/ISO9001 | Max. Drilling Depth: | 200,150,100,70,50,30m |
| Hole Diameter: | 59,75,91,110,130,150mm | Rod Diameter: | 42mm |
| Spindle SpSpindle Speed(4 Shift): | 71,142,310,620rpm | Spindle Stroke: | 450mm |
| Max. Feeding Pressure: | 15KN | Max. Lifting Capacity: | 25KN |
| Total Weight(not Include Power Unit): | 525kg | Overall Dimension: | 1433*697*1273mm |
| Highlight: | hydraulic rock core drill rig,depth 200m core drill rig,depth 200m core drilling rig |
||

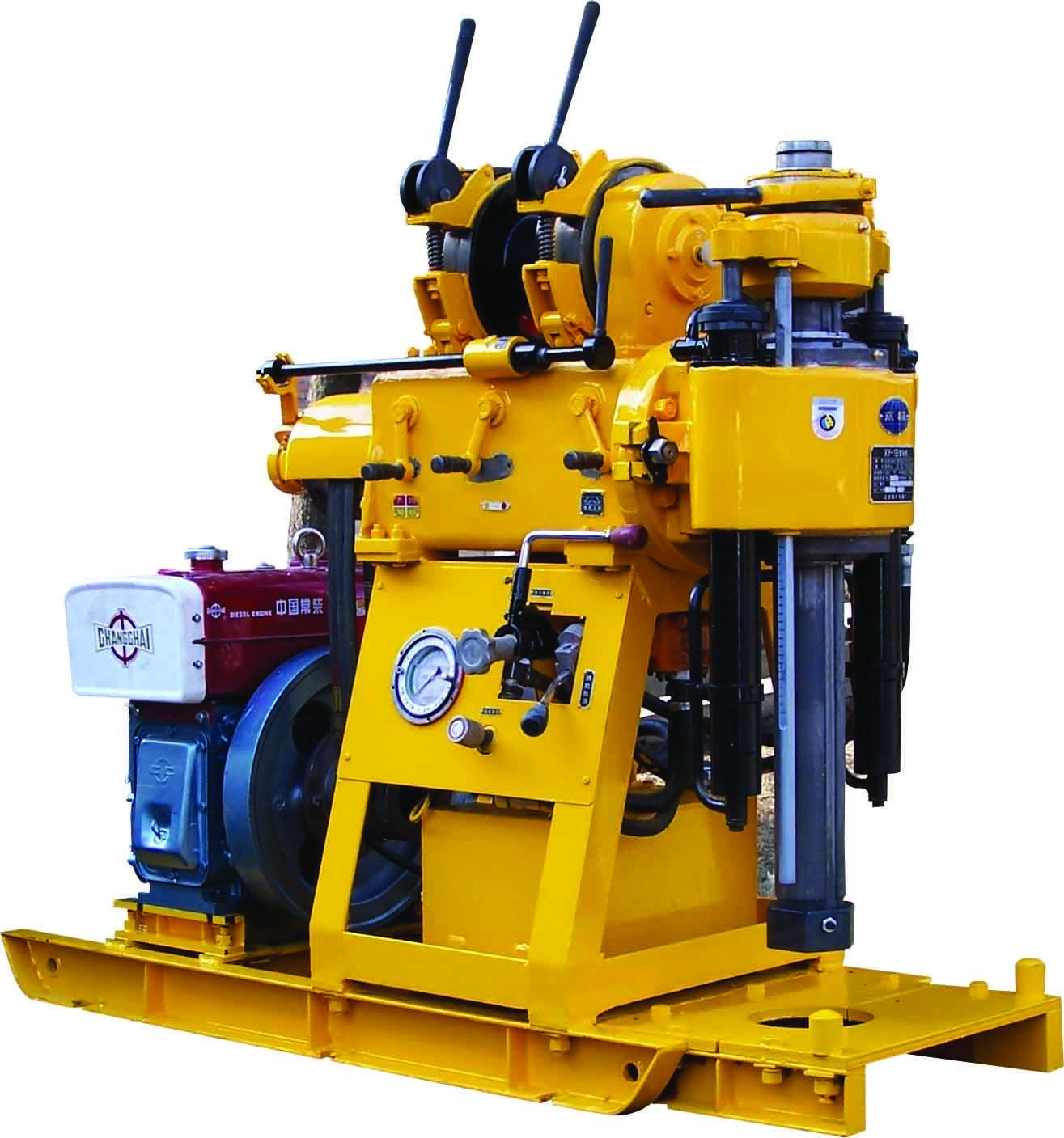

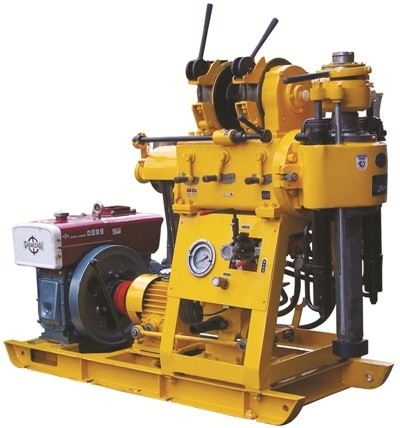

XY-1B Core Drill Rig/Waterwell Drilling Rig/Hydraulic-Feed Low Speed Drilling Rig 200m Depth
XY-1B low-speed core drilling rig is suitable for engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings; geological core drilling and physical survey; drilling of small grouting holes and blasting holes; drilling of small water wells, etc. .
Main performance parameters of XY-1B core drilling rig:
|
Fundamental |
Drilling depth |
200,150,100,70,50,30m |
|
|
Hole diameter |
59,75,91,110,130,150mm |
||
|
Rod diameter |
42mm |
||
|
Angle of drilling |
90°-75° |
||
|
Rotation |
Spindle speed(4 shift) |
71,142,310,620rpm |
|
|
Spindle stroke |
450mm |
||
|
Max. feeding pressure |
15KN |
||
|
Max. lifting capacity |
25KN |
||
|
Max. Spindle lifting speed without load |
0.05m/s |
||
|
Max. Spindle downward without load |
0.067m/s |
||
|
Max. Spindle output torque |
1.25KN.m |
||
|
Hoist |
lifting capacity(single line) |
15KN |
|
|
Drum speed |
19,38,84,168rpm |
||
|
Diameter of the drum |
140mm |
||
|
Drum circumferential velocity(second layers) |
0.166,0.331,0.733,1.465m/s |
||
|
Diameter of the wire rope |
9.3mm |
||
|
Brake diameter |
252mm |
||
|
Brake band broad |
50mm |
||
|
Hydraulic |
Model |
YBC-12/80 |
|
|
Rated pressure |
8Mpa |
||
|
Flow |
12L/min |
||
|
Rated speed |
1500rpm |
||
|
Power unit |
Type of diesel(ZS1105) |
Rated power |
12.1KW |
|
Rated rotating speed |
2200rpm |
||
|
Type of electrical motor(Y160M-4) |
Rated power |
11KW |
|
|
Rated rotating speed |
1460rpm |
||
|
Overall dimension |
XY-1B |
1433*697*1273mm |
|
|
XY-1B-1 |
1750*780*1273mm |
||
|
XY-1B-2 |
1780*697*1650mm |
||
|
Total weight(not include power unit) |
XY-1B |
525kg |
|
|
XY-1B-1 |
595kg |
||
|
XY-1B-2 |
700kg |
||
Applications of XY-18 core drilling rig:
1. Engineering geological survey of railway, hydropower, transportation, bridge, dam foundation and other buildings;
2. Geological core drilling and physical survey;
3. Drilling of small grouting holes and blasting holes;
4. Drilling of small water wells, etc. .
Features of XY-1B core drilling rig:
1. The XY-1B core drilling rig is equipped with an upper ball clamping mechanism and a hexagonal active drill pipe, which can implement non-stop down-rod, high work efficiency, safety and reliability.
2. The XY-1B core drilling rig is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, which is convenient for grasping the situation in the hole.
3. The XY-1B core drilling rig has a centralized handle and is easy to operate.
4. The XY-1B core drilling rig has a compact structure, small volume and light weight, which is easy to disassemble and transport, and is suitable for work in plains and mountainous areas.
