| Name: | XY-3B 600m Hydraulic Core Drilling Rig For Diamond Drilling | Model: | XY-3B |
|---|---|---|---|
| Certification: | CE/GOST/ISO9001 | Max. Drilling Depth: | 600m,150m,80m,50m |
| Hole Diameter: | 76mm,273mm,500mm,800mm | Rod Diameter: | 50,60mm |
| Co-rotation: | 75,135,160,280,355 495,615,1030r/min | Spindle Stroke: | 550mm |
| Type Of Diesel: | CZ4102 | Rated Power: | 35.3KW |
| Total Weight(not Include Power Unit): | 1650kg | Overall Dimension: | 2500*1100*1700mm |
| Highlight: | 600m diamond drill rig,diesel diamond drill rig hydraulic,600m core drilling rig |
||

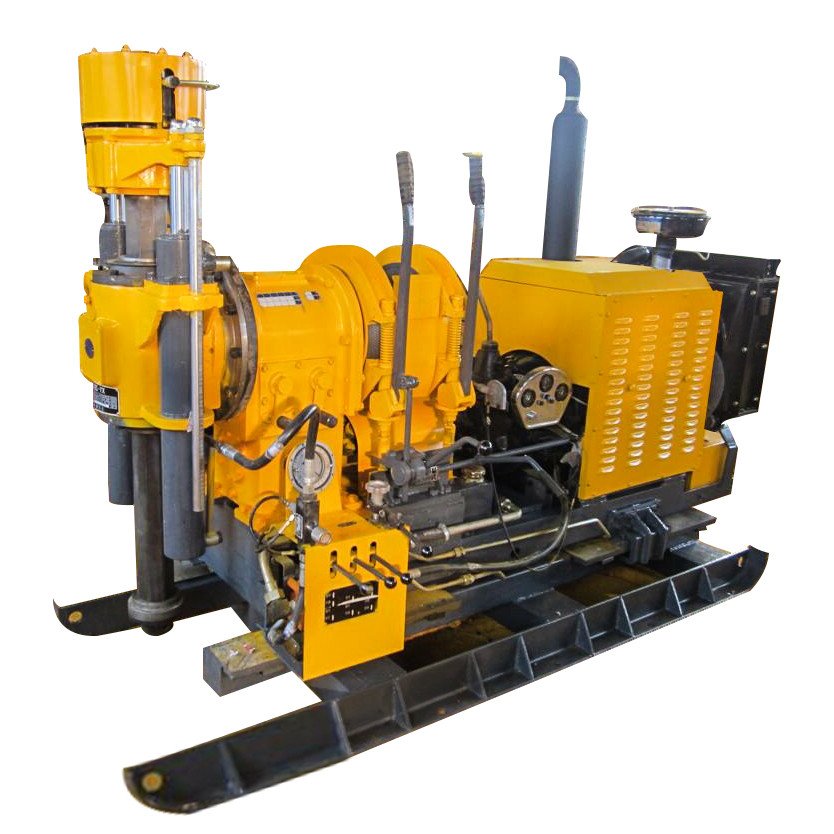

Diesel or Electrical Motor XY-3B Core Drilling Rig with 35.3KW/2000rpm/Max.Output Torque 3550N.m /600m Depth
The XY-3B core drilling rig is a 600-meter vertical shaft drilling rig, which can be powered by a diesel engine or an electric motor. XY-3B core drilling rig is mainly used for diamond drilling and cemented carbide drilling of solid ore deposits, and can also be used for engineering geological exploration drilling and foundation pile hole drilling.
Main performance parameters of XY-3B core drilling rig:
|
Fundamental |
Drilling depth |
Ф76mm |
600m |
|
|
Ф273mm |
150m |
|||
|
Ф500mm |
80m |
|||
|
Ф800mm |
50m |
|||
|
Diameter of drilling rod |
50,60mm |
|||
|
Angle of drilling |
70°-90° |
|||
|
Rotation |
Co-rotation |
75,135,160,280,355 |
||
|
Reverse rotation |
62,160r/min |
|||
|
Spindle stroke |
550mm |
|||
|
Spindle pulling force |
68KN |
|||
|
Spindle feeding force |
46KN |
|||
|
Max. output torque |
3550N.m |
|||
|
Hoist |
Lifting speed |
0.31,0.62,1.18,2.0m/s |
||
|
Lifting capacity |
30KN |
|||
|
Cable diameter |
15mm |
|||
|
Drum diameter |
264mm |
|||
|
Brake diameter |
460mm |
|||
|
Brake band width |
90mm |
|||
|
Frame moving |
Frame moving stroke |
410mm |
||
|
Distance away from hole |
300mm |
|||
|
Hydraulic |
Type |
CBW-E320 |
||
|
Rated pressure |
8Mpa |
|||
|
Rated flow |
40L/min |
|||
|
Power unit |
Type of diesel |
Rated power |
35.3KW |
|
|
Rated speed |
2000r/min |
|||
|
Type of electrical motor(Y200L-4) |
Rated power |
30KW |
||
|
Rated speed |
1450r/min |
|||
|
Overall dimension |
2500*1100*1700mm |
|||
|
Rig weight |
with diesel engine |
1650kg |
||
|
with electric motor |
1550kg |
|||
Features of XY-3B core drilling rig:
1. The XY-3B core drilling rig has compact mechanical transmission structure, light weight, large vertical shaft diameter of the gyrator, large bearing distance, and good rigidity of the drilling rig; the large through-hole diameter vertical shaft is equipped with a hexagonal active drill pipe to ensure the transmission of torque.
2. The XY-3B core drilling rig has a high speed and a reasonable speed range, which can meet the requirements of small-diameter diamond drilling, large-diameter carbide drilling and drilling of various engineering holes.
3. The hydraulic system of the XY-3B core drilling rig can adjust both the feeding pressure and the feeding speed in the process of controlling the feeding, which can adapt to the drilling needs of various strata.
4. The XY-3B core drilling rig is equipped with a bottom hole pressure indicator, which is easy to grasp the situation in the hole.
5. The XY-3B core drilling rig adopts the transmission and clutch of the automobile, which has good versatility and is easy to maintain.
