|Name:||Diamond Core Drilling Rig XY-44A Spindle Type Diesel Engine 1400m Drilling Capacity||Model:||XY-44|
|Certification:||CE/GOST/ISO9001||Max. Drilling Depth:||1400m|
|Hole Diameter:||50-500mm||Rotation Unit Type:||Mechanical Rotary Type Hydraulic Feeding By The Double Cylinder|
|Spindle Stroke:||600mm||Type Of Diesel:||R4105ZG53|
|Rated Power:||56KW||Total Weight(not Include Power Unit):||2850kg|
spindle type core drilling rig,
diesel engine core drilling rig,
1400m capacity diamond drill rig

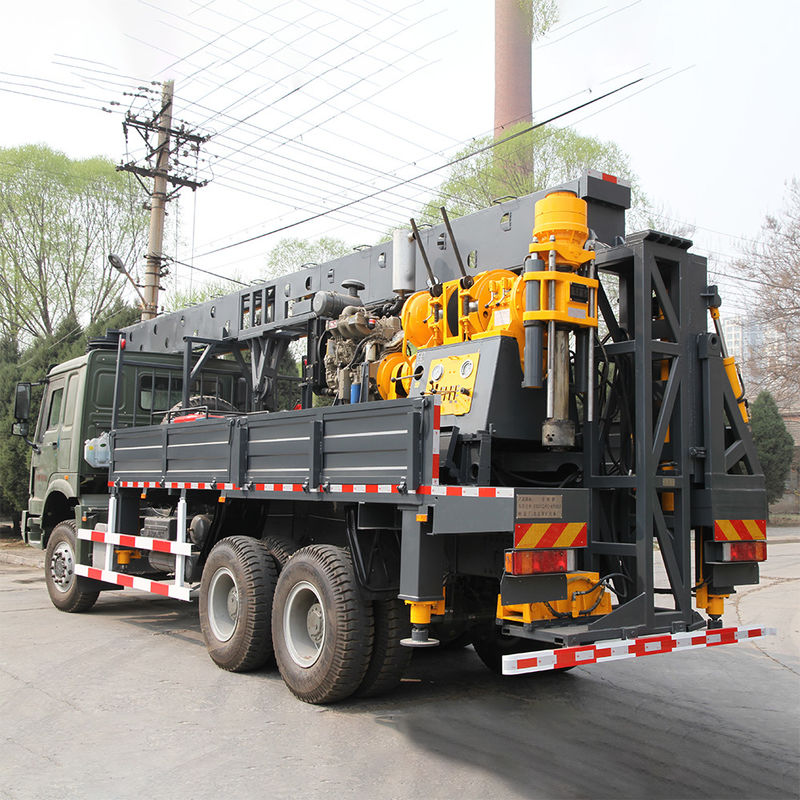

Diamond Core Drilling Rig XY-44A Spindle Type Diesel Engine 1400m Depth
XY-44 core drilling rig is mainly adapted to diamond bit drilling and carbide bit drilling of solid bed. It can also be used for engineering geology and groundwater exploration; shallow layer oil and natural gas exploitation, even hole for sap ventilation and sap drain. The drilling rig has compact, simple and suitable construction. It is light, and can be assembled and disassembled conveniently. With a large number of rotation speed series and appropriate range of rotation speed, low speed with high torque. The drill is suitable for alloy core drilling and diamond core drilling, as well as engineering geological exploration, water well and foundation hole drilling.
Main performance parameters of XY-44 core drilling rig:
|Max. Drilling Depth||Core drilling||Ф55.5mm*4.75m||1400m|
|Foundation stake drilling rod:89mm(EU)||Unconsolidated
|Angle of drilling||0°-360°|
|Type||Mechanical rotary type hydraulic
feeding by the double cylinder
|Inner diameter of spindle||93mm|
|Spindle speed||Speed||1480r/min(used for core drilling)|
|Max. pulling up force||12t|
|Max. feeding force||9t|
|Max. output torque||4.2KN.m|
|Hoist||Type||Planetary gear transmission|
|Diameter of the wire rope||17.5,18.5mm|
|Ф17.5mm wire rope||110m|
|Ф18.5mm wire rope||90m|
|Max. lifting capacity(single wire)||5t|
|Type||Slide drill(with slide base)|
|Frame moving stroke||460mm|
|Type||Single gear oil pump|
|Type of diesel
|Rated rotating speed||1500r/min|
|Type of electrical motor(Y225S-4)||Rated power||37KW|
|Rated rotating speed||1480r/min|
|Total weight(including power unit)||2850kg|
Features of XY-44 core drilling rig:
(1) XY-44 core drilling rig is with big spindle inner diameter(Ф93mm), double hydraulic cylinder for feeding, long stroke (up to 600 mm), and strong process adaptability, which is very suitable for wire-line coring drilling of large diameter drill pipe, and is helpful to improve drilling efficiency and reduce hole accident.
(2) XY-44 core drilling rig has large drilling capacity, and the max rate drilling depth of Ф71mm wire-line drill rod can reach 1000 meters.
(3) XY-44 core drilling rig is light in weight , and can be assembled and disassembled conveniently. The drill has a net weight of 2300 kilogram, and the main machine can be disassembled into 10 components, which make it to be flexible in movement and suitable for mountain work.
(4) The hydraulic chuck adopts one-way oil supply, Spring clamp, hydraulic release, chuck clamping force, clamping stability
(5) Equipped with water brake, the rig can be used for deep hole drilling, smooth and safe under drilling.
(6) XY-44 core drilling rig adopts single gear oil pump to supply oil. Its virtues are installation simple, eay to use, low consumption of power, low oil temperature of hydraulic system and stable working. The system is equipped with hand oil pump, so we can still use the hand oil pump to take out the drilling tools even the engine can not work.
(7) XY-44 core drilling rig is compact in structure, rational in overall arrangement, easy maintenance and repair.
(8) XY-44 core drilling rig has a low center of gravity, long skid stroke, and is fixed firmly, which bring good stability with high speed drilling.
(9)Equipped with shockproof instrument, and the instrument has long life, which can help us grasp the hole situation. Less control lever make the operation flexible and reliable.
