Max Torque 220kN.m CAT Chassis Foundation Machinery Bored Hydraulic Piling Rig Machine

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR220D
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: International Export Package
Delivery Time: 7-10 work days
Payment Terms: T/T&L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30 unit per month
Detail Information
Max Drilling Depth: 60-66m Max Hole Diameter: 2000mm
Rated Power: 213kw Engine Model: CAT C-9
Max Torque: 220kN.m Rotating Speed: 6~27rpm
Track Shoe Width: 800mm Weight: 65t
Applicable Industries: Piling Work
High Light:

66m rotary head drilling rig


60m rotary head drilling rig


213kw rotary drilling equipment

Product Description

TR220 Rotary Drilling Rigs  Max drilling depth 60-66m Whole machine weight 65T

Designed and manufactured to ISO9001 standards and CE certificate. Hydraulic piling rig 220 is composed of a Caterpillar base unit on crawlers and of a drilling application module for:
a. Drilling with telescopic friction or interlocking Kelly bars – standard supply
b. Optional casing oscillator application - optional
Main Features

1. Retractable original CAT 336D chassis with EFI turbocharged engine ensures the stability of the whole machine meet the performance on various applications and construction environment.

Advanced main pump adopted negative ow constant power variable automatic control, which can realize the optimal matching in the load and the output power of engine. Width of crawler can be adjusted between 3000 and 4300mm.

Counterweight moved back wards increases the stability and reliability

2. The system circuit is using Caterpillar hydraulic system as the main control circuit and the pilot control circuit. With the advanced loading back technology, the system achieves optimum matching in negative flow constant power hydraulic pump and output power of engine.Pilot control makes the operation exible, comfortable, exact and safe. Various kinds of hydraulic elements adopted world famous brand, such as Rexroth, Parker, etc. ensure the hydraulic system high reliability.

3. Electric systems are from Pal-Fin auto-control, optimal design of electric control system improves the control accuracy and the feed back speed. Equipped advanced automatic switch of manual control and auto control, the electronic leveling device can monitor and adjust the mast automatically, and guarantee a verticality condition during operation.

4. TR220D has separated auxiliary winch collocated on the mast from triangle parts, good view and maintenance more convenient. The main winch has highlights of touch-bottom protection, priority control and fast line speed,which can greatly increase main winch releasing speed and decrease ineective working time.

5. Compacted Parallelogram structure reduces the length and height of the whole machine, thus reduce the machine's requirement on the work space, easy transportation.

6. The newest designed winch drum structure is to avoid steel wire rope tangling and lengthen the service life of steel wire rope.
Rotary Drilling Rig TYPE TR220


TR220-Technical specifications
  Euro Standards U.S. Standards
Max drilling depth 60-66m 197-217 ft
Max hole diameter 2000mm 79in
Engine model CAT C-9 CAT C-9
Rated power 213KW 286HP
Max torque 220kN.m 162206lb-ft
Rotating speed 6~27rpm 6~27rpm
Max crowd force of cylinder 180kN 40464lbf
Max extraction force of cylinder 200kN 44960lbf
Max stroke of crowd cylinder 5300mm 209in
Max pulling force of main winch 200kN 44960lbf
Max pulling speed of main winch 78m/min 256ft/min
Wire line of main winch Φ28mm Φ1.1in
Max pulling force of auxiliary winch 110kN 24728lbf
Undercarriage CAT 330D CAT 330D
Track shoe width 800mm 32in
width of crawler 3000-4300mm 118-170 in
Whole machine weight 65T 65T

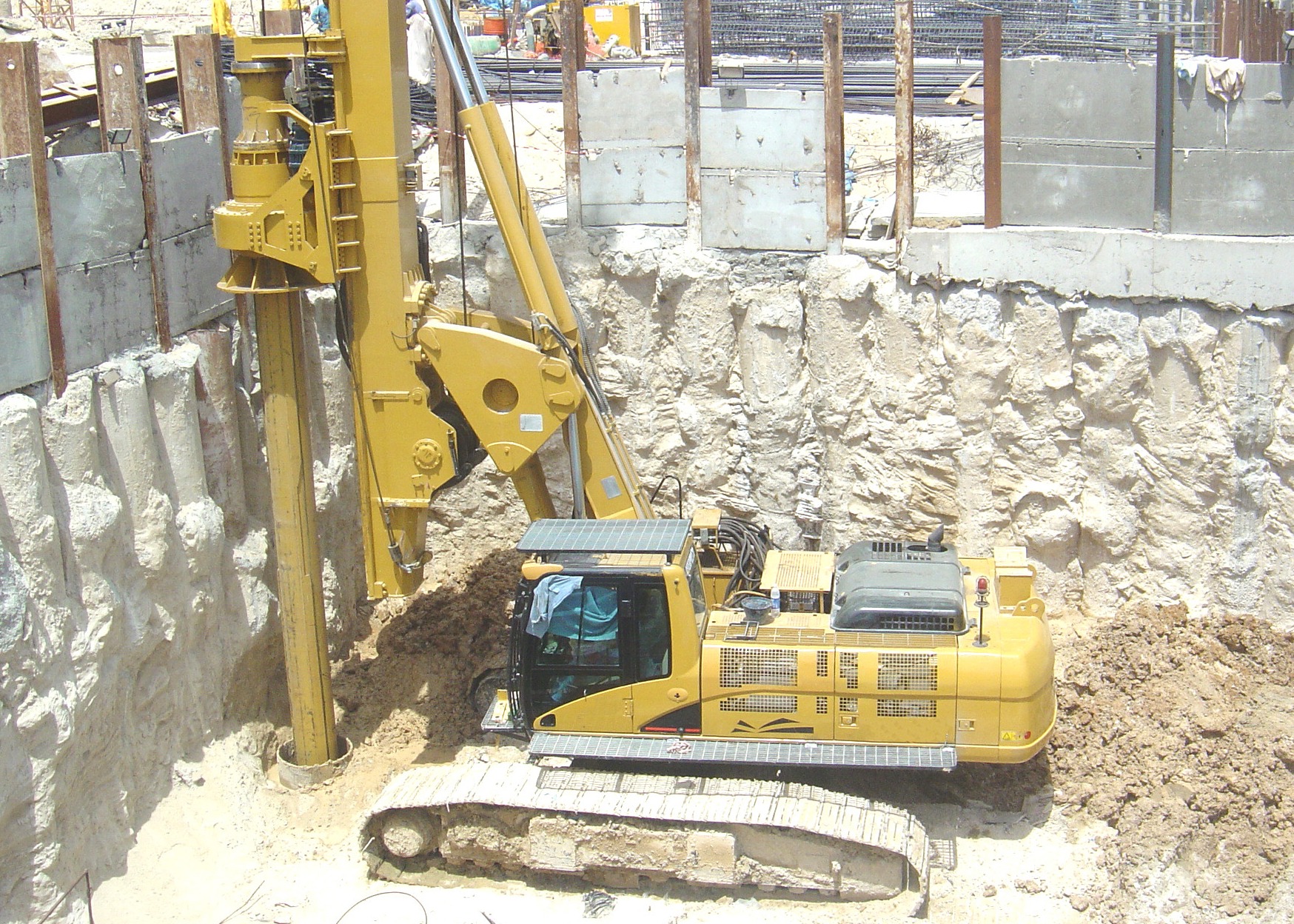

Max Torque 220kN.m CAT Chassis Foundation Machinery Bored Hydraulic Piling Rig Machine 0

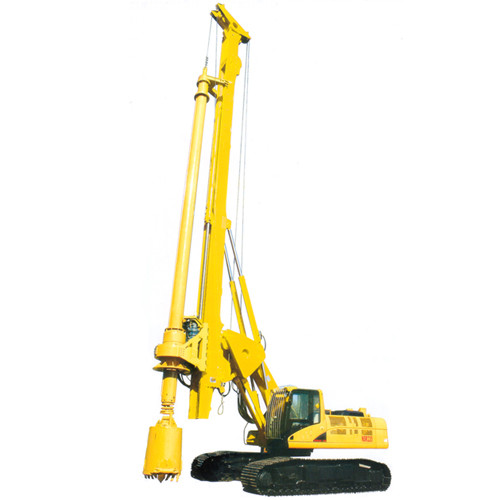

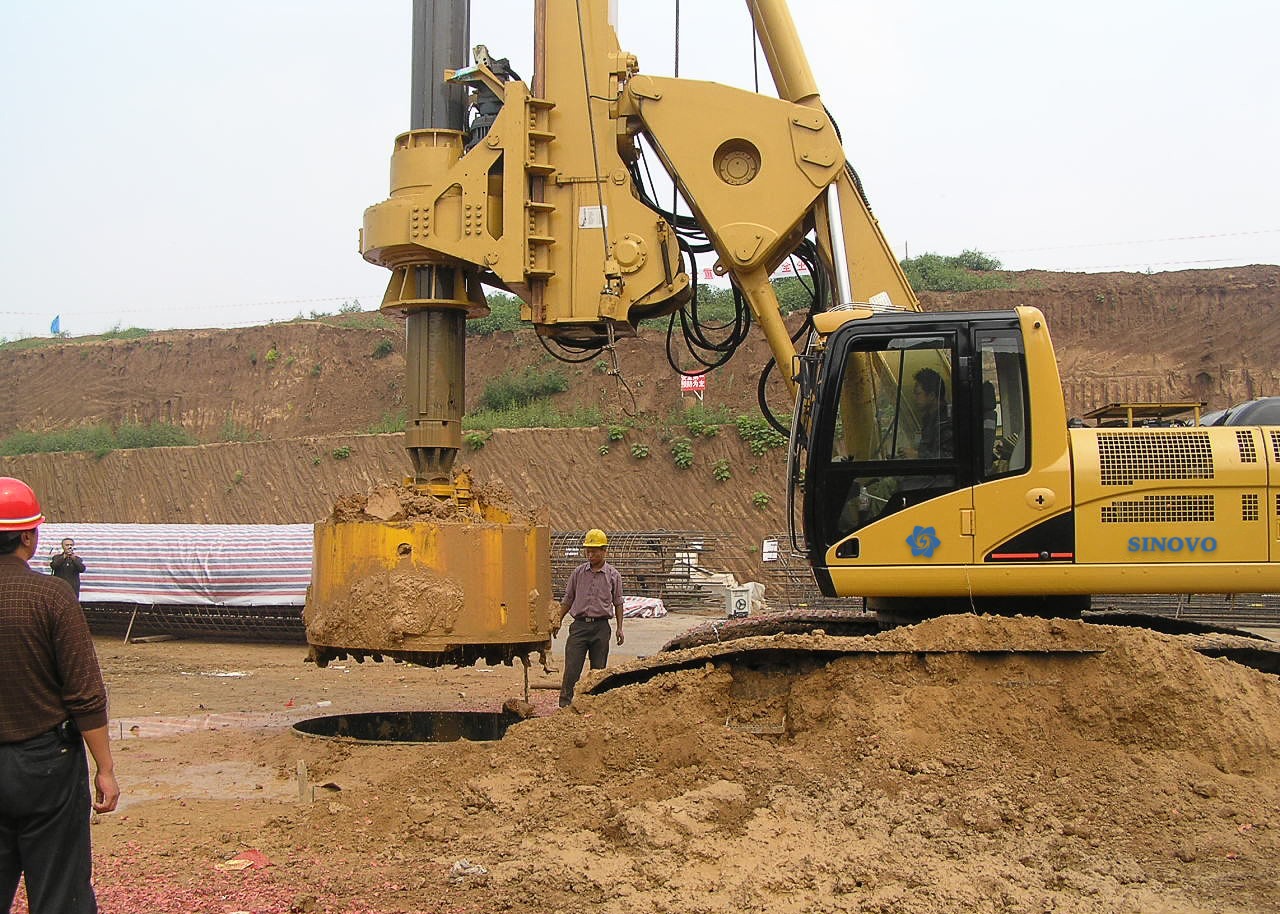

Max Torque 220kN.m CAT Chassis Foundation Machinery Bored Hydraulic Piling Rig Machine 1Max Torque 220kN.m CAT Chassis Foundation Machinery Bored Hydraulic Piling Rig Machine 2
