Low Maintenance Cost CAT Chassis Hydraulic bored piling Machine TR300D

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR300D
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Supply Ability: 30 unit per month
Detail Information
Model: TR300D Certificate: CE/GOST/ISO9001
Max Drilling Depth: 95m Max Hole Diameter: 2500mm
Engine Model: CAT C13 Rated Power: 277KW
Max Torque: 310kN.m Width Of Crawler: 3000-4400mm
High Light:

95m rotary drilling rig

,

cat c13 engine rotary drilling rig

,

95m hydraulic rotary drilling rig


Product Description

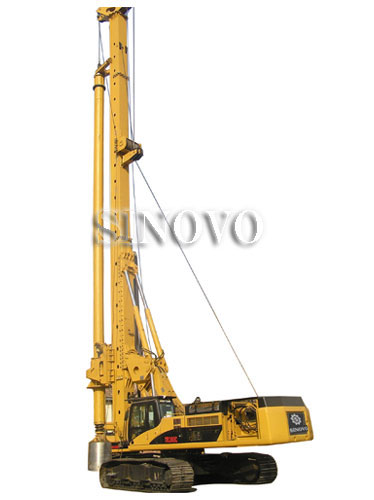

 TR300D Rotary Drilling Rig mounted on CAT undercarriage with Depth 95m and Dia 2500mm


Designed and manufactured to ISO9001 and CE standards.



Hydraulic piling rig TR300D is composed of a Caterpillar base unit on crawlers and of a drilling application module for:

  •    Drilling with telescopic friction or interlocking Kelly bars – standard supply
  •    Optional casing oscillator application - optional
  •    Optional CFA kit application - optional



Specification of TR300D Rotary Drilling Rigs:



TR300D-Technical specifications



Euro Standards

U.S. Standards

Max drilling depth

95m

312ft

Max hole diameter

2500mm

98in

Engine model

CAT C-13

CAT C-13

Rated power

277KW

377HP

Max torque

310kN.m

228563lb-ft

Rotating speed

6~23rpm

6~23rpm

Max crowd force of cylinder

400kN

89920lbf

Max extraction force of cylinder

400kN

89920lbf

Max stroke of crowd cylinder

14000mm

551in

Max pulling force of main winch

300kN

67440lbf

Max pulling speed of main winch

70m/min

230ft/min

Wire line of main winch

Φ32mm

Φ1.3in

Max pulling force of auxiliary winch

120kN

26976lbf

Undercarriage

CAT345C

CAT345C

Track shoe width

800mm

32in

width of crawler

3000-4400mm

118-173 in

Whole machine weight

95T

95T





FAQ:



Q1:What's your payment term?
A: We accept T/T(30% down payment and balance before shipping) and L/C mostly. But if you prefer other payment terms please contact us for further information.



Q2: Whats's the warranty time?
A:2000 Working hours or one year after shipmeng,whichever comes first.



Q3: What's your service ?
We can offer professional oversea technical support and good after-sale service to you.



Modification service will be supplied according to your special request and configurations of your owned excavators.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
