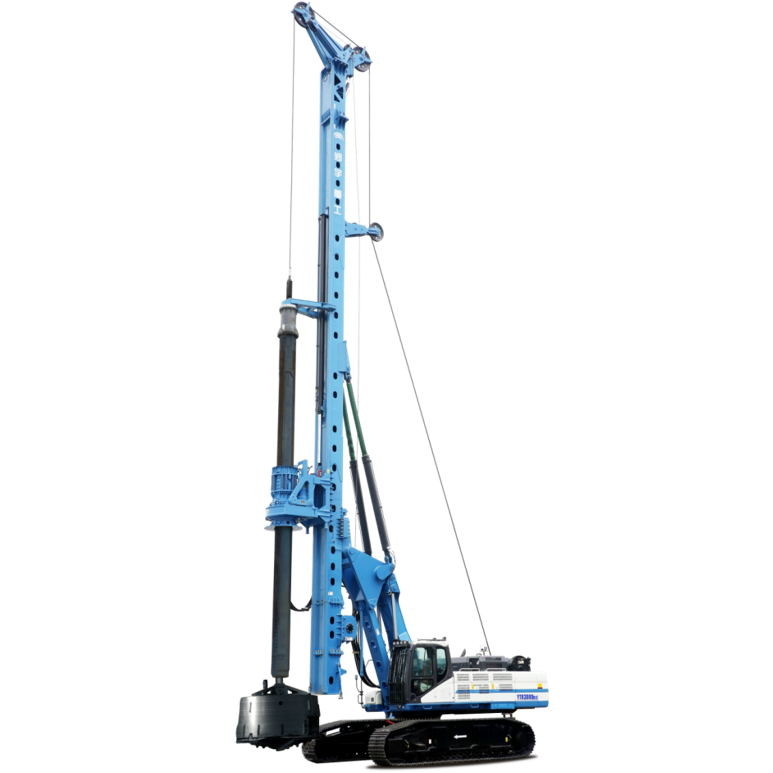

DOOSAN Chassis Rotary Drilling Rigs torque 280kN.m With Max Hole Diameter 2500mm

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR280
Minimum Order Quantity: 1 unit
Packaging Details: Export Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Detail Information
Max Drilling Depth: 85m Max Hole Diameter: 2500mm
Rated Power: 261KW Max Crowd Force Of Cylinder: 180kN
Whole Machine Weight (with Kelly Bar): 78T Applicable Industries: Piling Work
Undercarriage: DOOSAN Chassis Warranty: 12month Or One Year
High Light:

rotary drilling machine

,

rotary rig machine

,

hydraulic rotary drilling rig


Product Description



TR280 Rotary  Drilling Rigs are designed with latest advanced technology composed of advantages based on DOOSANr undercarriage, which are the most versatile and used for deep foundation drilling, such as construction of railway, highway, bridge and skyscraper.

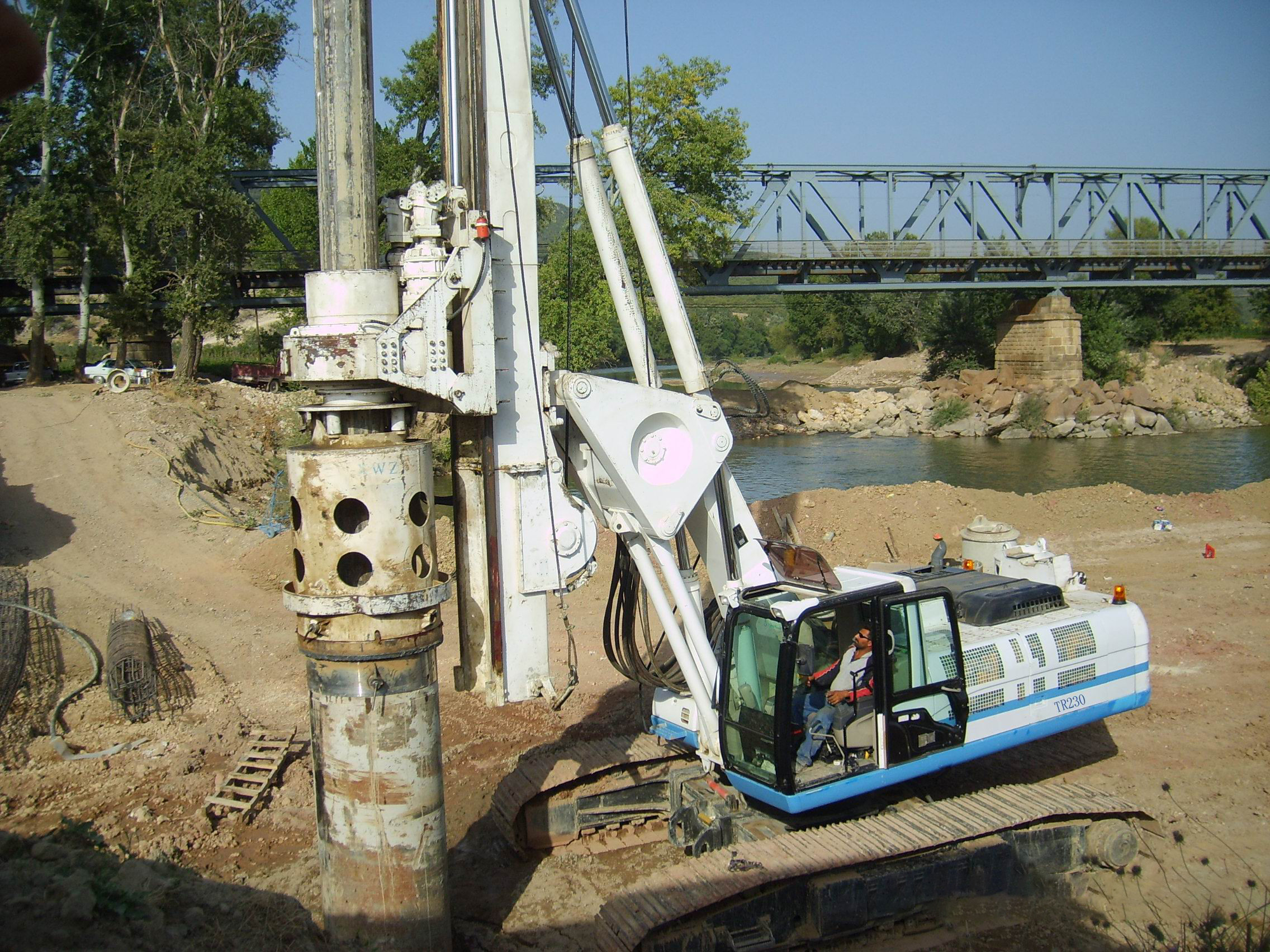

The rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications: Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself; Deep bored piles stabilized by drilling fluid or dry hole; Soil Displacement Piling System





Main Features:
- High stability and quality original caterpillar base
- Compact powerful rotary head
- Emergency mode of operation for engine
- PCL controller for all electrically actuated functions, colorful LCD display
- Mast support unit
- Original Patented driving structure of double motors and double reduces
- Controlled free-fall main and auxiliary winch
- Innovative enhanced electro-hydraulic proportional system
- Ease of transport and quickly assembly



TR280- Technical specifications



Euro Standards

U.S. Standards

Max drilling depth

85m

279ft

Max hole diameter

2500mm

98in

Engine model

SCANIA

SCANIA

Rated power

294KW

399.8HP

Max torque

280kN.m

206444lb-ft

Rotating speed

6~27rpm

6~27rpm

Max crowd force of cylinder

180kN

40464lbf

Max extraction force of cylinder

200kN

44960lbf

Max stroke of crowd cylinder

5300mm

209in

Max pulling force of main winch

240kN

53952lbf

Max pulling speed of main winch

63m/min

207ft/min

Wire line of main winch

Φ32mm

Φ1.3in

Max pulling force of auxiliary winch

110kN

24728lbf

Undercarriage

DOOSAN

DOOSAN

Track shoe width

800mm

32in

width of crawler

3000-4300mm

118-170 in

Whole machine weight (with kelly bar)

78T

78T





Our advantage



1. Manufactuer of the most complete series of small and medium rotary drilling rig.



2. Series drilling rigs have passed CE& ISO9001. GOST certification.



3. 30 people R&D team with an average of 15 years rich experience.



4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.



5. Provide customized services
