TR400 Heavy Construction Machine Bored Piling Equipment Hydraulic Earth Piling Rig

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: TR400
Minimum Order Quantity: 1 unit
Packaging Details: Export Package
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Detail Information
Applicable Industries:: Piling Work Max Drilling Depth: 110m
Max Drilling Diameter: 3000mm Undercarriage: CAT Chassis
Key Components: Engine, Motor, Reducer. Hydraulic Pump , PLC Max. Torque: 400kN.m
Warranty: 2000 Working Hours Or One Year Oversea Service: Africa, Singapore, Middle East
High Light:

rotary drilling machine


rotary rig machine


hydraulic rotary drilling rig

Product Description


TR400 Rotary Drilling Rig Rotary Drilling Rigs mounted on original CAT Chassis Max torque 400kN.m


TR Series rotary drilling rigs are designed with latest advanced technology composed of advantages based on Caterpillar undercarriage, which are the most versatile and used for deep foundation drilling, such as construction of railway, highway, bridge and skyscraper. Max depths of piling can reach more than110m and Max Dia. can reach 3.5 m The rotary drilling rigs can be specially equipped with telescopic friction & interlocking Kelly bar, and casing oscillator for suiting the following applications: Cased bore piles with casing driven adapter through rotary head or optionally by casing oscillator powered by the base carrier itself; Deep bored piles stabilized by drilling fluid or dry hole; Soil Displacement Piling System.


TR400-Technical Parameters
  Euro Standards U.S. Standards
Max drilling depth 110m 361ft
Max hole diameter 3000mm 118in
Engine model CAT C-15 CAT C-15
Rated power 302KW 405HP
Max torque 400kN.m 294920lb-ft
Rotating speed 6~23rpm 6~23rpm
Max crowd force of cylinder 400kN 89920lbf
Max extraction force of cylinder 400kN 89920lbf
Max stroke of crowd cylinder 12000mm 472in
Max pulling force of main winch 350kN 78680lbf
Max pulling speed of main winch 65m/min 213ft/min
Wire line of main winch Φ36mm Φ1.4in
Max pulling force of auxiliary winch 120kN 26976lbf
Undercarriage CAT365C CAT365C
Track shoe width 1000mm 39in
Width of crawler 3900-5500mm 154-217 in
Whole machine weight 110T




Main Features:

  • - High stability and quality original caterpillar base
  • - Compact powerful rotary head
  • - Emergency mode of operation for engine
  • - PCL controller for all electrically actuated functions,  colorful LCD display
  • - Mast support unit
  • - Original Patented driving structure of double motors and double reduces
  • - Controlled free-fall main and auxiliary winch
  • - Innovative enhanced electro-hydraulic proportional system
  • -Ease of transport and quickly assemblly


Our advantage


1. Manufactuer of the most complete series of small and medium rotary drilling rig.


2. Series drilling rigs have passed CE& ISO9001. GOST certification.


3. 30 people R&D team with an average of 15 years rich experience.


4. Oversea after-sales sevice and bulid up branchs in Singapore. Middle east. Africa and Euopre.


5. Provide customized services

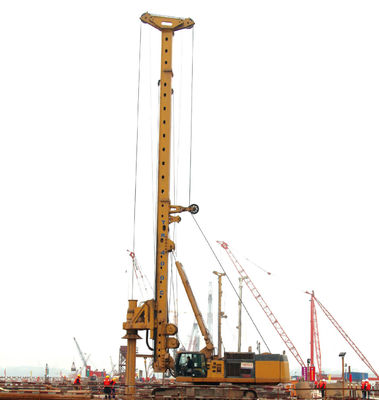

TR400 Heavy Construction Machine Bored Piling Equipment Hydraulic Earth Piling Rig 0
