100m Deep Hole Rotary Foundation Drill Rig TR368HW

Basic Information
Model Number: TR368Hw
Detail Information
High Light:

100m Rotary Foundation Drill Rig


Deep Hole Rotary Foundation Drill Rig

Product Description

TR368Hw is a classic deep hole drilling rig, which is the latest generation product developed for medium and large pile foundations. The maximum pressure can reach 43 tons, which can meet the requirements of the full casing construction method. it is suitable for urban engineering and pile foundation engineering of medium and large bridges.

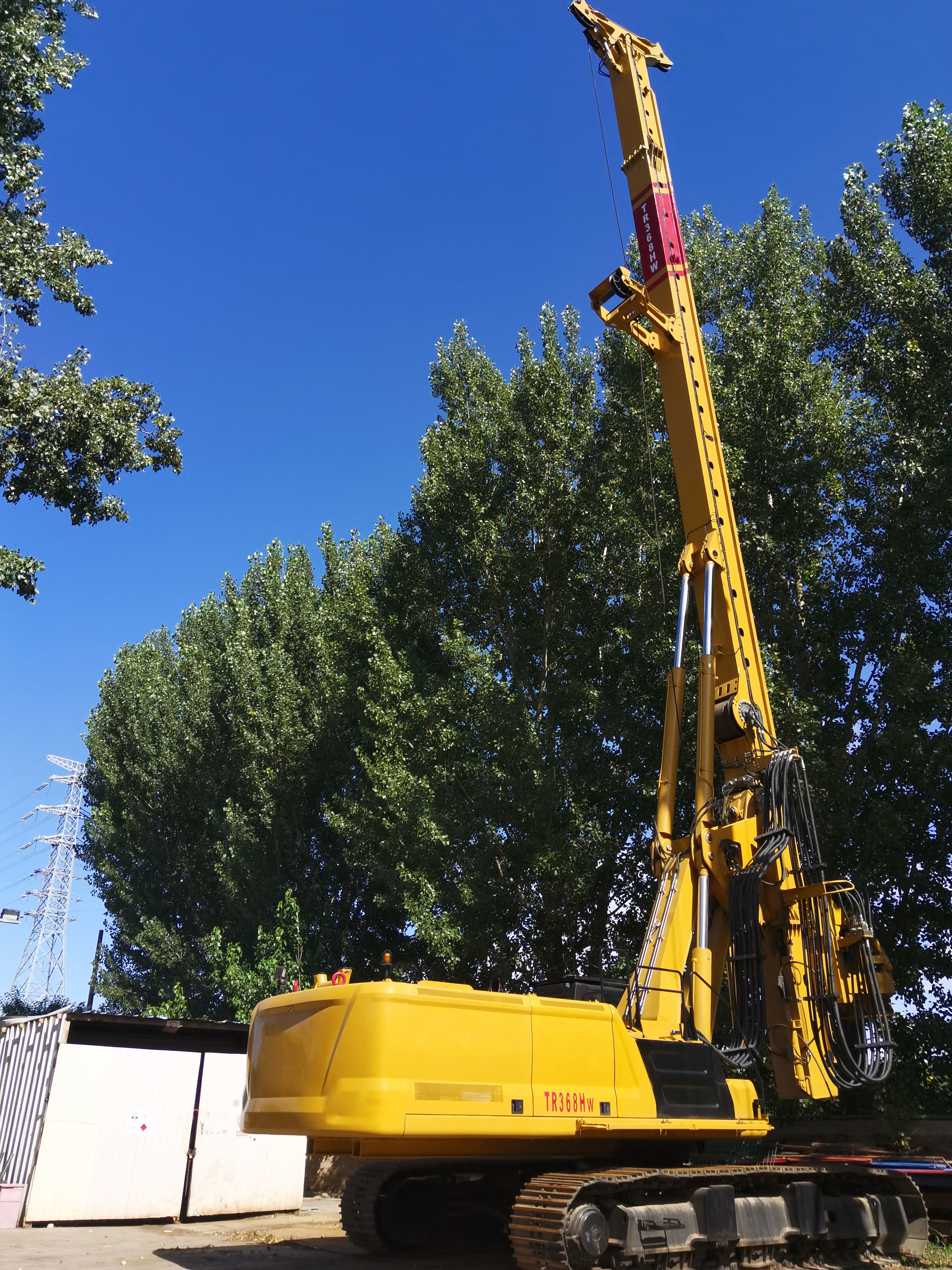

100m Deep Hole Rotary Foundation Drill Rig TR368HW 0



  1. ALL-electric control technology

Innovative design of the industry’s first all-electric control technology, which is controlled by electrical signals throughout the entire process, subverts the traditional control method of rotary drilling rigs, and possesses super-generation technical advantages.

  1. Core component upgrade

A new layout of the vehicle structure; The latest Carter rotary excavator chassis; A new generation of rotary heads, high-strength tension resistant drill pipes resistant drill pipes; hydraulic components such as main pumps and motors are all equipped with large displacement.

  1. Positioning high-end

Guided by marker demand and guided by technological innovation, it is positioned to develop high-quality pile foundation construction machinery to solve the problems of low construction efficiency, high construction cost and severe pollution of ordinary drilling rigs, and to provide high-end quality products for construction enterprises.

  1. Smart solutions

­­It is positioned to provide customers with overall construction solutions, especially in complex application environments and geological conditions, to improve the construction revenue of construction projects and achieve win-win cooperation with customers. Realize win-win cooperation with customers.


Main parameters Parameter Unit
Max. drilling diameter 2500 mm
Max. drilling depth 100/65 m
Rotary drive
Max. output torque 370 KN-m
Rotary speed 6~23 rpm
Crowd system
Max. crowd force 430 KN
Max. pulling force 430 KN
Stroke of crowd system 9000 mm
Main winch
Lifting force (the first layer) 370 KN
Wire-rope diameter 36 mm
Lifting speed 73/50 m/min
Auxiliary winch
Lifting force (the first layer) 110 KN
Wire-rope diameter 20 mm
Mast inclination angle
Left/right 5 °
Forward 5 °
Chassis model CAT345GC
Engine manufacturer 卡特彼勒CAT CATERPILLAR
Engine model C-9.3B
Engine power 259 KW
Engine speed 1750 rpm
Chassis overall length 5988 mm
Track shoe width 800 mm
Tractive force 680 KN
Overall machine
Working width 4300 mm
Working height 25898 mm
Transport length 17860 mm
Transport width 3000 mm
Transport height 3748 mm
Total weight (with kelly bar) 100 t
Total weight (without kelly bar) 83 t


Specification for standard Kelly bar

Friction Kelly bar: ∅530-6*18 Interlock Kelly bar: ∅530-4*18


Specification for special Kelly bar

Interlock Kelly bar: ∅530-4*19


100m Deep Hole Rotary Foundation Drill Rig TR368HW 1100m Deep Hole Rotary Foundation Drill Rig TR368HW 2
