CQUY800 Hydraulic Crawler Crane 80Ton Lattice Boom Crane /Max Boom Length13-58m

Basic Information
Place of Origin: China
Brand Name: SINOVO
Certification: CE/GOST/ISO9001
Model Number: CQUY800
Minimum Order Quantity: 1 unit
Packaging Details: Export package
Delivery Time: 7-10 Work days
Payment Terms: T/T&L/C
Supply Ability: 30 units per month
Detail Information
Model: CQUY800 Max.rated Lifting Capacity : 80t
Max. Rated Capacity*Working Range: 80*4=320t Length Of Standard Boom: 13-58m
Length Of Fixed Jib: 9-18m Max.length Of Boom Plus Fixed Jib: 49+18m
Boom Angle: 30-80° Output Rating Of Diesel: Cummins QSL-9 209KW/2000rpm
Counterweight: 25.2t
High Light:

Hydraulic Truck Crane

,

crawler crane


Product Description

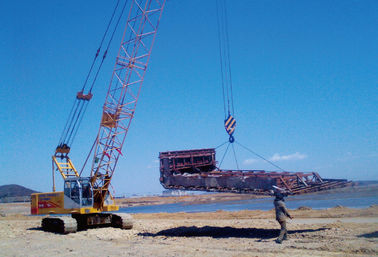

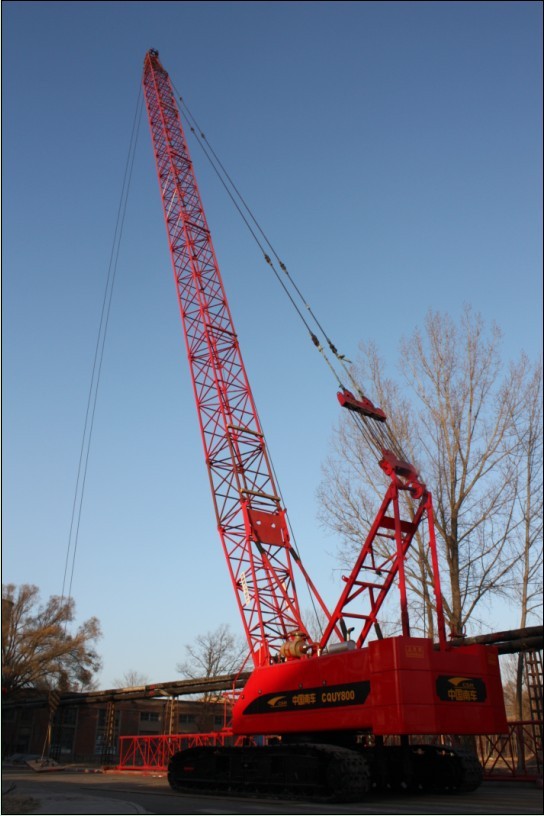

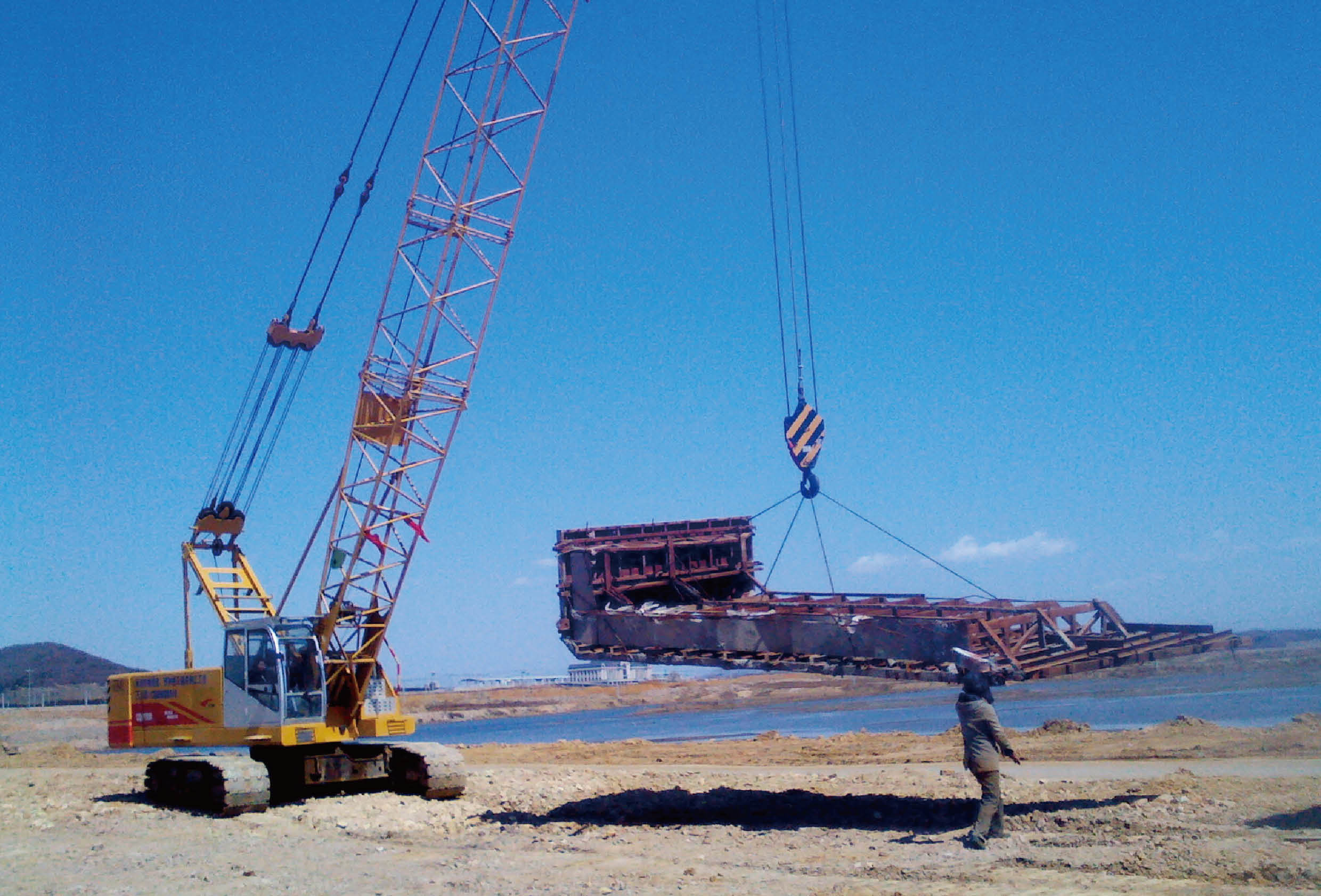

CQUY800 Hydraulic Crawler Crane 80Ton Lattice Boom crane /Max Boom Length13-58m



CQUY800 Hydraulic Crawler Crane
CQUY800 hydraulic crawler crane has strong hoisting capacity, big lifting weight, good anti-slip property, lower roadbed requirement. which is widely used for the big factory construction working such as petrochemical industry, electricity, metallurgy, chemical industry and nuclear energy.



Technical Data
Model: CQUY800
Max.rated lifting capacity:80t
Maximum rated capacity ×Working range80×4=320t

Main performance

Unit

Data

Length of standard boom

m

13~58

Length of fixed jib

m

9~18

Max.length of boom plus fixed jib

m

49+18

Boom angle

º

30~80

Working speed

Rope speed

Hoist

m/min

High 116/58

Low 80/40

Lower

m/min

High 116/58

Low 80/40

Boom rise

m/min

54

Boom lower

m/min

54

Swing speed

r/min

High 3 Low 1.8

Travel speed

km/h

1.3

Main lifting multiplying power

9

Max. single line pull

18t

Grade ability

%

30

Output rating of diesel

KW/r/min

Cummins QSL-9

209KW/2000

Whole machine mass (with basic boom)

 t

83

Average ground pressure(with basic boom)

MPa

0.0828

Average ground pressure(with the longest main boom)

0.088

Average ground pressure (with the longest boom plus fixed jib)

0.088

Counterweight

t

25.2



Main technical features
  • CQUY800 hydraulic crawler crane adopts Cummins QSL-9 Diesel Engine, up to Euro III emission standard, with advantages of the reliable power and economy.
  • Key components adopt famous international brands; main pump, motor are from Rexroth, hydraulic pipe and joints are from USA’s Parker.
  • Both the main and the auxiliary lifting winch has equipped with unique free fall function. The max pull capacity in single lay can achieve 18t. Service grade designed according to M7 level, both winches can be worked simultaneously with less fuel consumption and more effective operation.
  • Open-type pump-controlled variable system, constant power control, independent heat dissipation.
  • Through the composition of different booms, the length of the main arm could reach 58m, and it could install 13.5m, accessory booms when the length is 52m and could install 18m accessory boom when the length is 49m.
  • Telescopic chassis structure can improve the stability and be easy for transportation. The truck frame and the under frame adopt plug-in connection, which is easy to assembly. The transportation weight of the parts is light; the transport weight of largest part is not more than 28t, which is convenient for transportation.
  • The new type cab with the wide views, which is equipped with top grade seat, and air-conditioning system, Car-DVD system, provides driver comfortable operation and pleasured working environment.
  • To realize belt-loading move on account of the powerful traction.
  • Equipped good quality steel wire rope and lengthens the service life.
  • Advanced Swing float function makes operation more steadily and safety.
  • The single sheaved block is equipped to realize light and quick lifting, which improves the work efficiency.

In order to meet the market demands and improve product's cost performance, our company designed the crawler crane for the high-end users based on the many years of construction machinery’s production experience. This product has a good lifting performance, 360° turning and telescopic crawler. The length of main boom is 13—58m, length of fixed auxiliary boom is 9—18m.
