VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile

China VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile supplier
VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile supplier VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile supplier VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile supplier

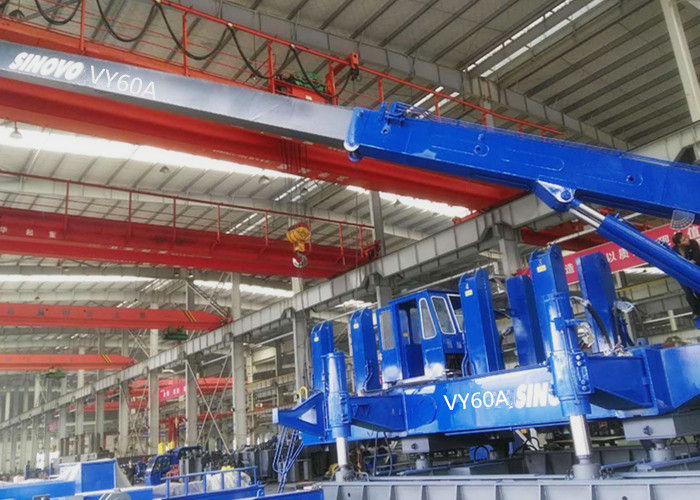

Large Image :  VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile

Product Details:

Place of Origin: CHINA
Brand Name: sinovo
Certification: CE/GOST/ISO9001
Model Number: VY60A

Payment & Shipping Terms:

Minimum Order Quantity: ONE UNIT
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Contact Now
Detailed Product Description
Color: Blue Brand: SINOVO
Lifting Mechanism: Four



VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile





VY60A Hydraulic Static Pile Driver with blue color is a new pile foundation , using the powerful static pressure of the oil produced, smooth and quiet pressing prefabricated pile fast sinking. high efficiency when pressed pile foundation.  VY60A Hydraulic Static Pile Driver has been widely used in many areas, especially in coastal urban construction and transformation of the old pile.



   Main element of VY60A Hydraulic Static Pile Driver

  • Piling Platform
  • Side Piling Equipment
  • Lifting Mechanism
  • Crane
  • VY60A Blue Hydraulic Static Pile Driver , pile foundation machine with Fast Pile Driving Pile

Main Technical Parameter



Model: VY60A





Parameter


Max. piling pressure(tf) 60

Max. piling

speed (m/min)

Max 5.24
Min 1.8
Piling stroke (m) 1.5

Move

stroke (m)

Longitudinal Pace 1.6

Horizontal

Pace

0.4
Slewing angle(°) 12
Rise stroke (mm) 650

Pile type

(mm)

Square pile F200-F300
Round pile Ø200-Ø300
Min. Side Pile Distance(mm) 350
Min. Corner Pile Distance(mm) 470
Crane Max. hoist weight (t) 5
Max. pile length (m) 10
Power(kW) Main engine 22
Crane engine 7.5

Overall

Dimension

(mm)

Work length 6000
Work width 3700
Transportation height 3000
Total weight (t) 62
