| Brand Name: | SINOVO |
|---|---|
| Model Number: | SD-150 |

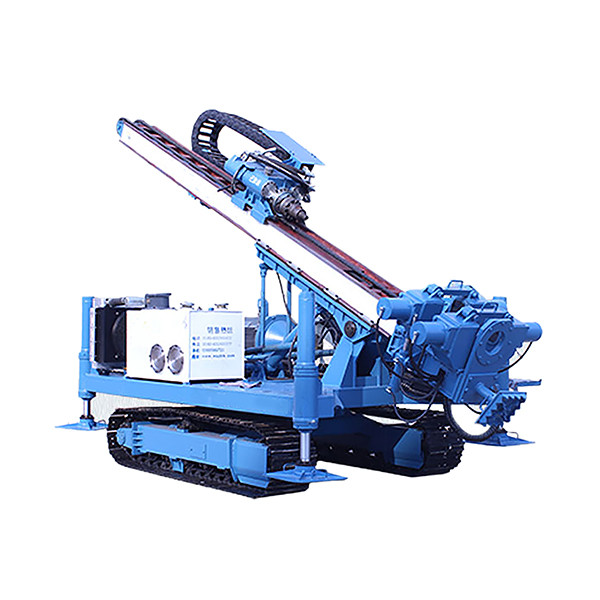

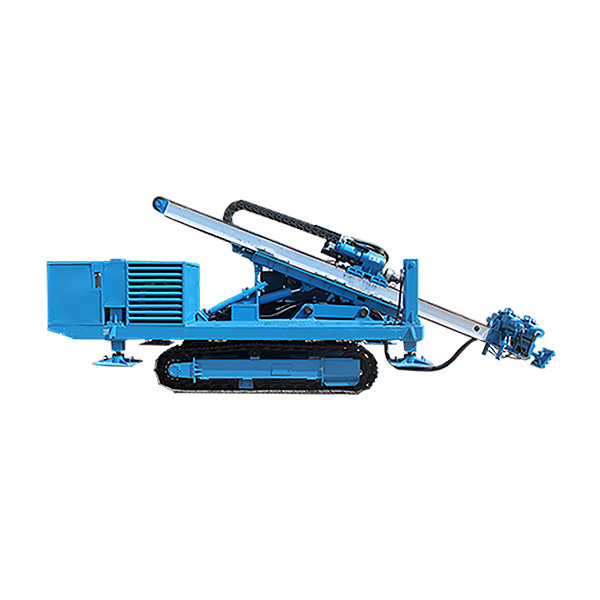

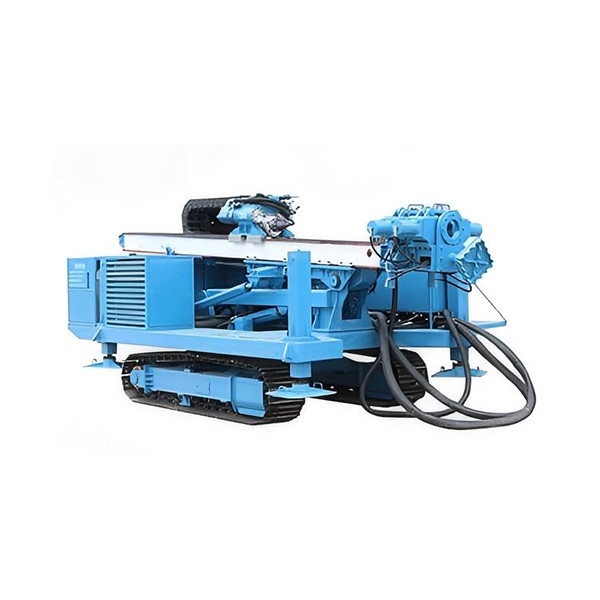

SD-150 Deep Foundation Crawler Drilling Rig is a high efficiency drilling rig mainly for anchoring, jet-grouting and dewatering, which is well designed and produced by Sinovo Heavy industry Co., Ltd.This series of drilling rig is all-hydraulic operated drill in accordance with the construct requirements of subway, high-rise building,airport and the other deep foundation pit.
Main characters:
1. The maximum speed is up to 170r/min; and comparing to SD-135, the speed has increased by 20%.When construct on soil, using twist drill can make the drilling efficiency more impressive.
Based on different stratum, we can adjust torque and rotary speed of drilling rig to increase drilling rig’s adaptability.At the same time, we can adjust torque and rotary speed according client's request.
With the crawler, it has the following technical features: fast mobility, accurate location, time saving, good reliability and stability. It can also reduce labor intensity and increase efficiency after equipping the clamping and breaking device .
Our R&D department also develops relative drilling tools to meet the following construction technology:
1. Anchor;
2. Jet-grouting;
3. Mud Positive circulating Drill;
4. DTH hammer impact Drill by Air;
5. DTH hammer Impact Drill by Water;
6. Multi-liquid Reverse Circulating Drill.
| Specifications | SD-150 |
| Hole diameter(mm) | ф150~ф250 |
| Hole depth(m) | 130~170 |
| Rod diameter(mm) | ф73,ф89,ф102,ф114,ф133,ф146,ф168 |
| Hole angle(°) | 0-90 |
| Output speed of rotary head(max)(r/min) | 170 |
| Output torque of rotary head(max)( N.m) | 7500 |
| Stroke of rotary head(mm) | 3400 |
| Stroke of slide flame(mm) | 900 |
| Lifting force of rotary head(kN) | 70 |
| Lifting speed of rotary head(m/min) | 0~5/7/23/30 |
| Feeding force of rotary head(kN) | 36 |
| Feeding speed of rotary head(m/min) | 0~10/14/46/59 |
| Input power(Electromotor)(kW) | 55+22 |
| Dimension(L*W*H)(mm) | 5400*2100*2000 |
| Weight(kg) | 6000 |
