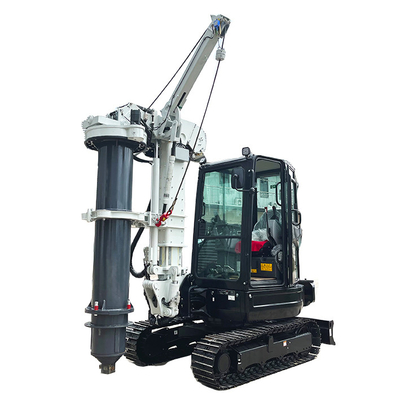

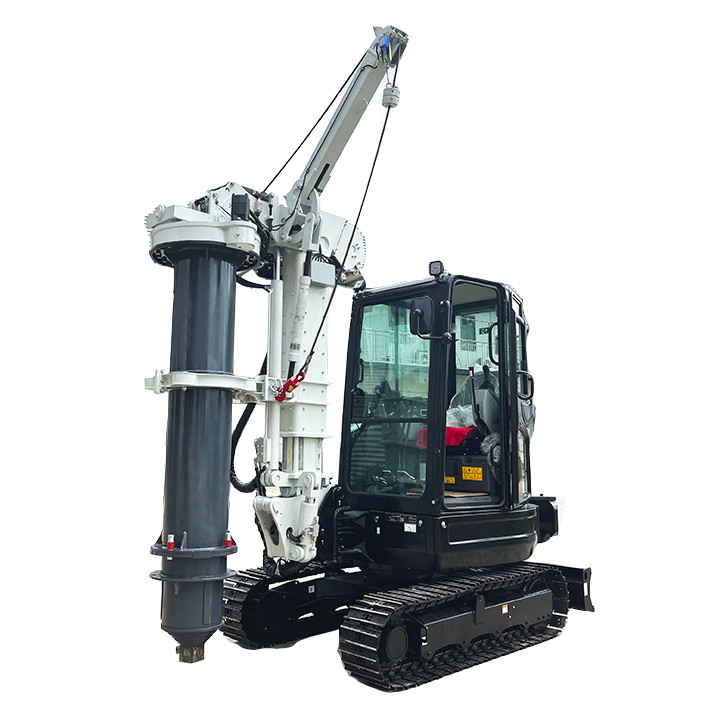

TR10 Rotary Drilling Rig with 10kNm Torque and 800mm Hole Diameter

TR10 Rotary Drilling Rig with 10kNm Torque and 800mm Hole Diameter
TR10 Rotary Drilling Rig with 10kNm Torque and 800mm Hole Diameter
TR10 Rotary Drilling Rig with 10kNm Torque and 800mm Hole Diameter
Basic Information
Brand Name: SINOVO
Document: TR10 Rotary Drilling Rig 20....5.pdf
Get Best Price Contact Now
Detail Information
Highlight:

TR10 Rotary Drilling Rig

Product Description

TR10 Rotary Drilling Rig
Technical Specifications
Model TR10
Max diameter of drilling hole 800mm
Maximum depth 12m
Min diameter of drilling hole 400mm
Diameter Ø377mm
Chassis Specifications
Chassis type Sany (base weight 3.5T)
Engine Yanmar 3TNV88
Rated power / rpm 20.4KW / @2000rpm
Fuel tank capacity 50L
Inside of Cab noise level 69(dB)
Noise level 98(dB)
Hydraulic System
Main pump flow 88L/min
Hydraulic system working pressure 280bar
Max pressure of hydraulic system 315bar
Hydraulic tank capacity 40L
Machine Dimensions
Whole machine width 1680mm
Length of machine 3516mm
Transport height 2736mm
Track length 2155mm
Track plate width 300mm
Total weight (excluding bucket) 6T
Travel speed 4.4Km/h
Traction 36.8kN
Rotary Head Specifications
Rotary head type Double motors
Maximum torque 10kNm
Maximum rotation speed 26 rpm
Spinoff speed 48rpm
Winch Specifications
Main winch
Pull force of 1st layer 20kN
Maximum lifting and lowering speed 40m/min
Wire rope diameter 12mm
Auxiliary winch
Pull force of 1st layer 10kN
Maximum lifting and lowering speed 40m/min
Wire rope diameter 12mm
Mast Specifications
Mast expansion Mast telescopic cylinder two sections
Feeding force 30KN
Pull up force 35KN
Swing Angle of mast Front 4° Back 2° Left and right Angle 5°
Stroke 1100mm
Headroom Specifications
Maximum working height 3950mm
Minimum working height 3500mm
TR10 Rotary Drilling Rig with 10kNm Torque and 800mm Hole Diameter 0 TR10 Rotary Drilling Rig with 10kNm Torque and 800mm Hole Diameter 1 TR10 Rotary Drilling Rig with 10kNm Torque and 800mm Hole Diameter 2
Note: Product technology changes are subject to change without prior notice
