VY Series Hydraulic Static Pile Driver , powerful construction pile driver

China VY Series Hydraulic Static Pile Driver , powerful construction pile driver supplier
VY Series Hydraulic Static Pile Driver , powerful construction pile driver supplier VY Series Hydraulic Static Pile Driver , powerful construction pile driver supplier VY Series Hydraulic Static Pile Driver , powerful construction pile driver supplier VY Series Hydraulic Static Pile Driver , powerful construction pile driver supplier

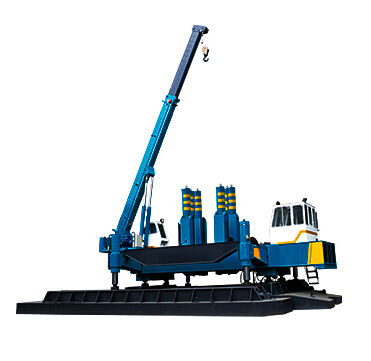

Large Image :  VY Series Hydraulic Static Pile Driver , powerful construction pile driver

Product Details:

Place of Origin: CHINA
Brand Name: sinovo
Certification: CE/GOST/ISO9001
Model Number: VY Series

Payment & Shipping Terms:

Minimum Order Quantity: ONE UNIT
Delivery Time: ON STOCK
Payment Terms: T/T&L/C
Contact Now
Detailed Product Description
Color: Blue Model Number: 14
Brand: SINOVO



VY Series Hydraulic Static Pile Driver , powerful construction pile driver



   VY series hydraulic static pile driver is a new pile foundation , using the powerful static pressure of the oil produced, smooth and quiet pressing prefabricated pile fast sinking. Easy operation, high efficiency, no noise and gas pollution, when pressed pile foundation, construction of soil disturbance small scope and extent of control for easy operation, good construction quality and other characteristics. VY series hydraulic static pile driver has been widely used in many areas, especially in coastal urban construction and transformation of the old pile.



   Sinovo Hydraulic Static Pile Driver enjoys the common feafures of pile dirver such as high efficiency,energy saving, environmental-friendly and so on. Besides, we have more unique technique characteristics as following:



  • Unique design of clamping mechanism for each jaw to be adjusted with the shaft bearing surface to ensure the largest contact area with the pile,avoid damaging the pile.
  • Unique design of side/corner piling structure, improves the capacity of side/corner piling,the pressure force of side/corner piling up to 60%-70% of main piling. The performance is much better than hanging side/corner piling system.
  • Unique clamping pressure-keeping system can automatically fill in the fuel if the cylinder leak oil,ensuring high reliability of clamping pile and high quality of construction.
  • Unique terminal pressure-stabilized system ensures no float to the machine at rated pressure,greatly improving the safety of operation.
  • Unique walking mechanisim with lubrication cup design could realize durable lubrication so as to extend serivice life of rail wheel.
  • Constant & high flow power hydraulic system design ensures high piling efficiency.

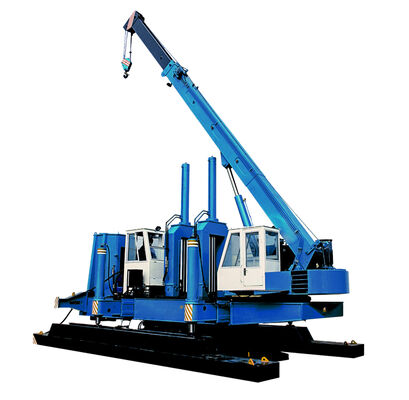

  • VY Series Hydraulic Static Pile Driver , powerful construction pile driver

Main Technical Parameter



Model



Parameter

VY

60A

VY

80A

VY

120A

VY

180A

VY

240A

VY

320A

Max. piling pressure(tf) 60 80 120 180 240 320

Max. piling

speed (m/min)

Max 5.24 5.24 4.26 5.5 6.7 6.8
Min 1.8 1.37 1.5 2 0.91 0.93
Piling stroke (m) 1.5 1.5 1.5 1.6 1.6 1.6

Move

stroke (m)

Longitudinal Pace 1.6 1.6 1.6 2.2 3 3.6

Horizontal

Pace

0.4 0.4 0.4 0.5 0.6 0.6
Slewing angle(°) 12 12 12 12 12 10
Rise stroke (mm) 650 650 700 700 900 1000

Pile type

(mm)

Square pile

F200

-F300

F200

-F350

F200

-F400

F300

-F500

Round pile

Ø200

-Ø300

Ø200

-Ø350

Ø200

-Ø400

Ø300

-Ø500

Min. Side Pile Distance(mm) 350 350 450 750 900 1000
Min. Corner Pile Distance(mm) 470 470 870 1200 1250 1250
Crane Max. hoist weight (t) 5 5 8 8 8 12
Max. pile length (m) 10 10 12 12 12 14
Power(kW) Main engine 22 22 22 37 45 60
Crane engine 7.5 7.5 22 22 22 30

Overall

Dimension

(mm)

Work length 6000 8000 8000 10000 10500 12500
Work width 3700 4280 4380 5380 6110 6280
Transportation height 3000 3000 3000 3000 3200 3200
Total weight (t) 62 82 122 182 242 322



                                                                                                     (TO BE CONTINUED)



Model



Parameter

VY

420A

VY

500A

VY

600A

VY

700A

VY

800A

VY

900A

VY

1000A

VY

1200H

Max. piling pressure(tf) 420 500 600 700 800 900 1000 1200

Max. piling

speed (m/min)

Max 6.2 6.2 6.65 6.65 5.04 9.98 9.98 7.54
Min 1.1 1.1 0.98 0.84 0.74 0.74 0.67 0.56
Piling stroke (m) 1.8 1.8 1.8 1.8 1.8 1.8 1.8 1.7

Move

stroke (m)

Longitudinal Pace 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6

Horizontal

Pace

0.6 0.6 0.6 0.7 0.7 0.7 0.7 0.7
Slewing angle(°) 10 10 8 8 8 8 8 8
Rise stroke (mm) 1000 1000 1100 1100 1100 1100 1100 1100

Pile type

(mm)

Square pile F300-F600 F400-F700
Round pile Ø300-Ø600 Ø400-Ø800
Min. Side Pile Distance(mm) 1400 1700
Min. Corner Pile Distance(mm) 1635 1950
Crane Max. hoist weight (t) 12 12 16 16 16 25 25 30
Max. pile length (m) 14 14 15 15 15 16 16 16
Power(kW) Main engine 74 111 119 119 119 135 135 135
Crane engine 30 30 30 30 30 45 45 45

Overall

Dimension

(mm)

Work length 12000 12500 13800 14000 14000 14500 14500 16000
Work width 7300 7800 8290 8290 8490 8910 8910 9430
Transportation height 3280 3280 3300 3360 3360 3390 3390 3390
Total weight (t) 422 502 602 702 802 902 1002 1202
